YoloLiv Instream Vertical All-in-one Portable Multi-Camera Monitor Switcher

$1,799.00
RRP $1,899.00
SAVE $100.00 (5%)
Only 1 Left!

or 4 payments of $449.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

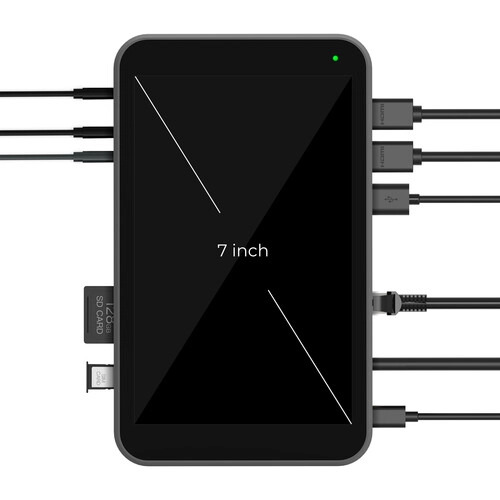

In addition to multi-cam streaming over a variety of platforms, the Instream allows you to add graphic overlays, picture-in-picture, chroma key, and use transition effects when switching camera inputs. Stream at up to 1080p60 using the H.264 codec and record to an optional SD card. Featuring a 7" LCD touchscreen display, two HDMI and one USB-A input, and one HDMI output for viewing your stream on a local device. The Instream doesn't neglect audio as it has a line-level audio input as well as mic input and a headphone jack for direct audio monitoring.

Touchscreen Control

The Instream provides you with a touchscreen interface for easy streaming and control.

Streaming Platforms

Major streaming platforms such as Instagram & TikTok are directly integrated in the Instream device. You can simply login to your social account and stream. The Instream supports RTMP and RTMPS streaming for compatibility with many livestreaming services.

Functions

The Instream works as a switcher with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Three Ways to Connect

  • Wi-Fi
  • 4G LTE
  • Ethernet

Overlays

  • You can brand your livestream by adding logos/watermarks/rolling captions
  • Customized PiP options allow you to bring a unique look and feel to your stream
  • Engage with your audience in real time via feature comment overlays
  • Supports Chroma Keying
  • Built-in lower-thirds & animated countdown templates can be edited or you can add your own

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

Use Only as a Monitor & Recorder

You can use the Instream, even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.

Battery

The 10,000mAh internal battery can power your Instream for approximately 3 hours. The Instream charges via the USB-C connection, which is used for power only.



Specs

IP Encoding/Decoding

IP Video H.264:
720 x 480 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Transport Protocols RTMP, RTMPS
Simultaneous Streams 1 Streams
Compatible Services Instagram, TikToK

Wireless

Wi-Fi 2.4/5 GHz

Cellular

SIM Card Slots 1 x Nano SIM

Interfaces

Video Connectors 2 x HDMI Input
1 x HDMI Output
Audio Connectors 1 x 1/8" / 3.5 mm TRS Stereo Analog Input
1 x 1/8" / 3.5 mm TRS Mono Analog Input
1 x 1/8" / 3.5 mm TRS Stereo Analog Output
Other I/O 1 x RJ45 10/100 Ethernet Input/Output
1 x USB Type-A USB 3.1 Gen 1 Input
Embedded Audio HDMI: 2-Channel

Internal Recording

Recording Media 1 x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Built-In Battery 10,000 mAh
Power Connector 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature 41 to 104°F / 5 to 40°C
Display LCD
Dimensions 188 x 112.5 x 25 mm
Weight 600 g

(YoloBoxInstream)

SKU YoloBoxInstream
Barcode # 664918139100
Brand YoloLiv
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.250m
Shipping Cubic 0.004000000m3
