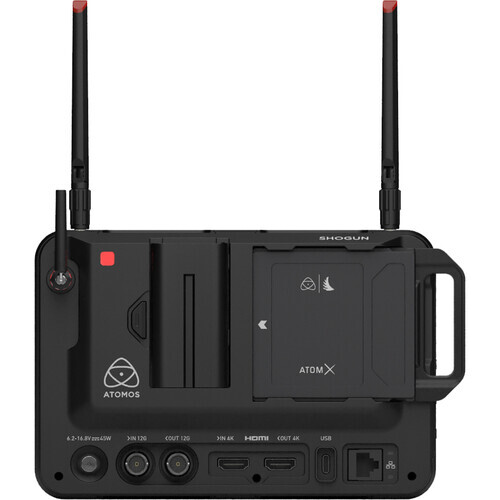

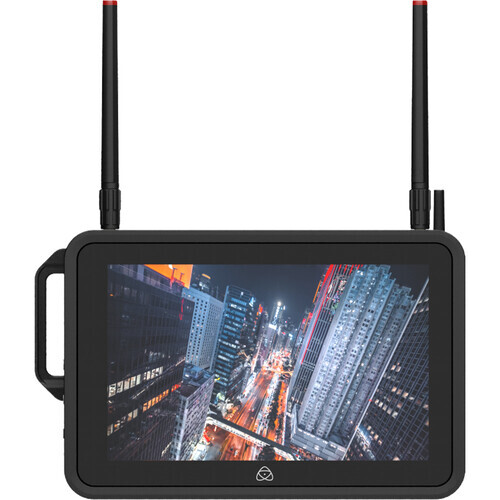

Atomos CONNECT for SHOGUN 7" Monitor

$2,099.00






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • 7" 1920 x 1200 Touchscreen Display
  • 2000 cd/m² Brightness
  • 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C
  • Records up to 4K Video
  • Adobe Frame.io Camera to Cloud Support
  • Wi-Fi 6, Bluetooth LE, Gigabit Ethernet
  • Dual Recording Capabilities, Streaming
  • Power via DC Input or L-Series Battery

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease.

Adobe Frame.io support makes the Shogun CONNECT a camera to cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.

CONNECT Upgrades

  • Features a new, brighter HDR screen and range of built-in interfaces
  • Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras
  • ATOMOS AirGlu technology enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock

Streaming Capabilities

  • Supports livestreaming to Facebook Live, Twitch, and YouTube
  • Built-in Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and the ability to join cellular hotspots

Camera to Cloud Device

  • Fully integrated Frame.io camera to cloud device
  • With support of HDMI and SDI equipped cameras, it offers advanced online workflows and remote collaboration between filmmakers
  • Record, monitor, and share your work from one device

Dual Recording

  • Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously
  • Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording

Shogun Control

  • Auto HDMI trigger supports Canon, Sony, Atomos Open Standard
  • Camera selectable SDI trigger
  • Serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable
  • Bluetooth LE control via AtomControl App for monitor assist functions
  • Wireless RF AirGlu remote start/stop trigger

Monitor Assist Functions

  • 3D LUT
  • Anamorphic de-squeeze
  • Cine frame guides
  • Display flip
  • False color
  • Focus peaking
  • Frame grab
  • Grid markers
  • Isolate color channel
  • Onion skin overlay
  • RGB parade
  • Safe areas
  • Social frame guides
  • Vectorscope
  • Waveform
  • Zebra
  • Zoom

What's in the box:
1 x Atomos CONNECT Module,

1 x Antenna mount plugs AtomX SSDmini Handle,

1 x Master Caddy III with screws, WIFI Antenna with Black caps,

2 x RF antenna, Antenna Pouch,

1 x 3.5mm audio jack to jack cable

(436812)

SKU 436812
Barcode # 814164022712
Brand Atomos
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.007500000m3
