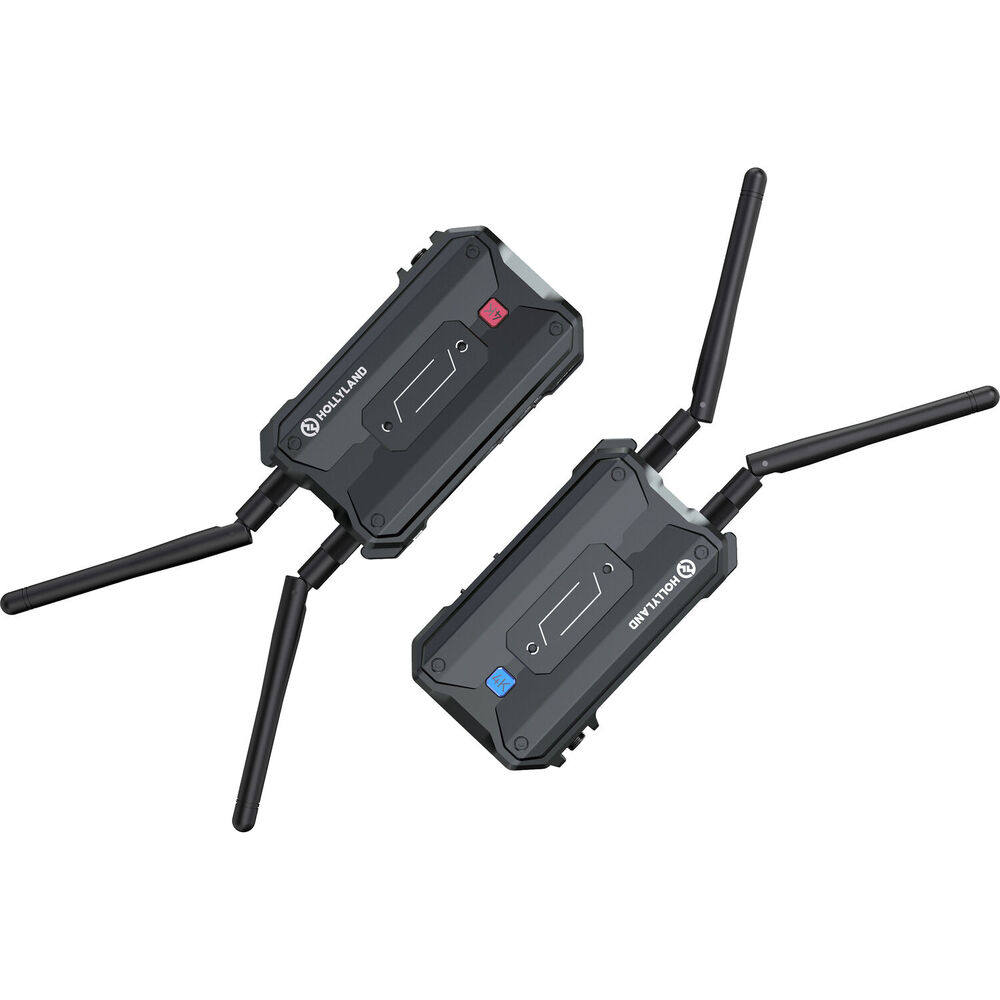

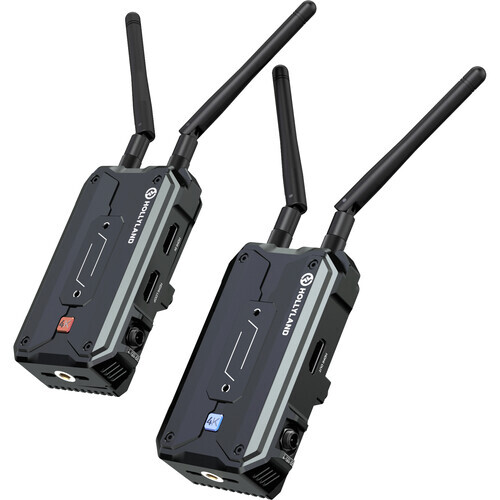

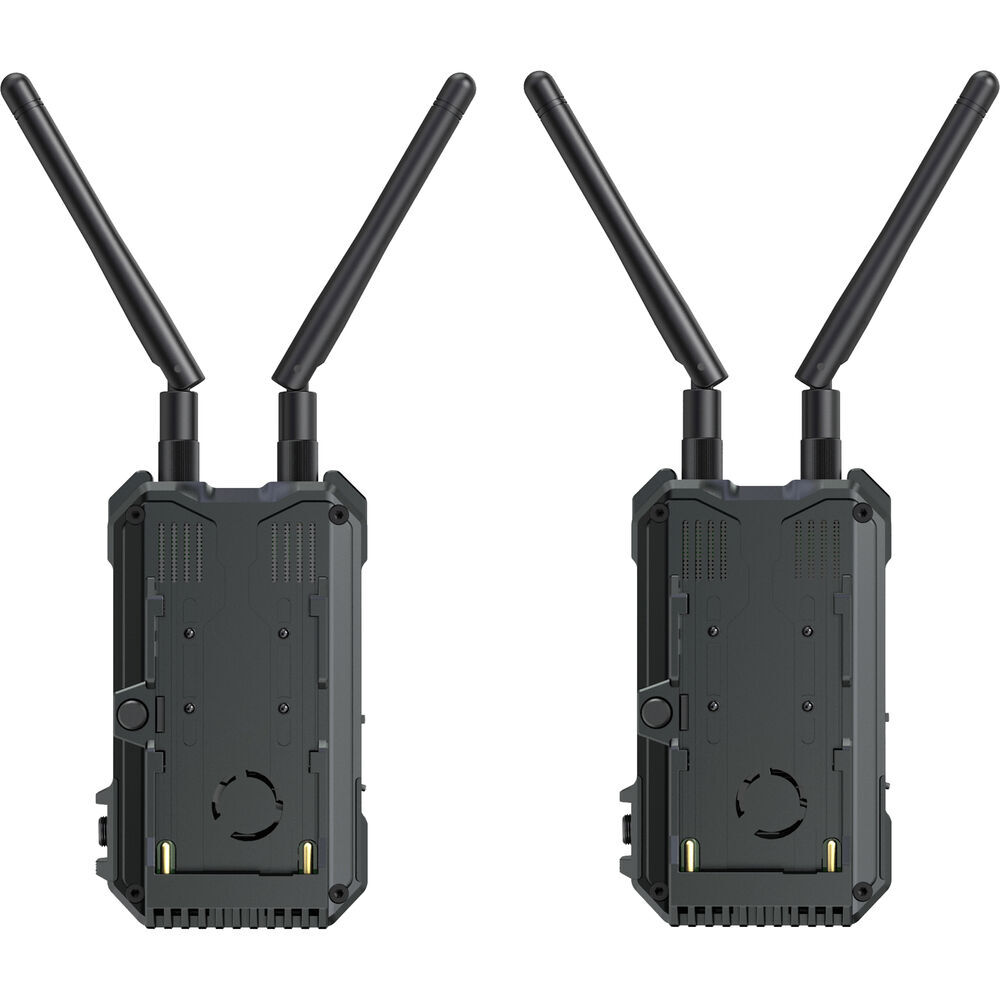

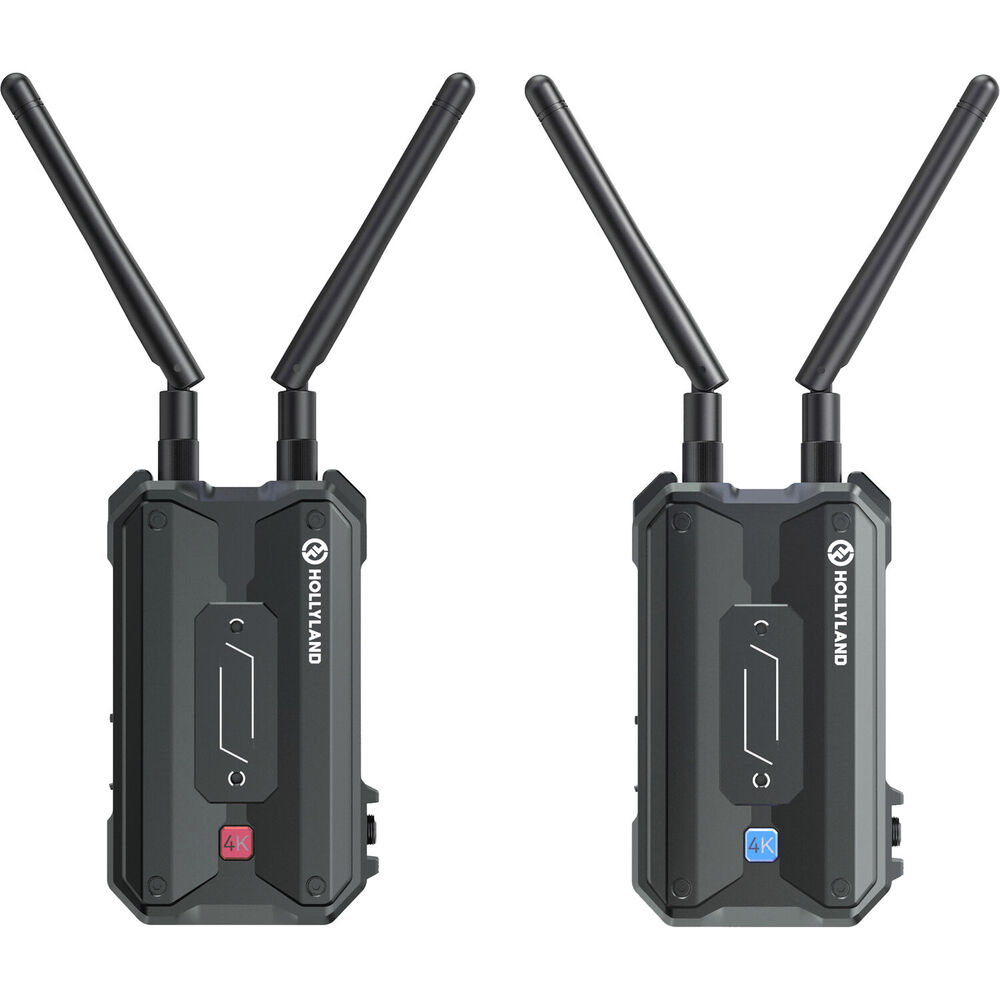

Hollyland Pyro - H 4K HDMI Wireless Video Transmission System

Calculate Shipping

Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

Wireless Transmitter and Receiver Set
Transmit UHD 4K30 Video up to 400m
HDMI Input, Output, and HDMI Loop Output on TX
2.4 and 5 GHz Frequency Bands
Supports UVC Plug-and-Play for Streaming
200m Transmission in Broadcast Mode
Smart Channel Scanning, Bright LCD
Low 60 ms Latency, 12 Mb/s Bit Rate
Power Options: DC, L-Series, and USB-C

Each Pyro H unit is equipped with a USB-C port that can power the unit and also supports plug-and-play UVC operation, so it can seamlessly plug into a computer and utilize the wireless video for streaming and conferencing applications. A built-in frequency scanner allows you to select the clearest frequency for your transmission and features a bright LCD for configuration. In addition to the multifunction USB-C port, each unit can be powered using a separately available locking DC power adapter or by using an L-series type battery using an optional battery plate.

Long Distance, High Quality

The Pyro H Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.

Strong Signal Strength

At a stable transmission range of up to 1300', the Pyro H features latency as low as 60ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro H excels with increased transmission distance while preserving video quality and minimizing latency. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mb/s and Smooth mode for a dynamic change in latency.

Crisp and Sharp Images

With up to 4K30 transmission capabilities, the Pyro H transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.

USB Video Class

UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.

Smart Channel Scan

Upon startup, Pyro H automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Easy Setup

The Pyro H supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.

Continuous Power, Multiple Options

In addition to DC input and NP-F batteries, the Pyro H also supports a USB-C power supply (5-12V). A USB power supply option provides convenience, especially when using stabilizers, as it eliminates the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.

Hollyland PYRO H Specs

Video I/O	Transmitter: 1x HDMI 1.4b Input Transmitter: 1x HDMI 1.4b Output Receiver: 1x HDMI 1.4b Output
Embedded Audio	HDMI
Latency	60 ms
Video Format	HDMI UHD 4K: 30/25/24 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Power Consumption	Transmitter: 7 W Receiver: 4 W
Mounting	1x 1/4"-20 Female

Inputs / Outputs

Antenna I/O	Transmitter/Receiver: 2x RP-SMA Female
Video I/O	Transmitter: 1x HDMI 1.4b Input Transmitter: 1x HDMI 1.4b Output Receiver: 1x HDMI 1.4b Output
Embedded Audio	HDMI
Audio I/O	No
Power I/O	Transmitter/Receiver: 1x Barrel Input
Encryption	No

Wireless

Wireless Range	1300' / 396.2 m (Line-of-Sight) 650' / 198.1 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	US: 5.15 to 5.25 GHz
Latency	60 ms
RF Power	23 dBm
RF Sensitivity	-85 dBm
Wi-Fi	Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS

Format Support

Video Format	HDMI UHD 4K: 30/25/24 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power

Input Power	6 to 16 VDC
Power Consumption	Transmitter: 7 W Receiver: 4 W

Mounting

1x 1/4"-20 Female

Environmental

Environmental Protection	No
Certifications	No

General

Dimensions	Transmitter/Receiver: 109 x 62.3 x 33.4 mm
Weight	Transmitter/Receiver: 192 g

(HL-Pyros-H)

SKU	HL-Pyros-H
Barcode #	6976068115243
Brand	Hollyland
Shipping Weight	1.0000kg
Shipping Width	0.230m
Shipping Height	0.110m
Shipping Length	0.160m
Shipping Cubic	0.004048000m3
