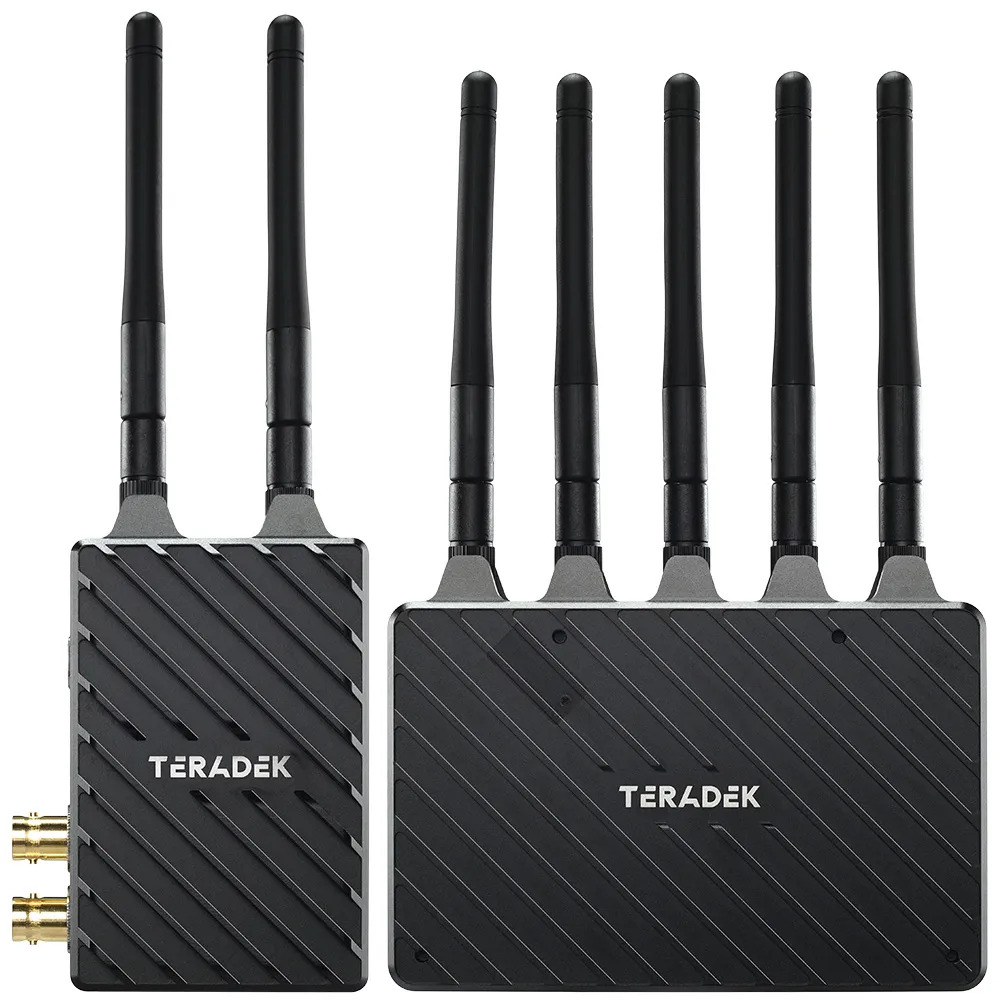

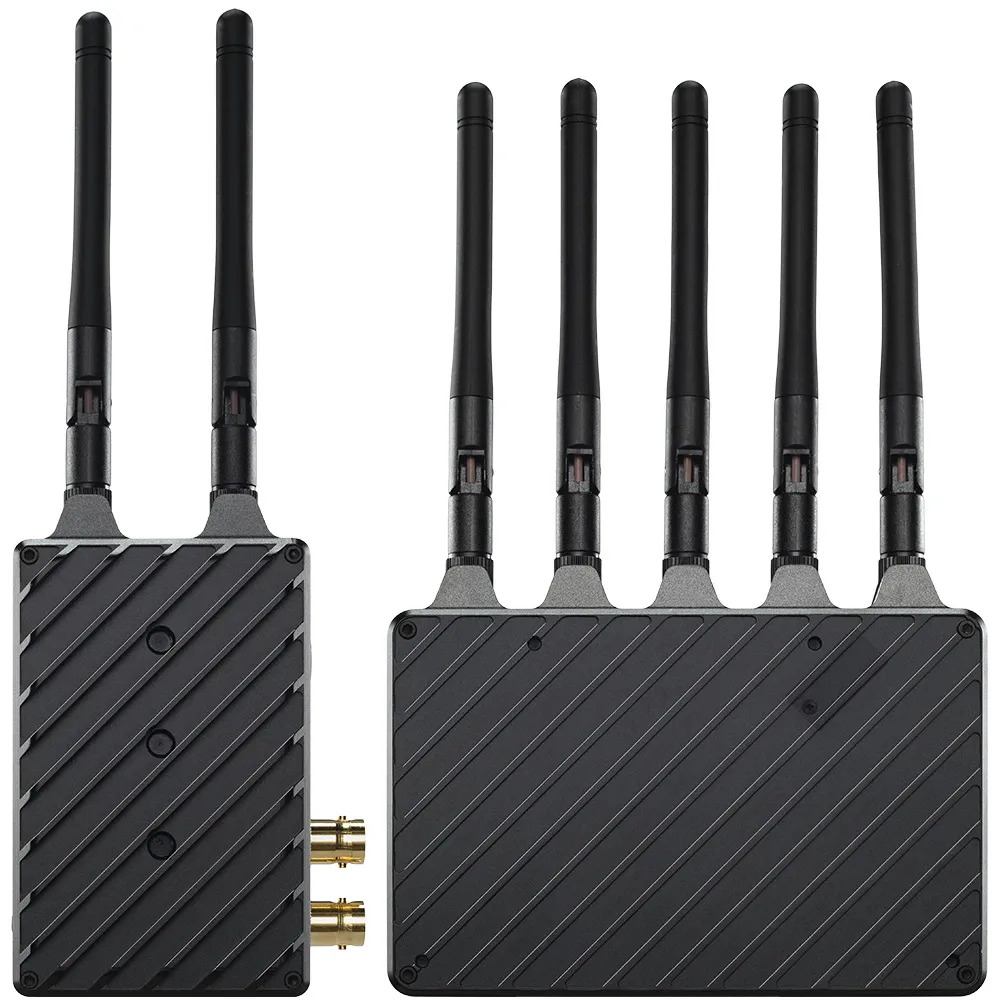

Teradek Bolt LT 750 4K Set

$5,895.00
RRP $5,995.00
SAVE $100.00 (2%)






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Zero-Delay 4K Wireless Video

Transmit and receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay (>0.001sec).

Transmitter:

Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)

Output: 1x 3G-SDI (up to 1080p60)

Receiver:

Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR

Supports Rec 2020 HDR in 10-bit 4:2:2 colour gamut. Send and receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate colour reproduction.

Improved Wireless Performance

Reliable signal transmission and reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers

Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting

TX Mounting: M3 / 1/4”-20

RX Mounting: M3 / 1/4”-20 / 3/8”x16

Universal Cross-Compatibility between all Bolt 4K Devices

Send and receive signals between any Bolt 4K series of devices for expanding workflow requirements.

Camera Metadata

Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS

Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyser and Wireless Health analysis tools.

Features:

  • 228m (750ft) Range
  • Wireless pairing in 2 seconds
  • 4K HDMI
  • 3G-SDI at 1080
  • 10-bit HDR Video
  • Transmitter + Receiver Set
  • Cross compatible with Bolt 4K
  • Zero Delay (<0.001 sec)



What's in the box:

  • 1 x Bolt 4K LT TX 750
  • 1 x Bolt 4K LT RX 750
  • 1 x Teradek Case L
  • 1 x Light Stand Adapter ¼”-20
  • 1 x Hot Shoe Adapter
  • 2 x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable - 18in
  • 1 x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) - 18in
  • 1 x Micro-USB (5pin) to USB Cable (Firmware Cable) - 36in
  • 2 x 3G-SDI (BNC to BNC) Cable - 10in
  • 1 x 18 Watt AC Adapter Cable (2-Pin Connector) - 6ft
  • 7 x TX/RX Antenna (2dBi WIFI 2.4/5.8GHz, Small)

(53.10-2200-V)

SKU 53.10-2200-V
Barcode # 818264025505
Brand Teradek
Shipping Weight 2.0000kg
Shipping Width 0.400m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.018000000m3
