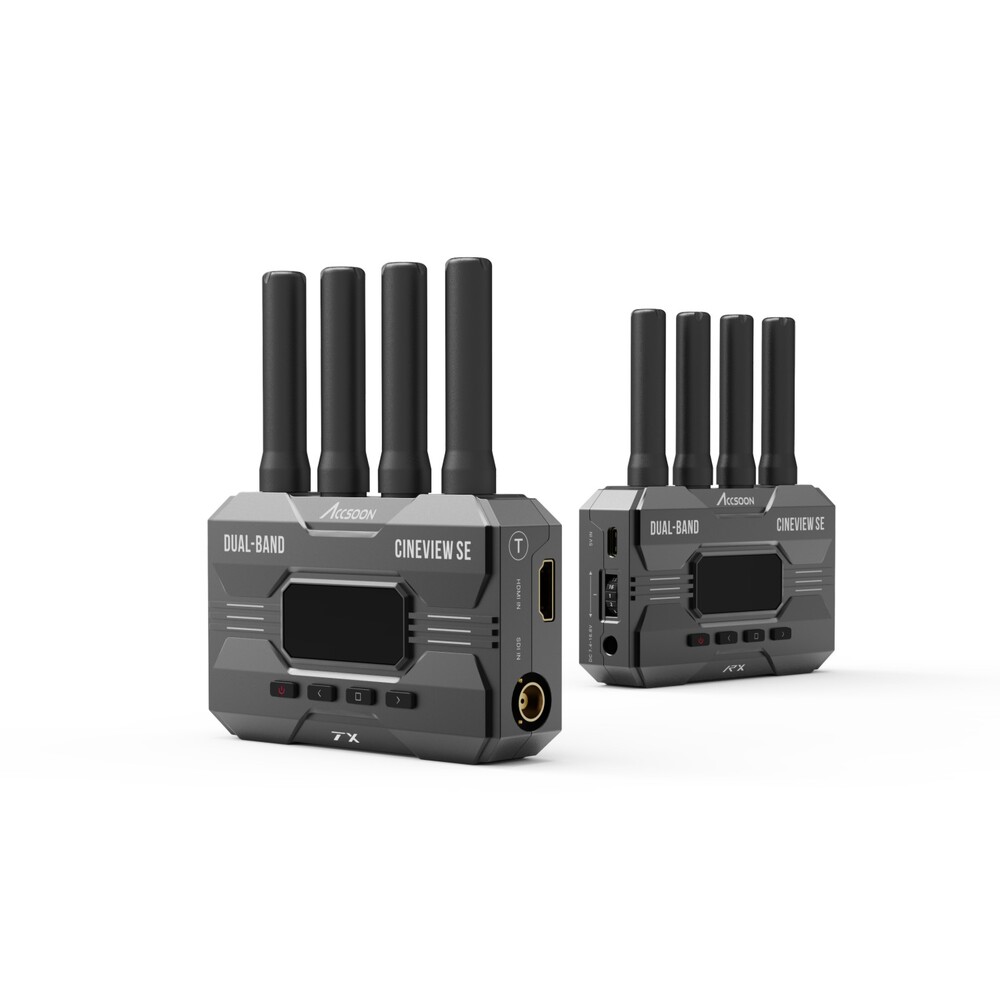

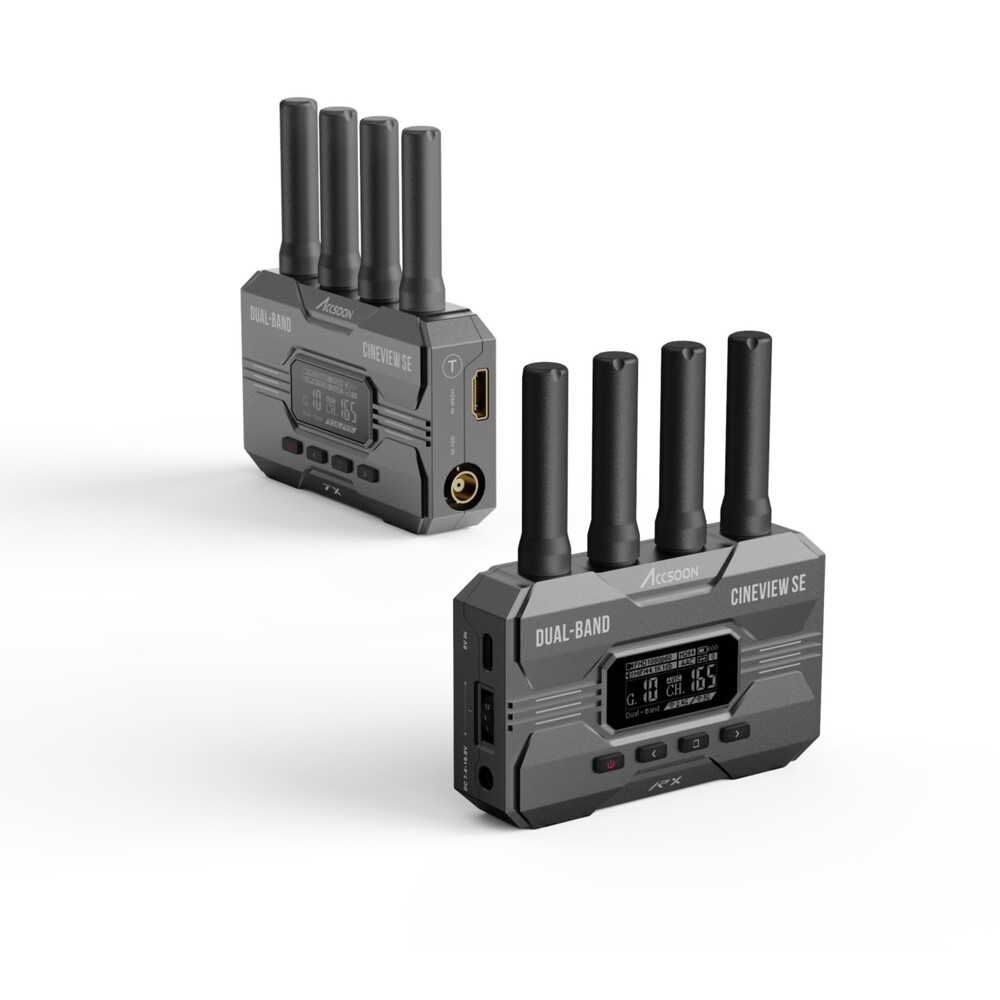

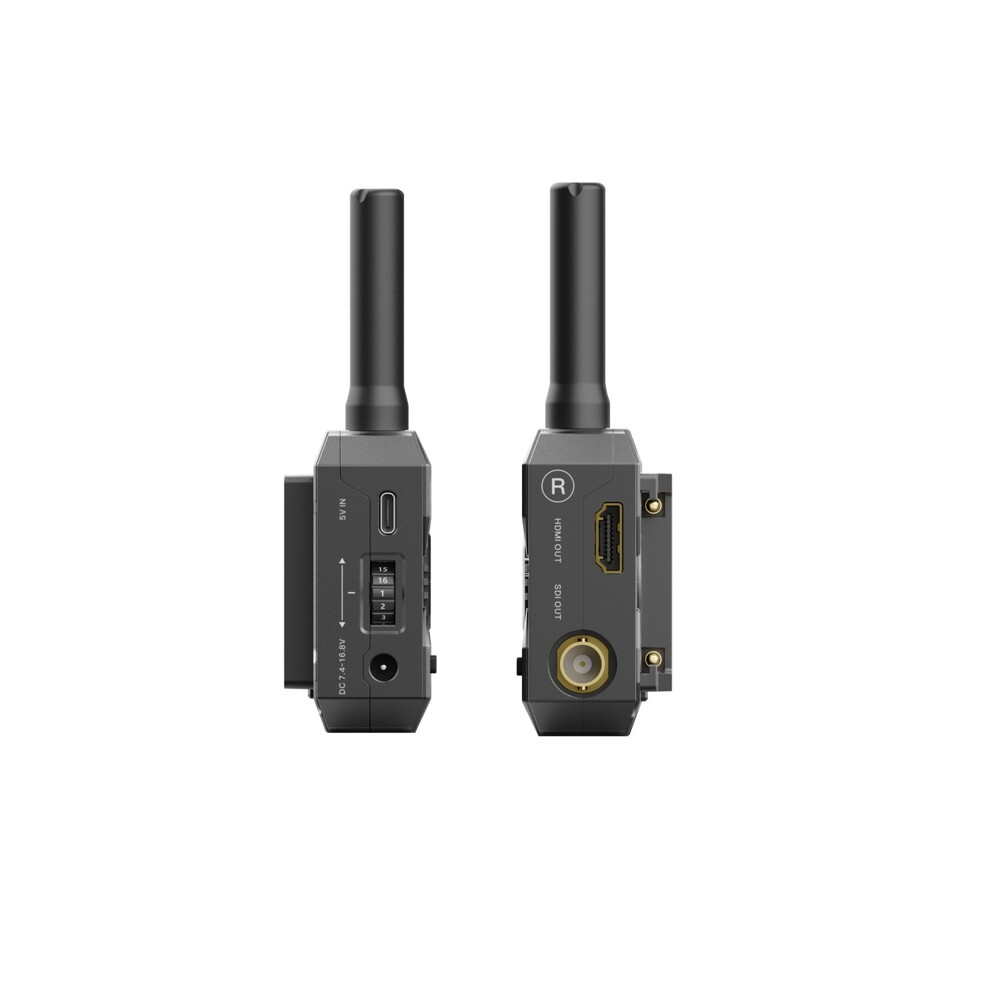

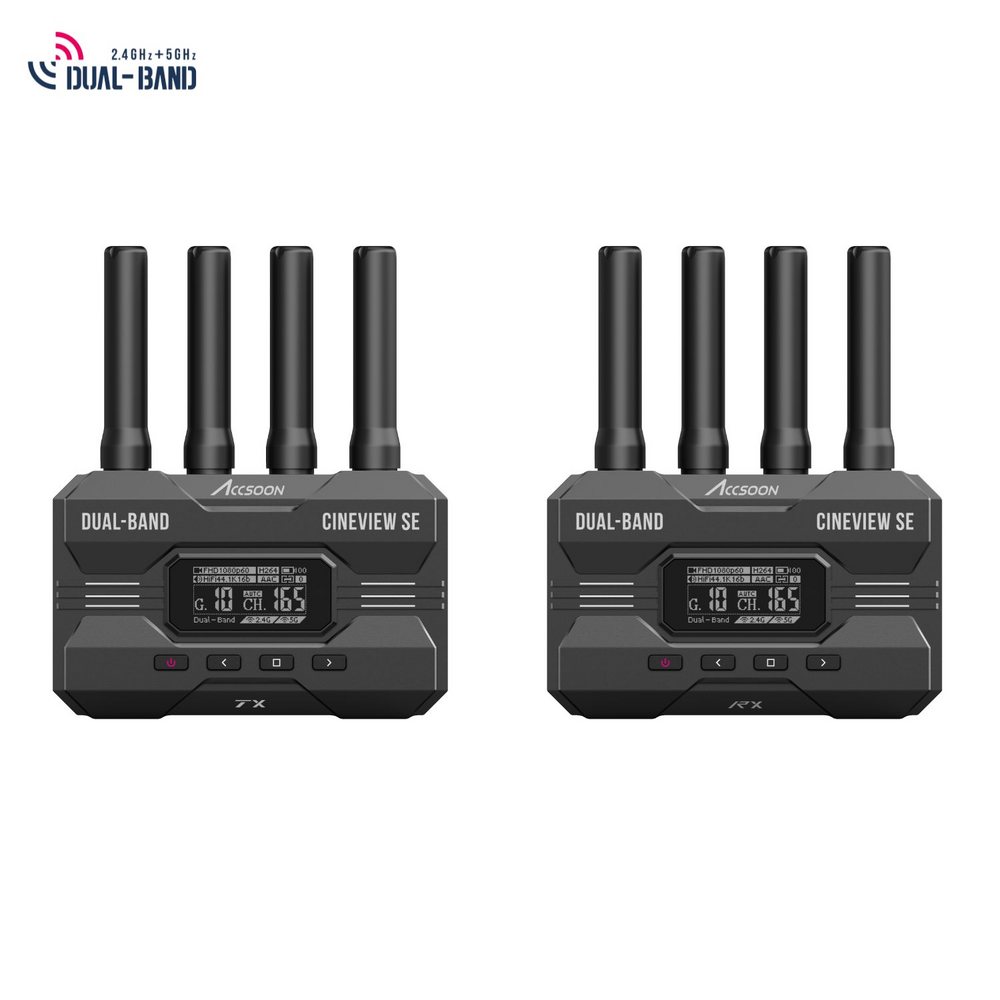

Accsoon CineView SE SDI/HDMI 365m Wireless Video Transmission System
FREEBIES! Buy Accsoon CineView SE SDI/HDMI 365m Wireless Video Transmission System Today & Choose From One Of These FREE Gifts!
Accsoon Carry Case for CineView Series Transmission Kit
Features:
CineView SE (WIT04-SE)
● Dual-band (2.4G + 5G) WiFi Simultaneous transmission, strong anti-interference
● Transmission range up to 1200ft
● Transmitter: SDI in + HDMI in, Receiver: SDI out + HDMI out
● Very low latency <0.05 seconds
● Transmit up to 4 devices (dedicated RXs and mobile devices, mix and match)
● Professional monitoring App for iOS and Android (upgradable), support (RTMP)
live-streaming direct via App
● Low 3.5W-4.5W power consumption, no fan noise
● 1.3 inch OLED display
● Power by DC source and NP-F battery and USB-C
● Automatic channel selection for optimal transmission
● Group pairing knob on TX & RX
| Specification | ||
| Transmitter | Receiver | |
| Video Input | SDI/HDMI | |
| Video Output | SDI/HDMI | |
| SDI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
|
| SDI Output Format | 1080p 24/25/30/50/60fps Level A |
|
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps | |
| HDMI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps | 1080p 24/25/30/50/60fps |
| DC Port | 5.5mmx2.1mm, center positive | |
| DC Voltage | 7.4~16.8V | |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM | |
| Latency | <0.05s (Camera latency not included) |
|
| OLED Display | 1.3 inch | 1.3 inch |
| Transmission Power | 17~20dBm | |
| Transmission Range | 1200ft (No obstacles, no interference) |
|
| Power Consumption | 4.5 Watt (Typical) |
3.5 Watt (Typical) |
| Operating Environment Temperature |
-10~40℃ | |
| Dimensions (Antennas Not Included) |
105mmx66mmx32mm | |
| Weight (Antennas Not Included) |
210g | 210g |
(WIT04-SE)
| SKU | WIT04-SE |
| Barcode # | 664918771751 |
| Brand | Accsoon |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.150m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.007500000m3 |
