Teradek Bolt 6 LT Max TX/RX Deluxe Set V Mount

$23,985.00






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

 Features:

  • Supports New 6 GHz Frequency Band
  • Transmits up to 1524m Line of Sight
  • HDMI and 3G-SDI Inputs and Outputs
  • Transmit up to 4K30 Video
  • Long-Range Panel Antenna Included
  • V Mount Battery Mount on RX
  • 10-Bit 4:2:2 Support, No Delay
  • Compatible with Bolt 4K Series TX/RX
  • AES-256 Encryption, 7 Antennas
  • Bluetooth Mobile App, Spectrum Analyzer

Transmit and receive lossless HD video from up to 5000'(1524m) line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight.

The transmitter sends up to 4K30 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Key Features

  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
  • Transmits to an unlimited number of receivers in broadcast mode
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Improved "long-range" mode
  • Input up to 4K via HDMI video; input/output 1080p via 3G-SDI, and transmit up to 4K30 video
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • HDR workflow support with HDR-10, PQ, and HLG standards
  • Smaller and lighter chassis design than other Bolt transmitters
  • Transmit metadata, timecode, and stop/start triggers over a wireless connection
  • Simultaneously transmit to up to six Bolt 6 or Bolt 4K series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration



Teradek LT MAX Specs

Inputs / Outputs

Antenna Ports Transmitter: 2 x RP-SMA Female
Receiver: 5 x RP-SMA Female
Video Transmitter: 1 x HDMI Type A (HDMI 1.4b) Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI Type A (HDMI 1.4b) Output
Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Audio None
Power Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O Transmitter/Receiver: 1 x Micro-USB 2.0 Input
Encryption 256-Bit AES

Wireless

Wireless Range 5000' / 1524 m (Line-of-Sight)
Channel Bandwidth 40 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth Yes

Format Support

Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94/50
480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression Uncompressed
Timecode Support Yes

Power

DC Input Power 28 VDC
Battery Type Receiver: 1 x Gold Mount
Power Consumption Transmitter: 9 W
Receiver: 11 W

Mounting

Mounting 1 x 1/4"-20 Female
1 x 3/8"-16 Female

Environmental

IP Rating None
Operating Temperature 0 to 40°C

General

Material of Construction Aluminum, Polycarbonate
Dimensions Transmitter: 103 x 60 x 33 mm
Receiver: 4122 x 94 x 27 mm
Weight Transmitter: 206 g
Receiver: 292 g

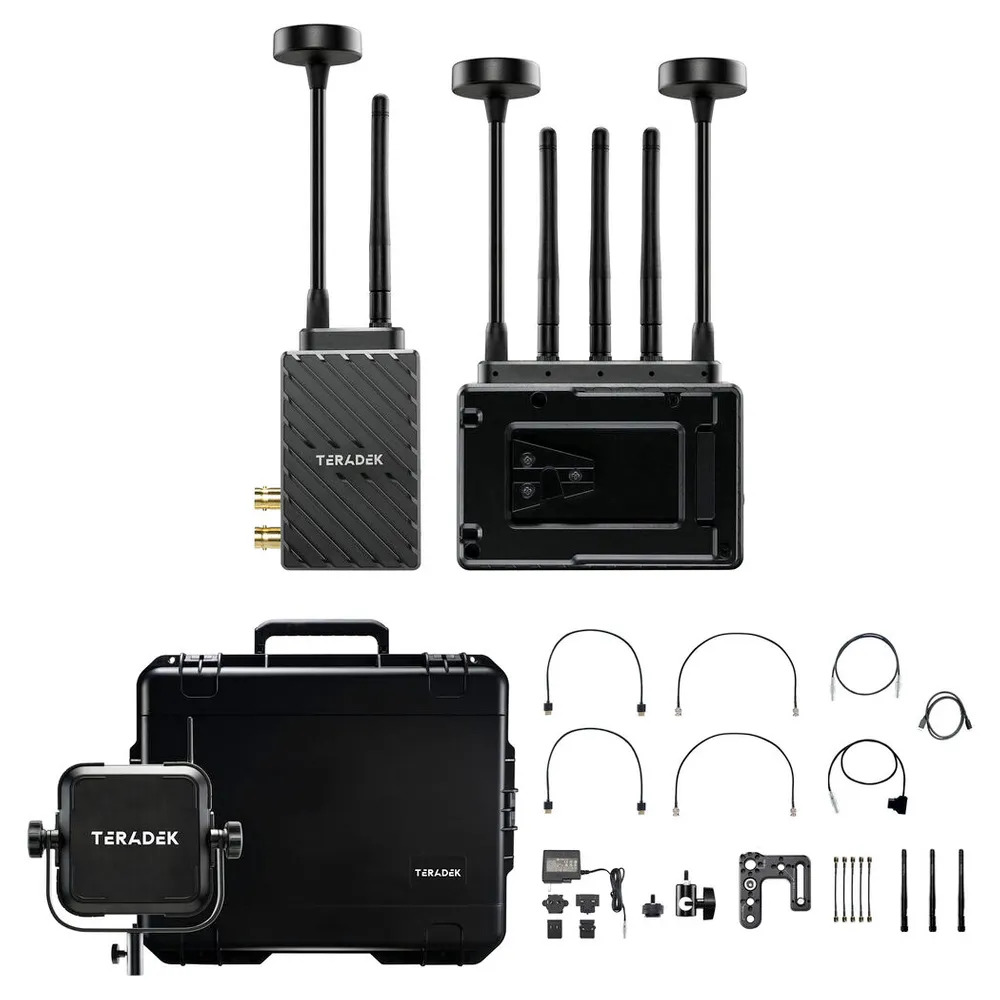

In the Box

Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)

 1 x Bolt 6 LT MAX 3G-SDI/HDMI Transmitter (V-Mount)

 1 x Bolt 6 LT MAX 3G-SDI/HDMI Receiver (V-Mount)

 1 x Antenna Array

2 x Bolt Battery Cover

 1 x 2-Pin to D-Tap Power Cable (18")

 1 x Micro-USB to USB Type-A Cable (36")

 1 x HDMI Type A Cable (18")

 1 x 18W AC Adapter with Cable (6')

2 x BNC Cable (10")

5 x RP-SMA Female Cable (4")

1 x 2-Pin Connector Cable for ALEXA (18")

1 x 1/4"-20 Light Stand Adapter

1 x Shoe Adapter

1 x Wooden Camera Offset Mount

5 x Standard Antenna

3 x Mushroom Antenna

1 x Carry Case

Limited 1-Year Warranty

(442333)

SKU 442333
Brand Teradek
Shipping Weight 2.0000kg
Shipping Width 0.450m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.020250000m3
