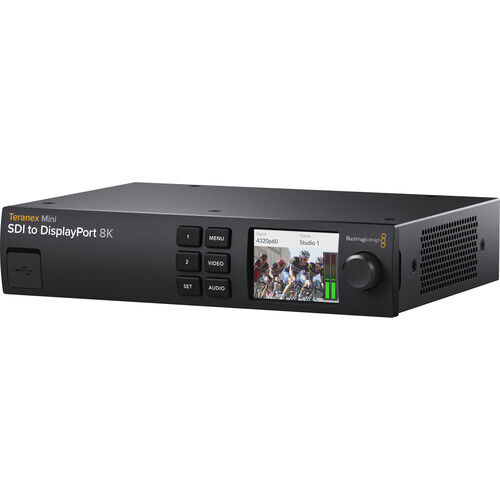

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

$2,415.00
Sold Out

or 4 payments of $603.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
  • 4 x Rubber Foot
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
  • Accepts Third-Party Calibration Probes
  • 12G-SDI I/O / DisplayPort/USB-C D.P. Out
  • 2 x Selectable, On-Screen Scopes
  • Auto-Convert 2SI and Square Division
  • Supports HDR Workflows
  • Supports 33-Point 3D LUTs

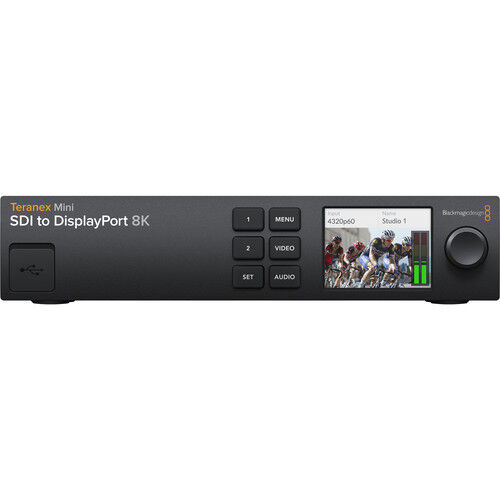

  • Front-Panel Interface, Audio Meters
  • Rack-Mountable with Separate Kit

Features

SDI to DisplayPort Conversion

Converts SDI sources to DisplayPort, supporting up to DCI 8K60 input

Quad-Link 12G-SDI

Quad-link 12G-SDI inputs with loop outs

SDI & DisplayPort Outputs

Quad-link 12G-SDI output, one USB-C DisplayPort output, and two full-size DisplayPort outputs

Pro Monitor Compatibility

Compatible with pro monitors like the Apple 32" Pro Display XDR

Calibration Tool Compatibility

Supports third-party calibration probes like the SpectraCal C6, X-Rite i1 Display Pro, and the Klein K10-A for accurate alignment on connected displays

HDR Support

Supports SDR and both HLG or PQ HDR via the SDI and DisplayPort outputs

Live Scope Overlays

Overlay up to two live scopes on the monitor

3D LUT Support

Supports 3D, 10-bit LUTs with two front-panel control buttons

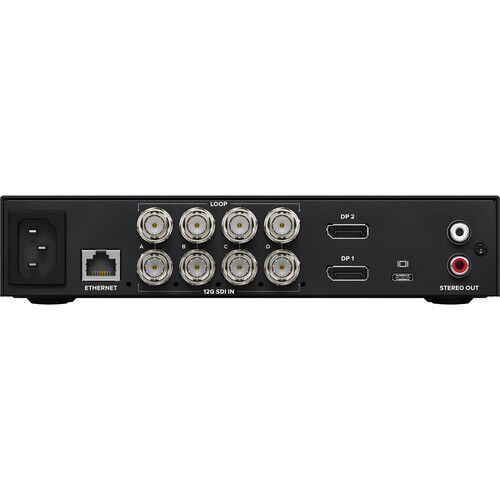

Inputs/Outputs

Video Inputs

4x BNC (12G-SDI)

Audio Inputs

No

Video Outputs

4x BNC (12G-SDI) (Loop Output)
2x DisplayPort (DisplayPort 1.4)
1x USB-C (DisplayPort 1.4)

Audio Outputs

2x RCA Analog

Other I/O

1x RJ45 Control
1x USB-C

Format Support

Input Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps

Output Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps

Output Audio Format

Analog: 48 kHz / 24-Bit

Embedded Audio

SDI: 16-Channel

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Hardware

Display Size

2.2"

OS Compatibility

Windows 10
macOS 10.14
macOS 10.1 or Later

Power

Power I/O

1x IEC C14 Input

Power Consumption

Device: 100 to 240 VAC (35 W)

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

General

Dimensions

8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm

Weight

2.6 lb / 1.18 kg

(CONVN8TRMAASDIDP)

SKU CONVN8TRMAASDIDP
Barcode # 9338716006452
Brand Blackmagic Design
Shipping Weight 0.5000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
