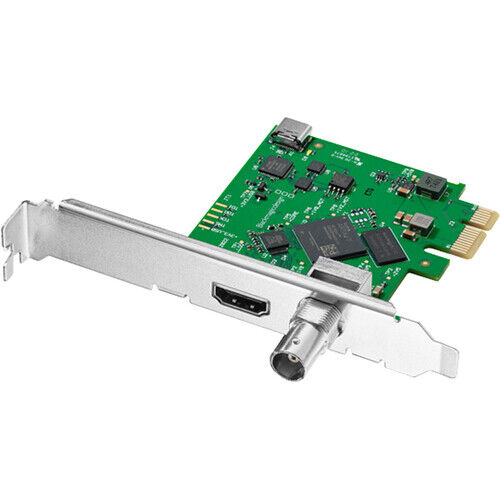

Blackmagic Design DeckLink Mini Recorder HD
Items Included
- Blackmagic Design DeckLink Mini Recorder HD
- Low-Profile Slot Bracket
- Limited 1-Year Manufacturer Warranty
Key Features
- Broadcast-Quality Recording
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Inputs
- Supports up to 2K DCI over SDI
- Up to 1080p60 Resolution Support in HDMI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
PCIe Compatibility
PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Supported Software Applications
- Wirecast
- vMix
- OBS
- Cinergy Capture Pro
- DevTek EasyMediaSuite
- Glookast Capturer
- Livestream Producer
- Metus Ingest
- Softron MovieRecorder
- ToolsOnAir just:in
- Burst Video WebClip2Go & [REC]Marker
- Zoom
Supported Codecs
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAMHD422
- DNxHR & DNxHD
- AppleProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes 422LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
Hardware Frame Buffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
Blackmagic Design Mini Recorder HD Specs
Inputs/Outputs
| System Connection |
(Length Unspecified) |
| Simultaneous Multi-Input Support |
Not Specified by Manufacturer |
Format Support
| Embedded Audio |
SDI: 16-Channel |
Standards
| HDR Support |
Not Specified by Manufacturer |
Hardware
| OS Compatibility |
macOS 11.1 |
Power
| Power Consumption |
Device: 3 W |
General
| Dimensions |
3.62" / 91.95 mm |
| Weight |
1.98 oz / 56 g |
(BDLKMINIREC3G)
| SKU | BDLKMINIREC3G |
| Barcode # | 9338716007923 |
| Brand | Blackmagic Design |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.230m |
| Shipping Length | 0.110m |
