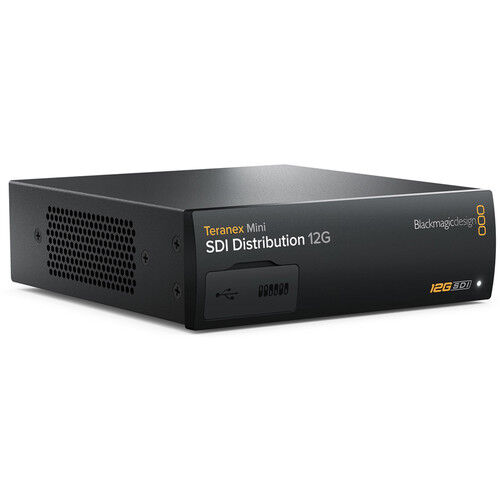

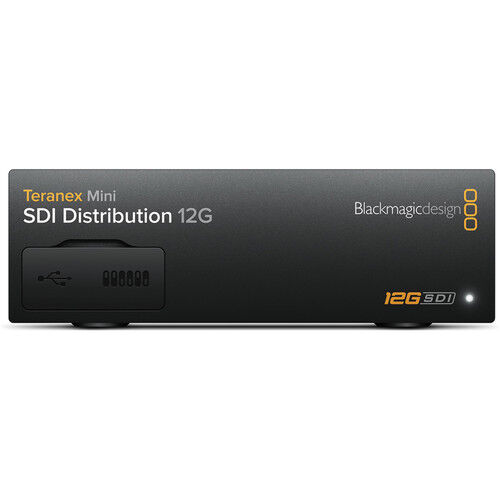

Blackmagic Design Teranex Mini SDI 12G Distribution

$935.00
Sold Out

or 4 payments of $233.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design Teranex Mini SDI 12G Distribution
  • Limited 3-Year Manufacturer Warranty

Key Features

  • Distribute Signal to Multiple Devices
  • 1 x 12G-SDI Input up to 4K
  • 8 x 12G-SDI Outputs to Match Input
  • 4K/2K/HD/SD Automatic Switching
  • Reclocking, 16-Channel Audio Support

Blackmagic Design Teranex Mini Specs

Key Specs

Inputs

1 x BNC (12G-SDI) Female

Embedded Audio

SDI: 16-Channel

Outputs

8x BNC (12G-SDI) Female

Video Format

SDI (4:4:4/4:2:2)
4096 x 2160: 23.98/24/25 fps
3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080p: 23.98/24/25 fps
2048 x 1080PsF: 23.98/24/25 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF: 23.98/24/25/29.97/30 fps
1280 x 720p: 50/59.94/60 fps
720 x 576i: 50 fps
720 x 480i: 59.94 fps

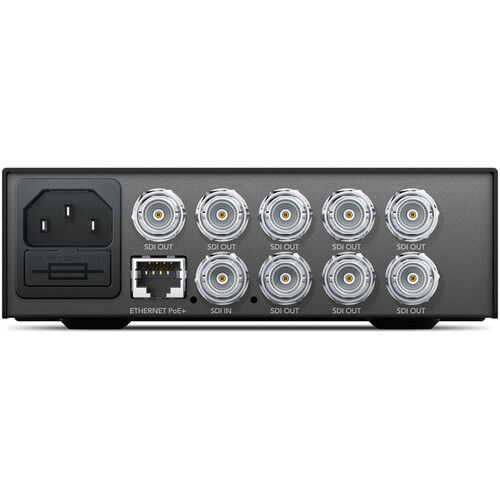

Interfaces

Inputs

1 x BNC (12G-SDI) Female

Embedded Audio

SDI: 16-Channel

Outputs

8x BNC (12G-SDI) Female

Other I/O

1x RJ45 (10/100 Mbps Ethernet) Input/Output
1x Mini-USB (Firmware) Input

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Reclocking

Yes

HDR Support

No

HDCP Support

No

EDID Support

No

Transmission

Video Format

SDI (4:4:4/4:2:2)
4096 x 2160: 23.98/24/25 fps
3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080p: 23.98/24/25 fps
2048 x 1080PsF: 23.98/24/25 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF: 23.98/24/25/29.97/30 fps
1280 x 720p: 50/59.94/60 fps
720 x 576i: 50 fps
720 x 480i: 59.94 fps

Audio Format

Unspecified Digital Signal: 48 kHz / 24-Bit

Power

Power I/O

1x IEC C14 Input

Power Consumption

Power Supply: 100 to 240 VAC (16 W)

ESD Protection

No

General

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 140°F / -20 to 60°C up to 90% Humidity

Dimensions

6.7 x 5.5 x 1.8" / 170.2 x 139.7 x 45.7 mm

Weight

1.28 lb / 581 g

(CONVNTRMEADA)

SKU CONVNTRMEADA
Barcode # 9338716003505
Brand Blackmagic Design
Shipping Weight 0.5000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
