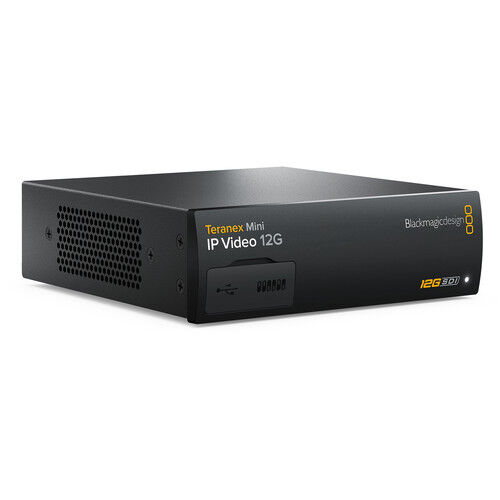

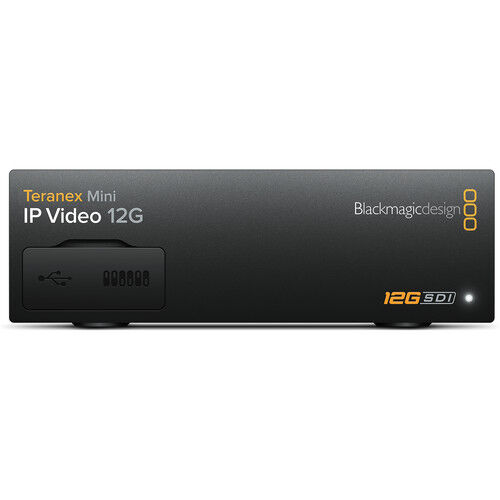

Blackmagic Design Teranex Mini IP Video 12G

$935.00
Sold Out

or 4 payments of $233.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design Teranex Mini IP Video 12G
  • SD Card with Software and Manual
  • Limited 3-Year Manufacturer Warranty

Key Features

  • Advanced High-Data Rate Signal Converter
  • TICO Encoder / Decoder
  • Supports up to 4K DCI 4096x2160p Signals
  • Two Independent 12G-SDI 10-Bit Outputs
  • Gigabit Ethernet for up to 1080p60
  • Optional 10G Optical Ethernet Support
  • Supports Optional LCD Smart Front Panel
  • Intelligent Thermal Heat Dissipation
  • Manage Numerous Units from a Mac or PC

Requires a minimum of two units—one for encoding the signal and one for decoding the signal.

TICO encoding is a visually lossless compression designed to let you distribute video across an IP network.

The unit supports signals up to 1080p60 over a standard Ethernet connection. For support of signals up to 12-G SDI (4K DCI or 4K UHDF), an optional 10G fiber optic Ethernet LC connector is required.

Blackmagic Videohub Software can be used on Windows or Mac OS computers to turn them into a router server that can manage the connections between multiple units so you can build a large custom sized router on your network.

Supports AC voltage using an optional IEC cable (Blackmagic units do not ship with a power cable) or you can power it via PoE+ with a compatible router.

Setup is done via built-in DIP switches, Blackmagic Teranex setup software, or an optional Teranex Mini Smart Panel with LCD screen.

You can control your Mini 12G-IP via the optional Teranex Mini Smart Panel with LCD screen or Blackmagic Video Hub software.

Embedded audio is supported—there are no separate audio inputs/outputs.

Blackmagic Teranex setup and Video Hub software is included on the SD card that ships with your unit.

Key Specs

Video I/O

Input
1x BNC (12G-SDI)
Output
2x BNC (12G-SDI)

Video Resolution

SDI Input (10-Bit 4:4:4/4:2:2 RGB, YUV)
4096 x 2160 at 23.98/24/25 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25 fps
2048 x 1080PsF at 23.98/24/25 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF at 23.98/24 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
SDI Output (10-Bit 4:4:4/4:2:2 YUV)
4096 x 2160 at 23.98/24/25 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25 fps
2048 x 1080PsF at 23.98/24/25 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF at 23.98/24 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Broadcast System Compatibility

NTSC, PAL

IP Video

Encoding via TICO
4096 x 2160
Decoding
4096 x 2160

OS Compatibility

macOS
Windows

Inputs/Outputs

Video I/O

Input
1x BNC (12G-SDI)
Output
2x BNC (12G-SDI)

Other I/O

Input/Output
1x RJ45

Expansion Slots

1x SFP Slot

Format Support

Video Resolution

SDI Input (10-Bit 4:4:4/4:2:2 RGB, YUV)
4096 x 2160 at 23.98/24/25 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25 fps
2048 x 1080PsF at 23.98/24/25 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF at 23.98/24 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
SDI Output (10-Bit 4:4:4/4:2:2 YUV)
4096 x 2160 at 23.98/24/25 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25 fps
2048 x 1080PsF at 23.98/24/25 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF at 23.98/24 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Embedded Audio

LAN (RJ45)/SDI

Reclocking

No

Standards

Video Standard Compliance

ITU-R: BT.601/BT.656
SMPTE: 259M/292M/296M/310M/425M

Broadcast System Compatibility

NTSC, PAL

IP Streaming

IP Video

Encoding via TICO
4096 x 2160
Decoding
4096 x 2160

Hardware

Media/Memory Card Slot

Single Slot: SD (Unspecified Type)

OS Compatibility

macOS
Windows

Power

Power I/O

1x RJ45 (48 VDC ) Input
1x IEC C14 Input

PoE Support

PoE+ 802.3at

Power Consumption

Device: 90 to 240 VAC (16 W)

General

Operating Conditions

32 to 104°F / 0 to 40°C at 0 to 90% Humidity

Storage Conditions

-18 to 140°F / -28 to 60°C

Dimensions

6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm

Weight

1.28 lb / 581 g

(CONVNTRMOBIPV)

SKU CONVNTRMOBIPV
Barcode # 9338716003901
Brand Blackmagic Design
Shipping Weight 0.5000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
