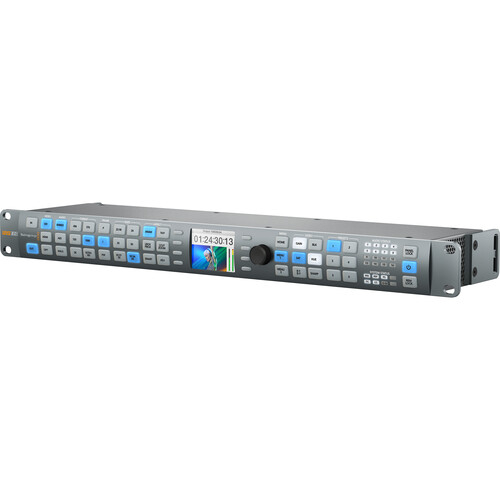

Blackmagic Design Teranex AVItems Included Blackmagic Design Teranex AV Limited 1-Year Manufacturer Warranty

$2,889.00
Sold Out

or 4 payments of $722.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design Teranex AV
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Dual SD/HD/3G/6G/12G-SDI I/O
  • Quad-Link SDI Output
  • HDMI 2.0 Input and Output
  • Supports SD, HD, 2K, and UHD 4K
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output
  • 24-Bit, 48 kHz Audio
  • XLR and RCA Audio Inputs

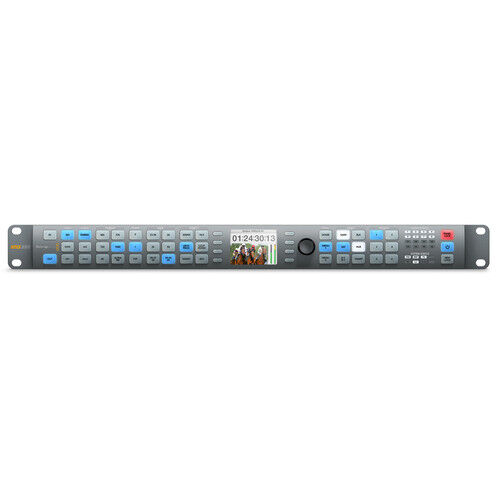

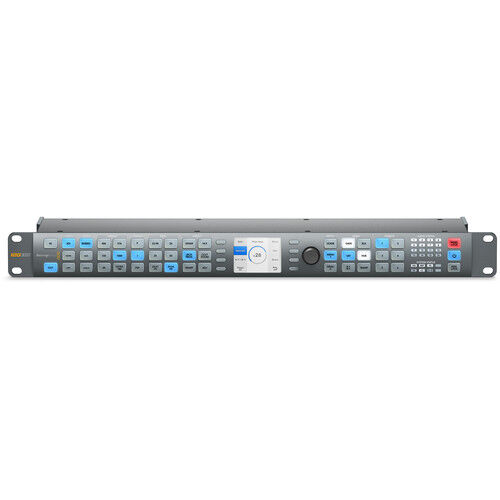

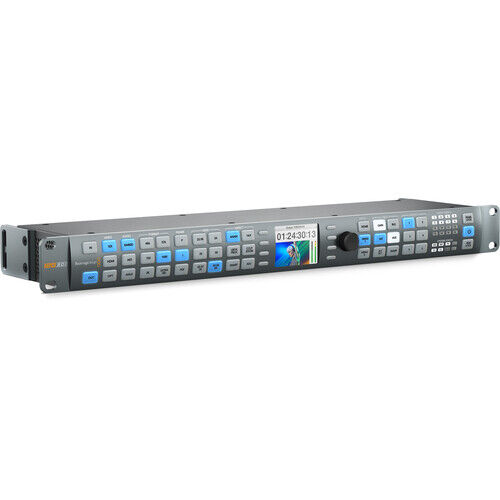

  • Front-Panel Controls
  • Software Control via RJ45 Ethernet

Blackmagic Design Teranex AV Overview

Built with professional A/V installations and live events in mind, the Blackmagic Design Teranex AV enjoys 1089 up, down, cross, and standards conversions for formats ranging from NTSC and PAL to 2K and UHD 4K video. Regardless of conversion, all processing is done in real-time with minimal latency of approximately two frames. A bevy of input and output options are available for dealing with professional and consumer sources. SDI inputs accept SD, HD, 3G, 6G, and 12G-SDI, while the HDMI input is v2.0 compliant. An optional fiber connection can be populated by a separately available SFP cage. Embedded audio is accepted as well as analog audio via XLR and RCA stereo inputs. Video outputs include SDI and HDMI as well as four extra SDI output for quad-link 4K output or four mirrored outputs. All conversions can be controlled via the comprehensive front panel buttons and menu navigation, or through Ethernet, if part of an installation.

Real-Time Video Processing and Aspect Ratio Conversion

Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction, and proc amp control. Real-time variable and fixed aspect ratio conversions.

Format Conversion

Real-time color space conversion, up conversion, down conversion, cross conversion, and SD/HD/Ultra HD standards conversion.

Test Patterns

  • SMPTE 75% bars
  • Full-field 75% bars
  • Convergence grid
  • Multi-burst
  • Black-burst

Output Switching

Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video

Blackmagic Design Teranex AV Specs

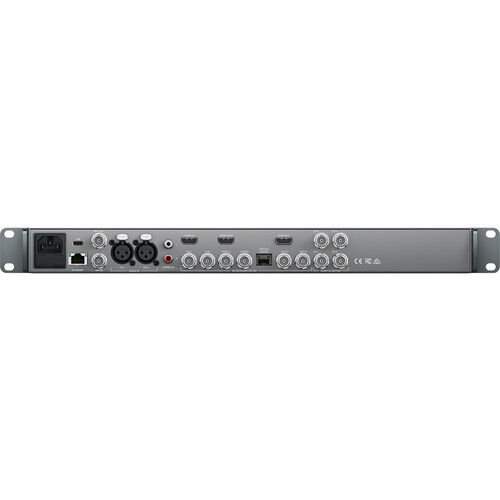

Inputs

2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality)
1 x HDMI Type A, v2.0
1 x Optical fiber (optional)
1 x Stereo RCA, analog audio
2 x XLR, balanced analog audio, AES/EBU digital audio
1 x BNC, reference
1 x USB-C
1 x RJ45, Ethernet

Outputs

2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality)
4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option)
1 x HDMI Type A, v2.0
1 x Optical fiber (optional, not available with dual-link operation)
1 x BNC, reference output

Format Support

3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60
2048 x 1080p: 23.98/24
2048 x 1080PsF: 23.98/24
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

SDI Metadata Support

VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.

Audio Sampling

HD: 24-bit, 48 kHz
SD: 20-bit, 48 kHz

Video Sampling

4:2:2

Color Depth

10-bit

Color Space

REC 601, REC 709

Compatible Operating Systems

Mac OS X 10.10 or later
Windows 8.1, 10

Power Input

1 x IEC, 100-240 VAC, 50-60 Hz

Environmental

Operating Temperature: 41 to 122°F / 5 to 50°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Relative Humidity: 0-90%, non-condensing

Dimensions

19 x 1.75 x 5" / 48.3 x 4.4 x 12.7 cm

Weight

4.4 lb / 2 kg

(TERANEXEXPAV12GQL)

SKU TERANEXEXPAV12GQL
Barcode # 9338716004373
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
