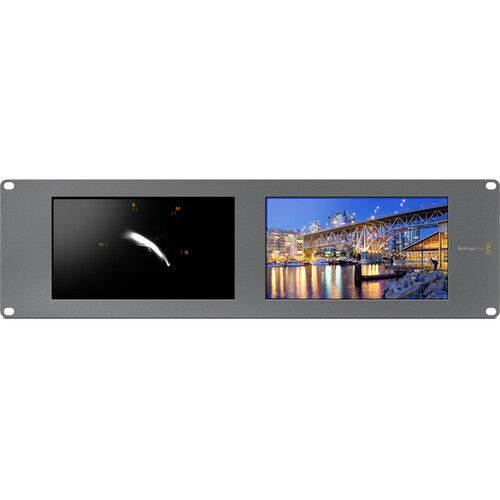

Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors

$2,155.00
Sold Out

or 4 payments of $538.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
  • 12V Universal Power Supply
  • Set of International Wall Socket Adapters
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Supports SD/HD/3G/6G-SDI
  • Auto Format Sensing & Selection
  • 1 x Loop-Through SDI I/O per Monitor
  • Select Video, Waveform, Vectorscope
  • RGB Parade, YUV Parade, Histogram
  • Audio Phase & Levels
  • Software Control via Ethernet
  • Industry Compatible Tally System
  • 3 Rack Unit Size for Mounting
  • Auto Orientation Sensing & Image Flip

Monitors SD/HD/3G/6G-SDI Signals

The SmartScope Duo 4K allows you to monitor SD, HD, 2K, and UHD 4K (3840 x 2160) video. The inputs are auto-sensing/switching to match the supported input video format. Each monitor features one 6G input and one reclocked loop-through 6G output.

Video or Scope View

You can select from either the video feed or one of six scope views of the video signal:

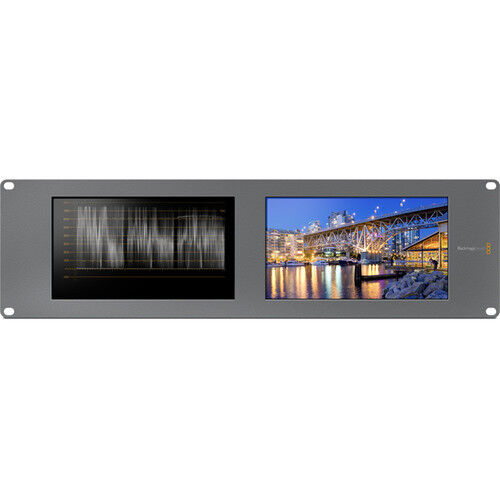

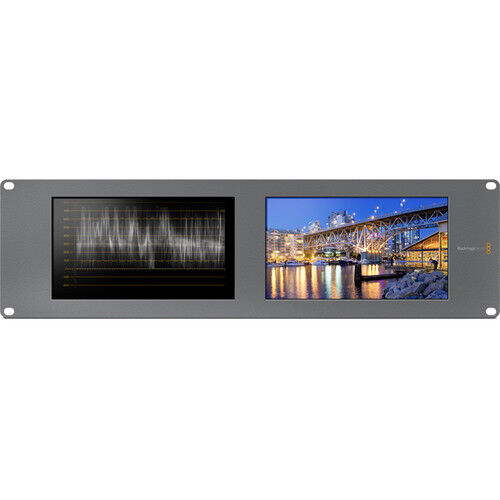

  • Waveform: Displays the luminance component of the video signal on an IRE scale.
  • Vectorscope: Allows you to accurately measure colors in the video signal, and is a valuable tool when matching cameras, or when you need to align the hue on the output of decks.

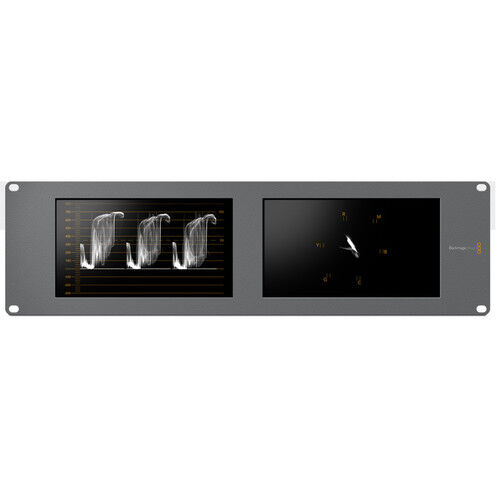

  • Parade: You can choose to display either RGB or YUV Parade. RGB Parade lets you check for illegal colors, plotting them against an IRE Scale. The YUV Parade display shows the YUV component video as it is transmitted down the SDI cable.

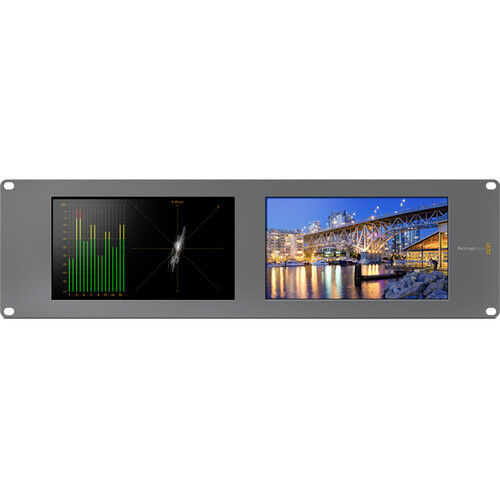

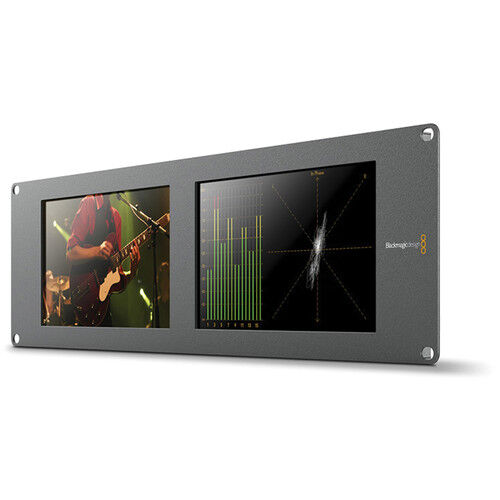

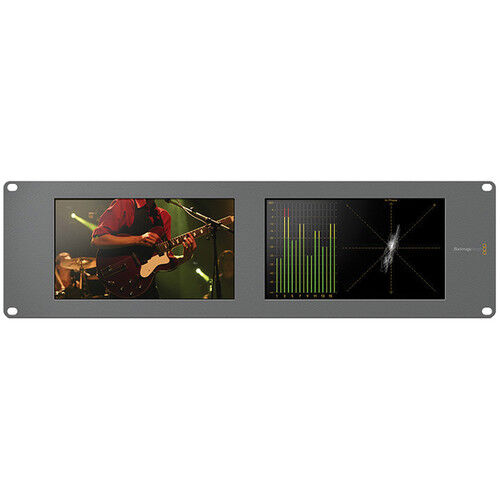

  • Audio Views: allows you to monitor 16 channels of audio, checking the levels and the audio phase. You can monitor the levels of all 16 channels at the same time, or monitor the stereo phase of SDI audio pairs. The stereo phase meter plots left and right audio as an XY scope display, and out of phase audio can be seen as either a left or right leaning display.
  • Histogram: The Histogram view lets you see where the pixels are in your video, and how they are distributed from black to white. You can see where the overall exposure is, and if you are exposing the brighter areas of your image with enough detail.

Software Control

The monitor features an Ethernet in and an Ethernet out port, and you set up the unit using the USB 2.0 port. After that, you use the included free control utility with either a Mac or Windows computer via the Ethernet connection to select your views and make any adjustments to the monitor for brightness and color.

Tally

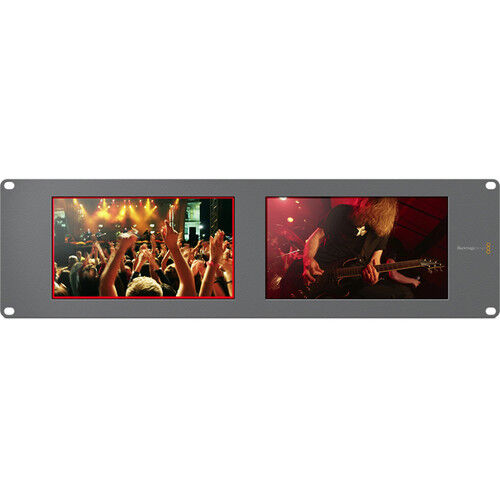

Each monitor supports the Tally function with different colored borders indicating the Tally condition: preview, on air, and recording. The tally connector is compatible with switchers and automation systems.

Reversible

SmartView monitors may be installed in the extreme top or bottom of equipment racks. The SmartView monitor will automatically sense the rotation angle of the screen and flip the image to the correct rotation. You can even remove the front panel and rotate it 180 degrees if required.

Key Specs

Display Size

8.0" / 20.3 cm

Touchscreen

No

HDR Support

No

Video I/O

2x BNC (6G-SDI) Input
2x BNC (6G-SDI) Output

Media/Memory Card Slot

No

Video Format

SDI (4:4:4)
UHD 4K: 30/29.97/25/24/23.98
DCI 2K: 25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i
576i

Battery

No

Power Consumption

20 W (Maximum)

Display

Panel Type

TFT LCD

Display Size

8.0" / 20.3 cm

Aspect Ratio

16:9

Touchscreen

No

HDR Support

No

LUT Support

Yes

Image Controls

Blue Only, Focus Peaking, Histogram, Image Flip, Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform

Inputs/Outputs

Video I/O

2x BNC (6G-SDI) Input
2x BNC (6G-SDI) Output

Embedded Audio

SDI: 16-Channel

Audio I/O

No

Built-In Speaker

No

Power I/O

1x Barrel Input

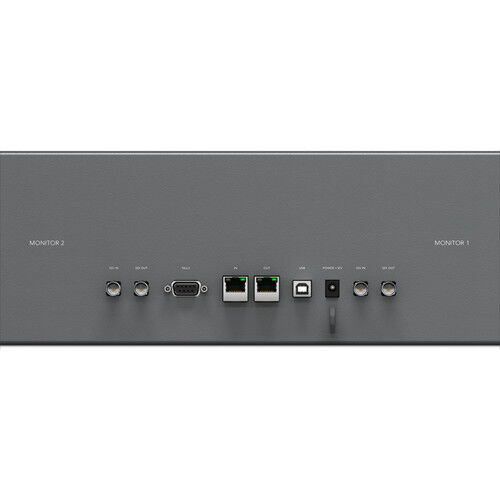

Other I/O

1x RJ45 (LAN) Input
1x RJ45 (LAN) Output
1x USB-B 2.0
1x DE-9/DB-9 (Tally)

Media/Memory Card Slot

No

Wireless

Wi-Fi

No

Bluetooth

No

Mobile App Compatible

No

Format Support

Video Format

SDI (4:4:4)
UHD 4K: 30/29.97/25/24/23.98
DCI 2K: 25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i
576i

Power

Input Power

12 to 15 VDC

Battery

No

Power Consumption

20 W (Maximum)

Mounting

Rack Form Factor

3 U

General

Environmental Resistance

No

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

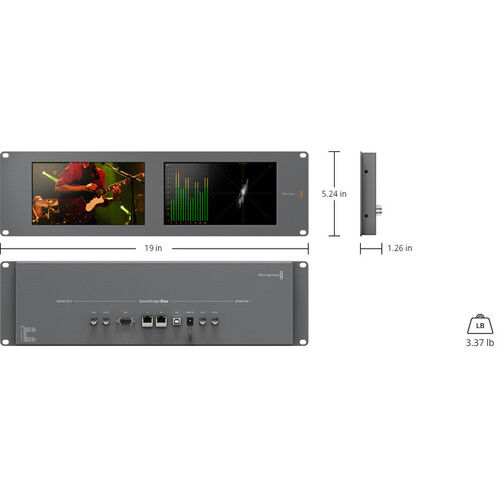

Dimensions

19 x 5.2 x 1.3" / 48.3 x 13.3 x 3.2 cm (Including )

Weight

3.37 lb / 1.53 kg, Including

(HDL-SMTV4K12G3)

SKU HDL-SMTV4K12G3
Barcode # 9338716008722
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
