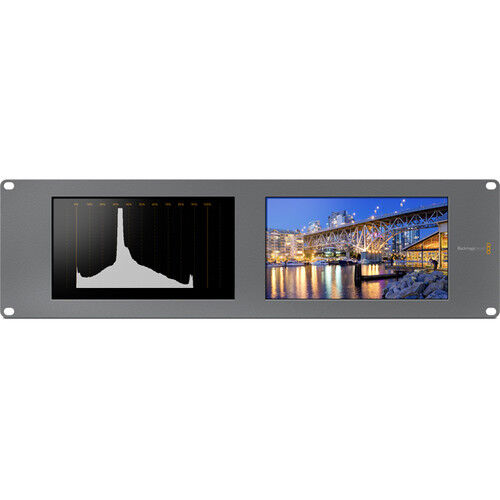

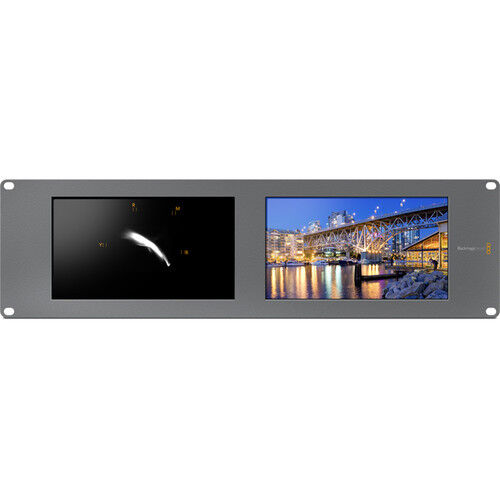

Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
Items Included
- Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
- 12V Universal Power Supply
- Set of International Wall Socket Adapters
- Limited 1-Year Manufacturer Warranty
Key Features
- Supports SD/HD/3G/6G-SDI
- Auto Format Sensing & Selection
- 1 x Loop-Through SDI I/O per Monitor
- Select Video, Waveform, Vectorscope
- RGB Parade, YUV Parade, Histogram
- Audio Phase & Levels
- Software Control via Ethernet
- Industry Compatible Tally System
- 3 Rack Unit Size for Mounting
- Auto Orientation Sensing & Image Flip
Monitors SD/HD/3G/6G-SDI Signals
The SmartScope Duo 4K allows you to monitor SD, HD, 2K, and UHD 4K (3840 x 2160) video. The inputs are auto-sensing/switching to match the supported input video format. Each monitor features one 6G input and one reclocked loop-through 6G output.

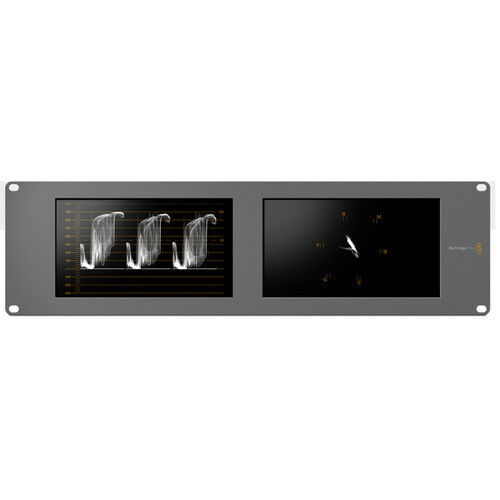

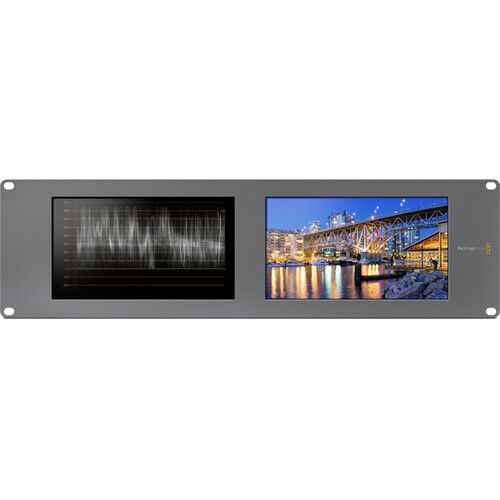

Video or Scope View
You can select from either the video feed or one of six scope views of the video signal:

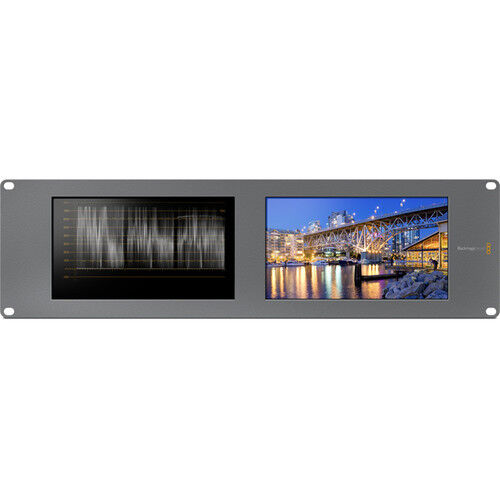

- Waveform: Displays the luminance component of the video signal on an IRE scale.
- Vectorscope: Allows you to accurately measure colors in the video signal, and is a valuable tool when matching cameras, or when you need to align the hue on the output of decks.
- Parade: You can choose to display either RGB or YUV Parade. RGB Parade lets you check for illegal colors, plotting them against an IRE Scale. The YUV Parade display shows the YUV component video as it is transmitted down the SDI cable.

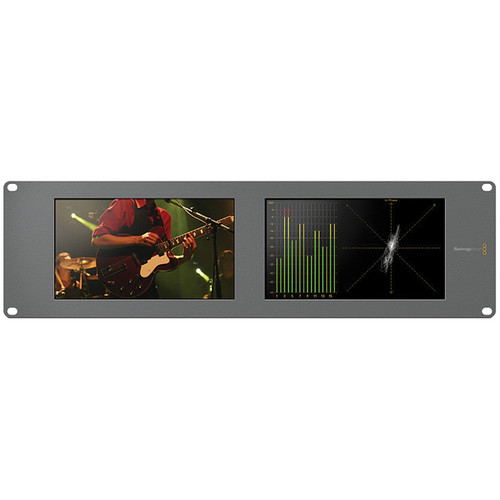

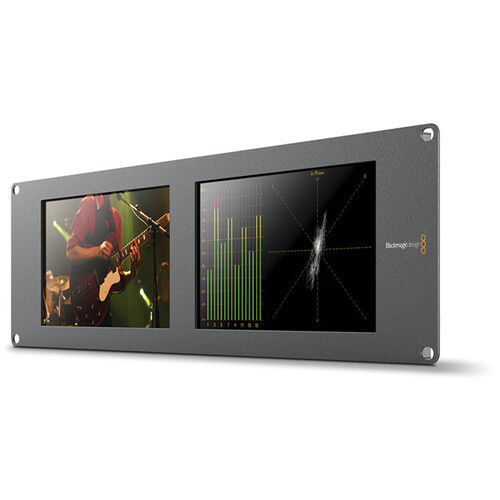

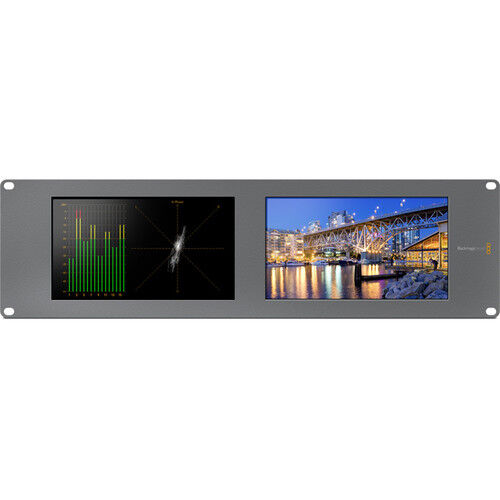

- Audio Views: allows you to monitor 16 channels of audio, checking the levels and the audio phase. You can monitor the levels of all 16 channels at the same time, or monitor the stereo phase of SDI audio pairs. The stereo phase meter plots left and right audio as an XY scope display, and out of phase audio can be seen as either a left or right leaning display.
- Histogram: The Histogram view lets you see where the pixels are in your video, and how they are distributed from black to white. You can see where the overall exposure is, and if you are exposing the brighter areas of your image with enough detail.
Software Control

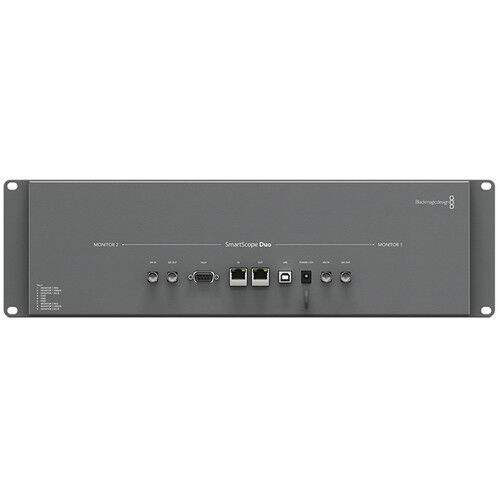

The monitor features an Ethernet in and an Ethernet out port, and you set up the unit using the USB 2.0 port. After that, you use the included free control utility with either a Mac or Windows computer via the Ethernet connection to select your views and make any adjustments to the monitor for brightness and color.
Tally

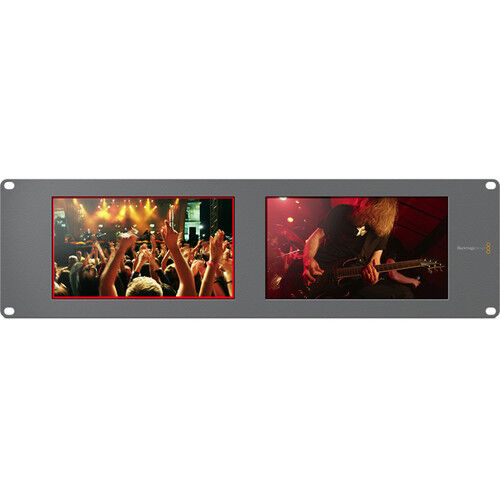

Each monitor supports the Tally function with different colored borders indicating the Tally condition: preview, on air, and recording. The tally connector is compatible with switchers and automation systems.
Reversible
SmartView monitors may be installed in the extreme top or bottom of equipment racks. The SmartView monitor will automatically sense the rotation angle of the screen and flip the image to the correct rotation. You can even remove the front panel and rotate it 180 degrees if required.
Key Specs
| Display Size |
8.0" / 20.3 cm |
| Touchscreen |
No |
| HDR Support |
No |
| Video I/O |
2x BNC (6G-SDI) Input |
| Media/Memory Card Slot |
No |
| Video Format |
SDI (4:4:4) |
| Battery |
No |
| Power Consumption |
20 W (Maximum) |
Display
| Panel Type |
TFT LCD |
| Display Size |
8.0" / 20.3 cm |
| Aspect Ratio |
16:9 |
| Touchscreen |
No |
| HDR Support |
No |
| LUT Support |
Yes |
| Image Controls |
Blue Only, Focus Peaking, Histogram, Image Flip, Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform |
Inputs/Outputs
| Video I/O |
2x BNC (6G-SDI) Input |
| Embedded Audio |
SDI: 16-Channel |
| Audio I/O |
No |
| Built-In Speaker |
No |
| Power I/O |
1x Barrel Input |
| Other I/O |
1x RJ45 (LAN) Input |
| Media/Memory Card Slot |
No |
Wireless
| Wi-Fi |
No |
| Bluetooth |
No |
| Mobile App Compatible |
No |
Format Support
| Video Format |
SDI (4:4:4) |
Power
| Input Power |
12 to 15 VDC |
| Battery |
No |
| Power Consumption |
20 W (Maximum) |
Mounting
| Rack Form Factor |
3 U |
General
| Environmental Resistance |
No |
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions |
-4 to 113°F / -20 to 45°C |
| Dimensions |
19 x 5.2 x 1.3" / 48.3 x 13.3 x 3.2 cm (Including ) |
| Weight |
3.37 lb / 1.53 kg, Including |
(HDL-SMTWSCOPEDUO4K2)
| SKU | HDL-SMTWSCOPEDUO4K2 |
| Barcode # | 9338716004458 |
| Brand | Blackmagic Design |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.550m |
| Shipping Length | 0.150m |
