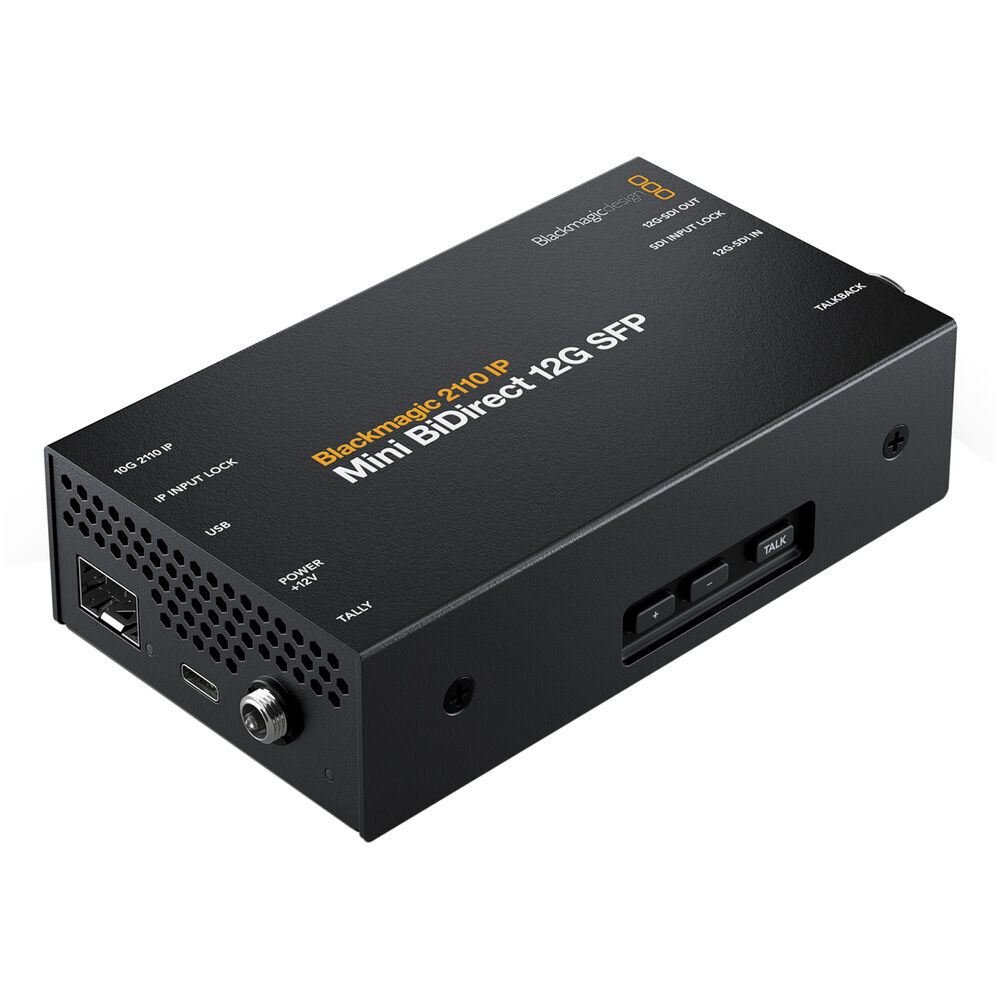

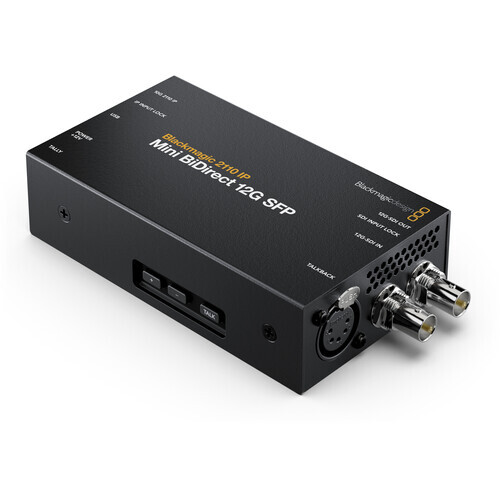

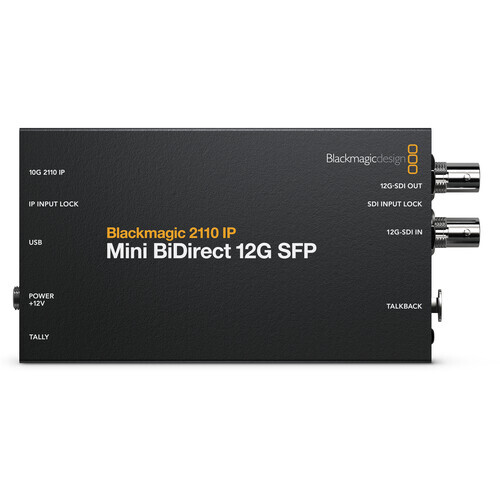

Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter

$605.00


or 4 payments of $151.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • 12G-SDI to SFP Fiber Converter
  • Video Monitoring To/From Studio Camera
  • Supports UHD 4K Video via SFP Fiber
  • Talkback Control
  • Windows/macOS Software Utility
  • PoE and 10G Ethernet Power

Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems over long distances with this 2110 IP Mini BiDirect 12G SFP Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact it can easily be mounted on your camera rig. It features an SFP connection for optical fiber to connect over long distances. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.

Features

  • This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber
  • Handles the SDI camera feed and SDI program return in the one converter
  • 5-pin XLR talkback headset connection with volume and press to talk buttons
  • Supports all SD, HD, and UHD standards up to 2160p60
  • Includes a 12 VDC power supply
  • The SFP slot will accept 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules



Video I/O

Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female

Audio I/O

Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female

Video Resolution

SDI Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Inputs / Outputs

Video I/O

Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female

Audio I/O

Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female

Other I/O

Input/Output
1x RJ45 (10 GbE)
Input
1x USB-C (Firmware)

Expansion Slots

1x SFP Slot (Occupied by Optical Fiber 2110 IP I/O)

Format Support

Video Resolution

SDI Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Embedded Audio

LAN (RJ45)/SDI

Standards

Video Standard Compliance

SMPTE: ST 2110-10

HDR Compatibility

Yes

Hardware

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Power

Power I/O

1x Barrel (12 to 16 VDC) Input

PoE Support

PoE++ 802.3bt

Power Consumption

Device: 12 to 16 VDC (18 W)

Environmental

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Storage Humidity

0 to 90%

General

Dimensions

5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm

(CONVNVIPFIP12GSPF)

SKU CONVNVIPFIP12GSPF
Barcode # 9338716009149
Brand Blackmagic Design
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.220m
Shipping Cubic 0.003300000m3
