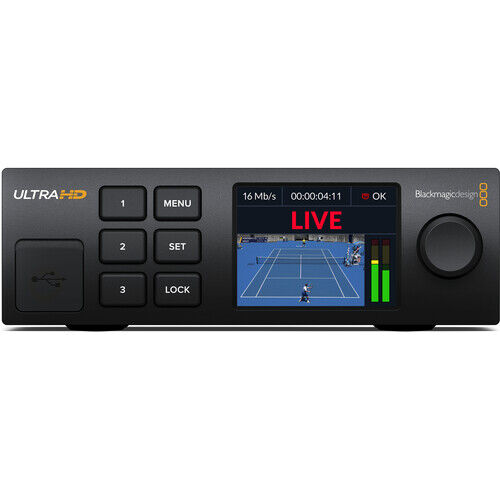

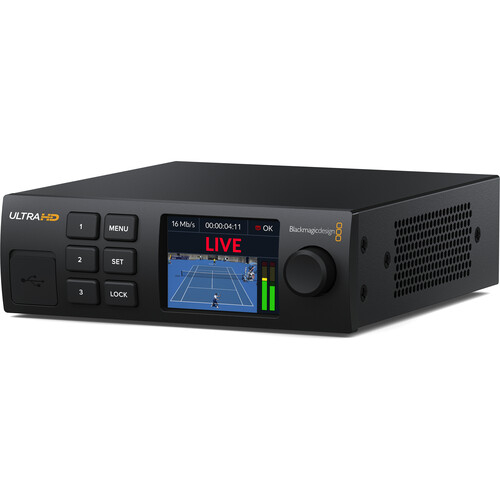

Blackmagic Design Streaming Decoder 4K

$1,155.00
Sold Out

or 4 payments of $288.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design Streaming Decoder 4K
  • Welcome Wallet with QR Code for Software Download
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Decodes H.264 & H.265 to SDI & HDMI
  • Camera Control, Talkback & Tally Support
  • USB-C Ports for Phone Tethering
  • Tethers to 4G & 5G Phones for Streaming
  • Blackmagic Streaming Utility Software

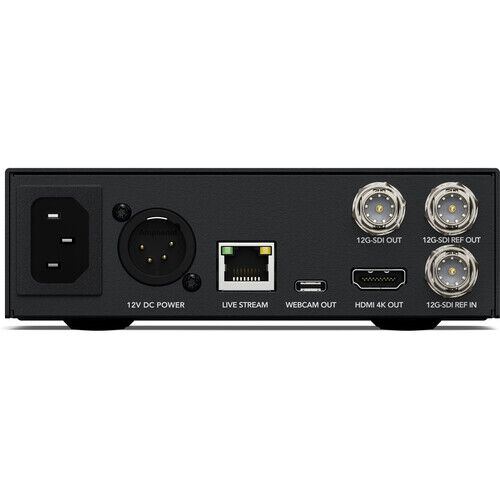

Both the front and rear panels of the decoder include USB-C connectivity for tethering high-speed 5G and 4G phones. In the event of an internet failure, the device automatically switches to the connected phone's data connection, although users can prioritize either the Ethernet or phone connection, as per their specific applications. For cameras without built-in streaming, the Blackmagic Streaming Encoder can be used, with control embedded in the encoder's SDI monitoring output, connecting to the SDI input of the Blackmagic camera. The ultraportable device is only 5.5" wide, allowing users to align it with up to two other optional devices on a rackmount unit, using only 1 RU of space. The decoder comes with the Blackmagic Streaming Utility software.

Blackmagic Design Streaming Decoder 4K Specs

Key Specs

IP Video

H.264/H.265:
4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding

Video I/O

1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output
1x HDMI (HDMI 2.0) Output

Embedded Audio

SDI Input: 16-Channel
SDI Output: 16-Channel
SDI Output: 2-Channel
HDMI Output: 8-Channel
LAN (RJ45)/USB

Display

LCD

IP Encoding/Decoding

IP Video

H.264/H.265:
4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding

Transport Protocols

RTMP, SRT

Wireless

Wireless

No

Wi-Fi

No

Bluetooth

No

Cellular Support

5G NR / 4G LTE via Unspecified SIM Type

SIM Card Slots

Not Specified by Manufacturer

Interfaces

Video I/O

1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output
1x HDMI (HDMI 2.0) Output

Other I/O

1x RJ45 Fast Ethernet Input/Output

Embedded Audio

SDI Input: 16-Channel
SDI Output: 16-Channel
SDI Output: 2-Channel
HDMI Output: 8-Channel
LAN (RJ45)/USB

Power

Power I/O

1x IEC C14 Input
1x Mini-XLR 4-Pin (12 VDC) Input

General

Operating Conditions

32 to 104°F / 0 to 40°C at 0 to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C at 0 to 90% Humidity

Display

LCD

Rackmount Size

1 U

Dimensions

6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm

Weight

1.66 lb / 753 g

(BDLKWEBJDES4K)

SKU BDLKWEBJDES4K
Barcode # 9338716010053
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
