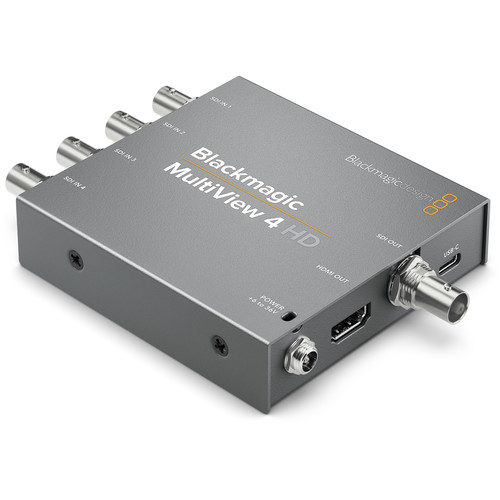

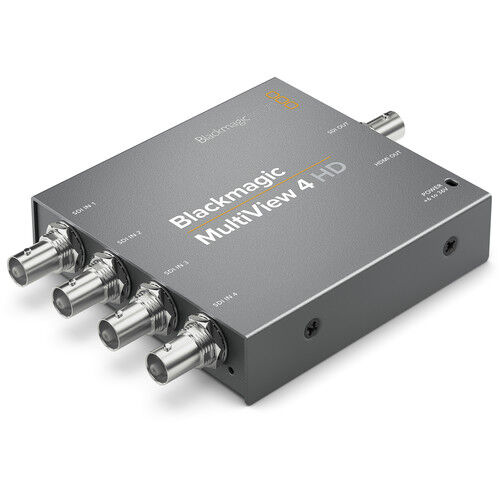

Blackmagic Design MultiView 4 HD

$345.00
Sold Out

or 4 payments of $86.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design MultiView 4 HD
  • 12V Universal Power Supply
  • International Socket Adapters
  • Limited 3-Year Manufacturer Warranty

Key Features

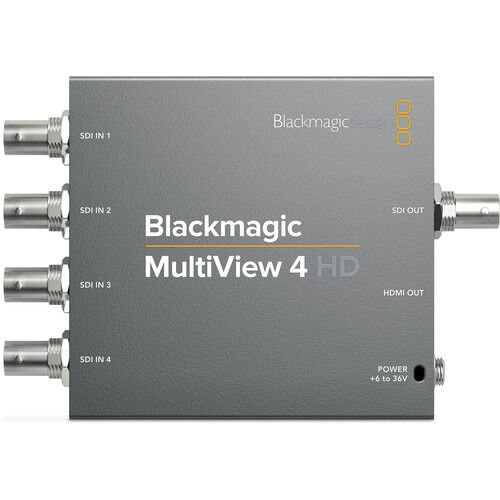

  • 4 x SD/HD/3G-SDI Inputs
  • 1 x SDI & 1 x HDMI Outputs
  • Automatic Signal Detection
  • SDI Re-Clocking on Output
  • Monitor EDID Support

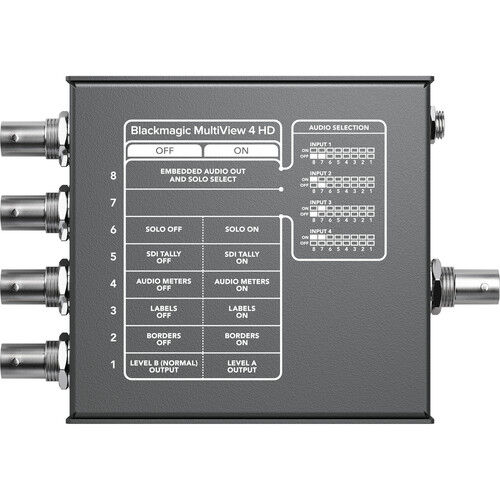

  • Display Custom Labels & Audio Metering
  • Compact Metal Housing
  • Quad Multiviewer

Blackmagic Design MultiView 4 HD Specs

Key Specs

Inputs

4 x BNC (3G-SDI)

Embedded Audio

SDI

Outputs

1x BNC (3G-SDI)
1x HDMI

Video Format

SDI (10-Bit 4:4:4/4:2:2 YUV, RGB)
2048 x 1080
1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps
1920 x 1080PsF: 24/23.98 fps
1920 x 1080i: 59.94/60/50 fps
1280 x 720p: 59.94/60/50 fps

Interfaces

Inputs

4 x BNC (3G-SDI)

Embedded Audio

SDI

Outputs

1x BNC (3G-SDI)
1x HDMI

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656

Reclocking

No

HDR Support

No

HDCP Support

No

EDID Support

Yes

OS Compatibility

macOS 10.15
macOS 11.1 or Later
Windows 10 or Later (64-Bit Only)

Transmission

Video Format

SDI (10-Bit 4:4:4/4:2:2 YUV, RGB)
2048 x 1080
1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps
1920 x 1080PsF: 24/23.98 fps
1920 x 1080i: 59.94/60/50 fps
1280 x 720p: 59.94/60/50 fps

Maximum Sampling Rate

48 kHz / 24-Bit

Power

Power I/O

1x Barrel Input

Power Consumption

6 to 36 VDC (5.5 W)

General

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

Dimensions

4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm

Weight

8.53 oz / 0.24 kg

(HDL-MULTIP3G04HD)

SKU HDL-MULTIP3G04HD
Barcode # 9338716005424
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
