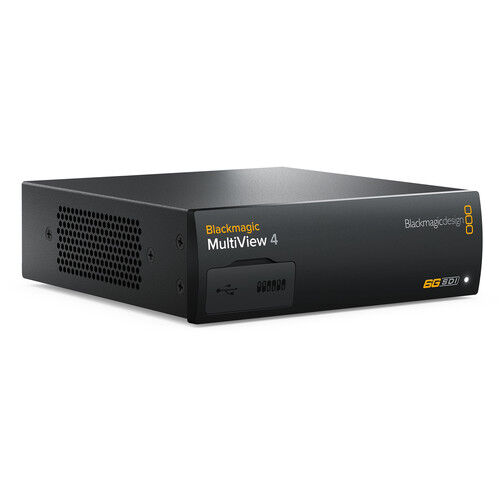

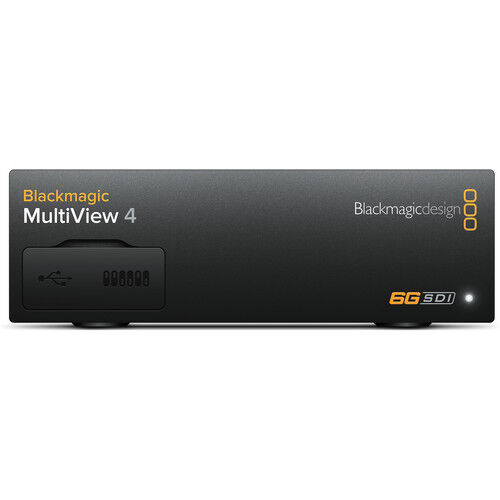

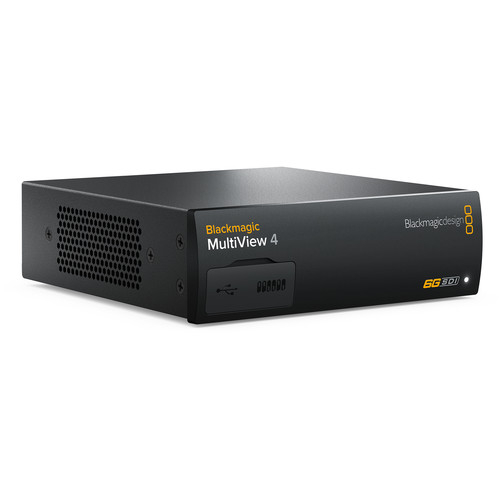

Blackmagic Design MultiView 4

$935.00
Sold Out

or 4 payments of $233.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design MultiView 4
  • SD Card with Software and Manual
  • Limited 3-Year Manufacturer Warranty

Key Features

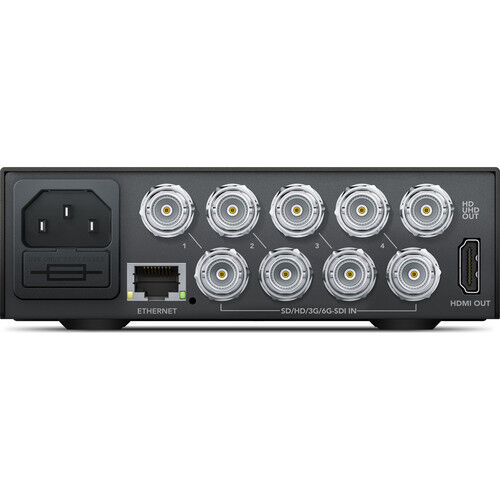

  • 4x 6G-SDI Inputs with Loop Outputs
  • 1x SDI & 1x HDMI MultiView Outputs
  • Supports SD, HD, UHD 4K, DCI 4K
  • Independent Inputs Allow Mixing Formats
  • Standard 2x2 Configuration
  • Ethernet for Remote Control
  • 1 RU Height Machined Aluminum Chassis
  • Built-In Multi-Voltage Power Supply
  • Accepts 48 VDC PoE+

Blackmagic Design MultiView 4 Specs

Key Specs

Outputs

1x BNC (6G-SDI)
1x HDMI
4x BNC (6G-SDI, Looping)

Video Format

SDI (10-Bit 4:4:4/4:2:2 YUV, RGB)
4096 x 2160: 24 fps
3840 x 2160: 24/25/23.98/29.97/30 fps
2048 x 1080PsF: 24/25/23.98 fps
2048 x 1080: 24/25/23.98 fps
1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps
1920 x 1080PsF: 24/25/23.98/29.97/30 fps
1920 x 1080i: 59.94/60/50 fps
1280 x 720p: 59.94/60/50 fps

Interfaces

Outputs

1x BNC (6G-SDI)
1x HDMI
4x BNC (6G-SDI, Looping)

Other I/O

1x RJ45
1x USB-A 2.0

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656

Reclocking

Yes

Transmission

Video Format

SDI (10-Bit 4:4:4/4:2:2 YUV, RGB)
4096 x 2160: 24 fps
3840 x 2160: 24/25/23.98/29.97/30 fps
2048 x 1080PsF: 24/25/23.98 fps
2048 x 1080: 24/25/23.98 fps
1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps
1920 x 1080PsF: 24/25/23.98/29.97/30 fps
1920 x 1080i: 59.94/60/50 fps
1280 x 720p: 59.94/60/50 fps

Maximum Sampling Rate

48 kHz / 24-Bit

Maximum Data Rate

6 Gb/s

Power

Power Consumption

90 to 240 VAC (16 W)

General

Rack Form Factor

1 U

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

Dimensions

6.7 x 5.5 x 1.8" / 17.0 x 14.0 x 4.5 cm

Weight

1.28 lb / 0.58 kg

(HDL-MULTIP6G04)

SKU HDL-MULTIP6G04
Barcode # 9338716003888
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m

Be The First To Review This Product!

Help other M & C Co Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review
