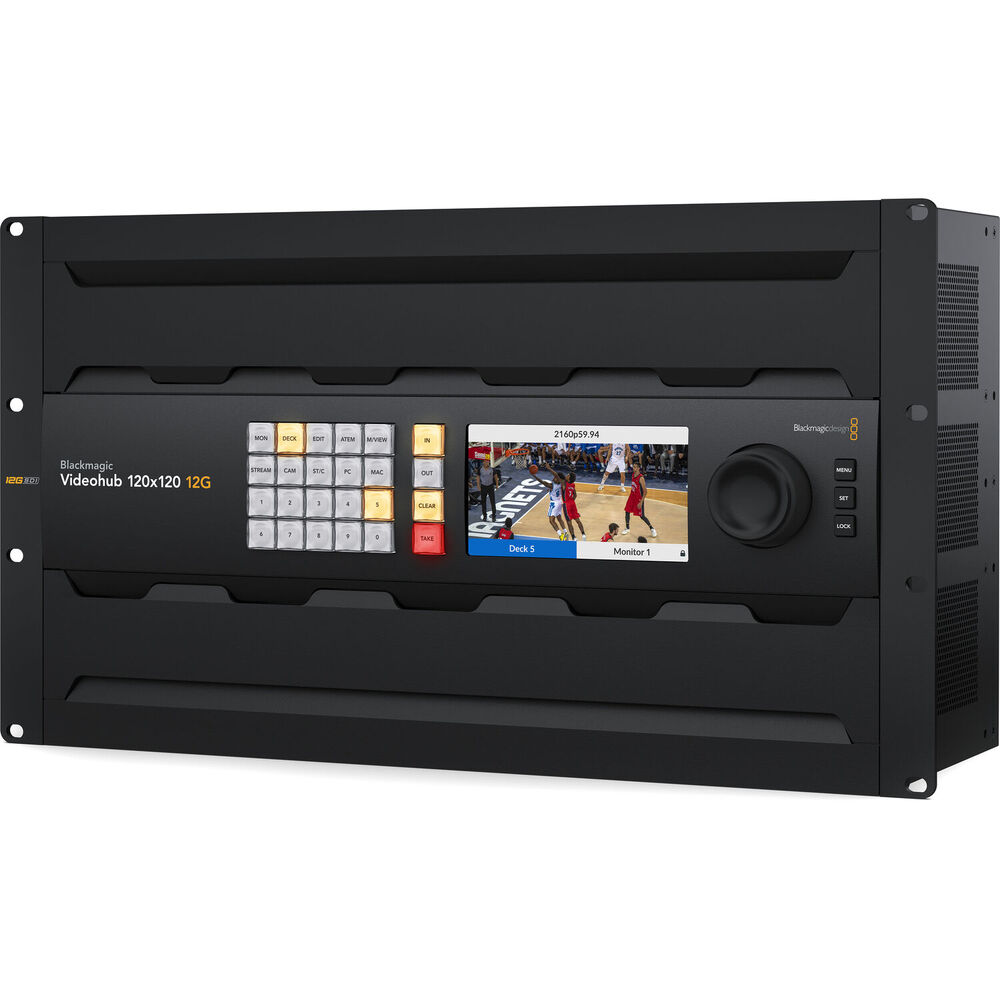

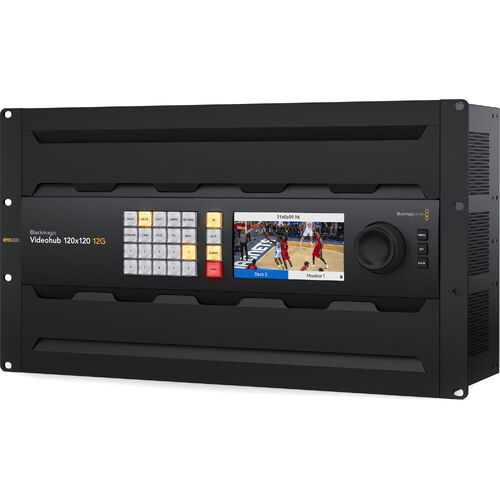

Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router

$21,225.00






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • 120 x 12G-SDI Inputs & 120 x Outputs
  • Zero-Latency Routing Switcher
  • Supports up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video
  • 4:2:2 & 4:4:4 Video Sampling Supported
  • Push-Button, Knob & Ethernet Control
  • SDI Reclocking, Standard BNC Connectors
  • 32 Channels of Embedded Audio
  • Mac, Windows, iPad Router Control
  • Separate Connector Rows for Easy Repair

Support a mix of multiple video formats using the Videohub 120x120 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 120 x 12G-SDI inputs and 120 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 120x120 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or to add extra inputs to an ATEM switcher.

12G-SDI Multi-Rate Connections

  • Multi-rate 12G-SDI connections enable you to route up to 120 different video standards at the same time.
  • Supports up to DCI 4K60 video resolutions.
  • Provides 4:2:2 8 or 10-bit color routing in any standard.
  • Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.

SDI Reclocking

  • Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
  • Reduces or eliminates signal loss and jitter when using longer cables that can degrade the signal.

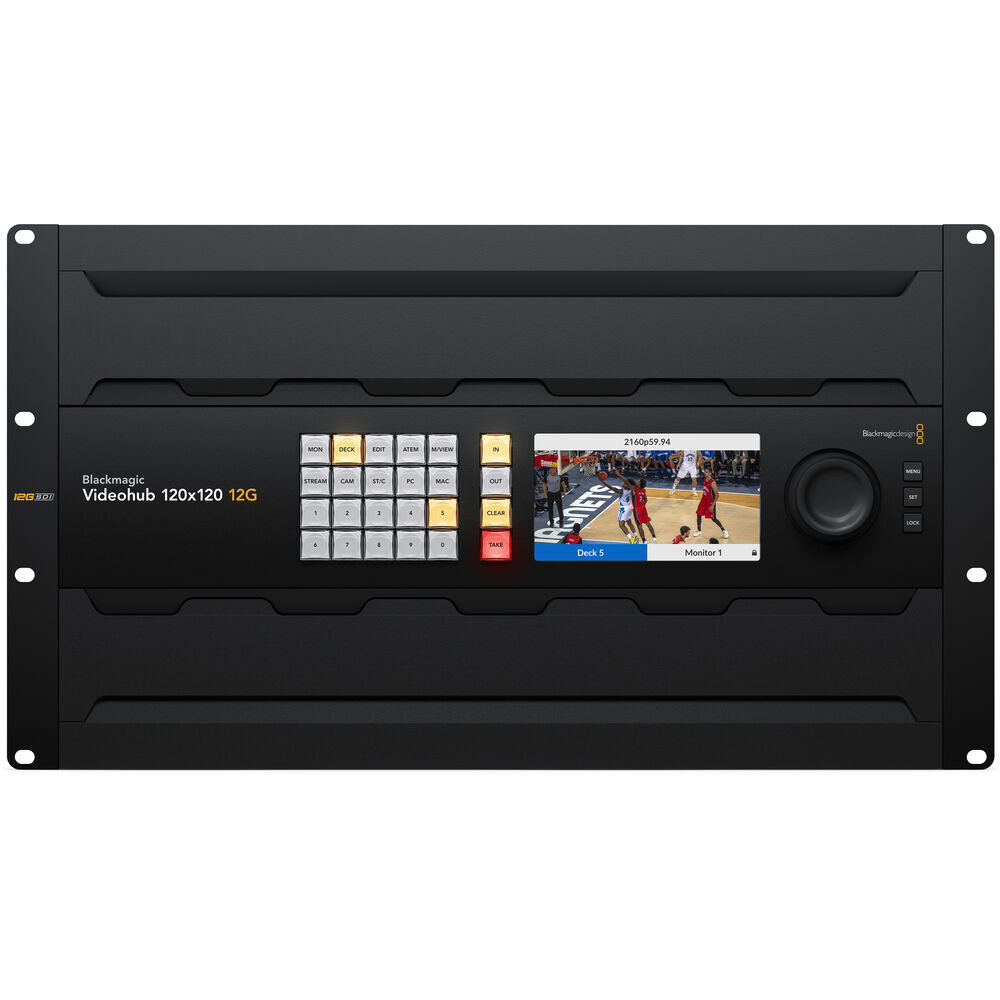

Front-Panel Controls

  • A sleek front panel offers multiple control options.
  • Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
  • The machined metal spin knob provides precise control using an electronic clutch.

Optional Hardware Control Panels

  • Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
  • Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
  • The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD, and shortcut buttons.
  • The Videohub Smart Control Pro model features an all-button design and is generally programmed, so the panel controls a single router output with each button programmed to a router input, enabling you to cut along the panel buttons to change the router output instantly.

Flexible Router Control

The macOS, iPad, and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control. This software features large buttons that are easy to press, and you can run it on the computers you're already using for creative work. Each button can be customized to a router input or a router output, and it has an icon assigned to help you identify it visually.

Setup Utility and SDK

Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.

Built-In LCD

  • View your live input before routing the signal on the built-in 5" LCD screen.
  • Bottom labels enable you to scroll through your sources in alphabetical order.
  • Eliminates the need to add an external SDI monitor to your setup.

Multiple Language Support

Customized support is available in:



  • English, Chinese, Japanese, Korean
  • Spanish, German, French, Russian
  • Italian, Portuguese, Turkish, Polish, Ukrainian



Blackmagic Design Videohub 120x120 Specs

Processing

Switching Type

Pushbutton, Software

Processing Resolution

DCI 4K at 60

Color Processing

10-Bit 4:2:2 YUV
12-Bit 4:4:4 RGB

Audio Processing

48 kHz / 24-Bit

Input

Video Inputs

120x BNC (12G-SDI)

Input Video Format

SDI (10/12-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps

Embedded Audio Input

SDI

Output

Video Outputs

80x BNC (12G-SDI)

Output Video Format

SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio Output

SDI

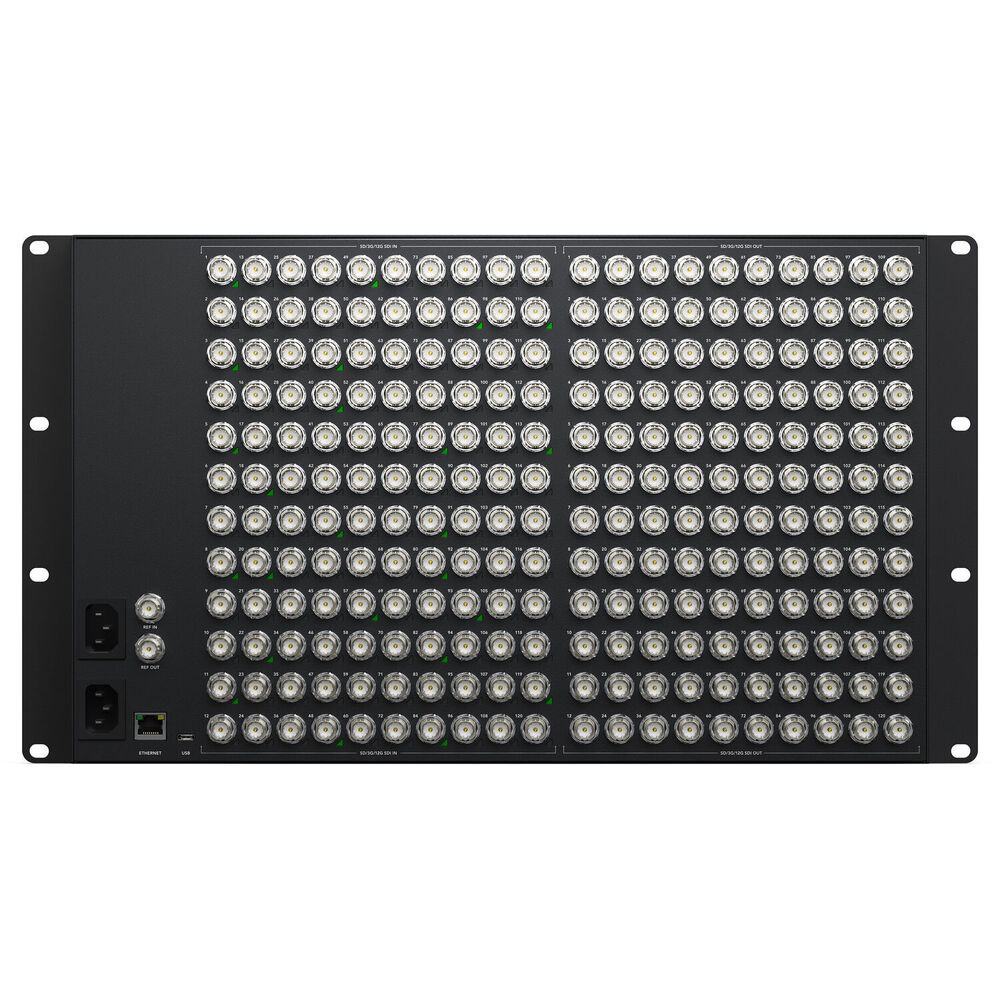

Connectivity

Other I/O

1x RJ45 LAN
1x USB-C
1x BNC Reference Input
1x BNC Reference Output

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656

HDCP Support

Yes

HDR Compatibility

Yes

Display

Display Size

5"

Hardware

OS Compatibility

macOS 13.0
macOS 14.0 or Later
Windows 10 (64-Bit Only)
Windows 11

Wi-Fi

Yes

Bluetooth

Yes

Power

Power I/O

2x IEC C14 (100 to 240 VAC) Input

Power Consumption

140 W

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

General

Rack Form Factor

6 RU

Dimensions

19 x 10.47 x 6.52" / 48.3 x 26.59 x 16.56 cm

Weight

33 lb / 15 kg

(VHUBSMAS12G120120)

SKU VHUBSMAS12G120120
Barcode # 9338716008739
Brand Blackmagic Design
Shipping Weight 18.0000kg
Shipping Width 0.550m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.055000000m3
