Blackmagic Design ATEM SDI Switcher

$589.00
Sold Out

or 4 payments of $147.25 with Info



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design ATEM SDI Switcher
  • 12 VDC External Power Supply
  • Limited 1-Year Manufacturer Warranty

Key Features

  • 4-Channel Live Stream 3G-SDI Switcher
  • Input/Output up to 1080p60 10-Bit 4:2:2
  • 2-Channel Digital Audio Mixer
  • 2 x 3G-SDI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • DVE Transition, Chroma/Luma Keyers
  • Color and Pattern Generators
  • USB-C Streaming/Webcam Output

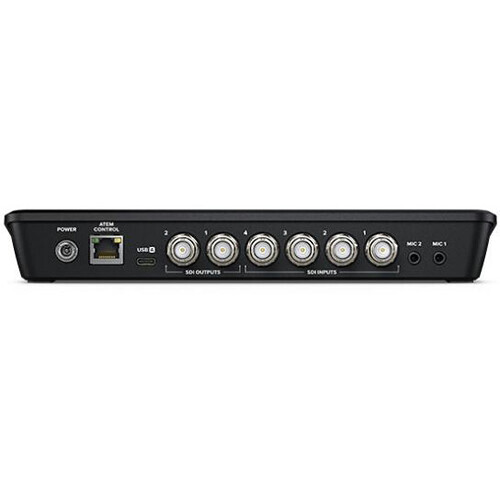

Designed for multi-camera live streaming to the internet or broadcast applications, the compact ATEM SDI from Blackmagic Design provides gaming consoles, corporate computer streams, or HD cameras a four-input, live-production switcher with an integrated control panel. The four SDI inputs are available on the rear of the chassis and they input up to 1080p60 video. Two 3G-SDI outputs are useful for a projector or external monitor, a USB-C output for streaming up to 1080p60 video to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control, and upgrades.

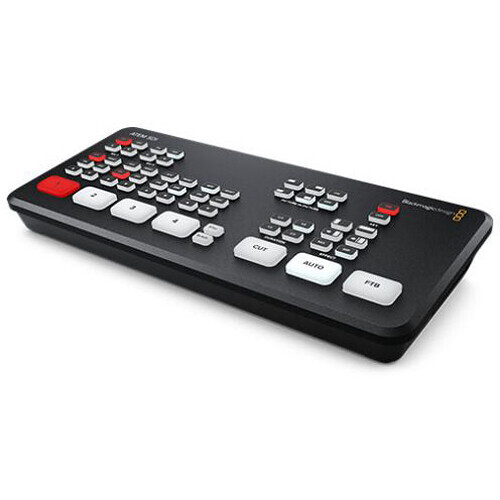

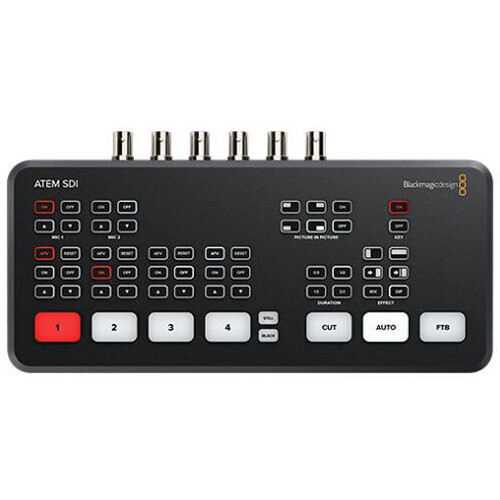

The control surface features easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini features upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and two color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The SDI output supports a minimum of 1366 x 768 resolution for monitoring your stream. It also supports the ATEM Software Control Panel via Ethernet for control and configuration.

Transitions

Available transitions include:

  • Cut: when you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.
  • Mix: the mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.
  • Dip: just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.
  • Wipe: built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened, and can even have customized colored borders.
  • DVE: with the powerful built-in Digital Video Effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.

Upstream Keyer

Layer live video over other video sources or graphics with the Upstream Keyer. You can use luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.

  • Luma key: luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.
  • Linear key: get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a gray scale mask to cut out, or mask, the area to be filled.
  • Chroma key: used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.
  • Pattern key: combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.

Downstream Keyers

The ATEM SDI switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.

Audio Mixer

The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable On/Off/Audio-Follow-Video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.

Media Player

Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.

Blackmagic Design ATEM SDI Specs

Mix Effects

Available M/E Layers

5 M/E

Effect Types

DVE, Transition, Chroma Key

Generators

1x Pattern
2x Color

Audio Mixing

2-Channel Mixing

Processing

Switching Type

IR Remote, Pushbutton, Software

Input

Number of Video Input Sources

4

Video Inputs

4x BNC (3G-SDI)

Input Video Format

SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 56/59.94/60 fps
720p at 50/59.94/60 fps

Audio Inputs

2x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

SDI: 2-Channel (per Input)

Output

Video Output Channels

3

Video Outputs

2x BNC (3G-SDI) (Program)

Output Video Format

SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB-C (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Embedded Audio Output

SDI

Multiview Output

No

Connectivity

Other I/O

1x RJ45 Control Input/Output

HDCP Support

No

Hardware

Operating System

macOS, Windows 10 Home, Windows 11 Home

OS Compatibility

macOS 11 or Later / Windows 10 or Later

OS Compatibility

macOS 11
macOS 12 or Later
Windows 10
Windows 11

Processor

Not Specified by Manufacturer

Wi-Fi

No

Bluetooth

No

Power

Power I/O

1x Barrel (12 VDC ) Input

Power Consumption

Device: 18 W

General

Operating Conditions

37 to 72°F / 5 to 40°C up to 90% Humidity

Storage Conditions

14 to 140°F / -10 to 60°C

Dimensions

9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm

Weight

23.9 oz / 678 g

(SWATEMMXEP)

SKU SWATEMMXEP
Barcode # 9338716007930
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
Shipping Cubic 0.007000000m3
