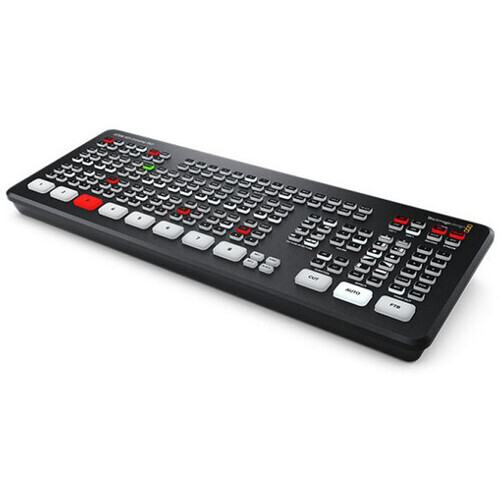

Blackmagic Design ATEM SDI Extreme ISO Switcher

$2,415.00



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • 8-Channel 3G-SDI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out and Individual Inputs
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All 3G-SDI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers

Stream Live

Live stream to YouTube, Facebook Live, Skype, Twitch, Zoom, Microsoft Teams, and other platforms that support RTMP protocols.

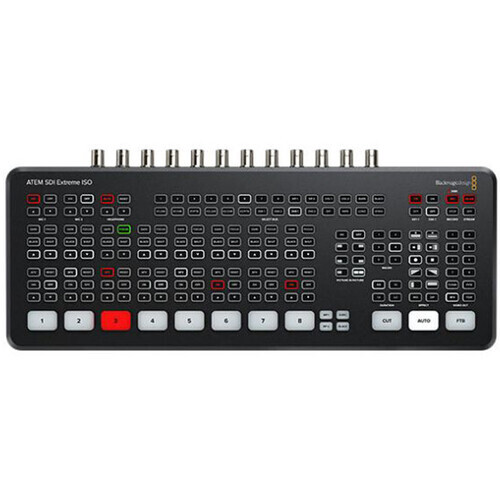

Control Interface

The front panel includes easy-to-use buttons for selecting sources, video effects, and transitions. The source buttons are large, allowing you to operate them by feel. Included on the ATEM Extreme ISO are buttons for audio mixing, recording, and streaming control, as well as output selection buttons that let you change the video output between cameras, program, and multiview. On the rear panel, there are 3G-SDIconnections for cameras or computers, extra microphone inputs, USB for webcam out, plus 4 x 3G-SDI "AUX" outputs for program video.

Output

You can output using the Ethernet connection to your network or use the USB Type-C output to have your switched show recognized as a webcam input by virtually any video software such as Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster, and others.

4G and 5G Phone Support

If you're doing live production on location, the ATEM Mini Extreme models support connecting an Apple or Android phone to the USB port to use mobile data. It's also a great backup for the main Ethernet connection, so you don't drop your stream if your hardwired connection gets interrupted. The switcher will automatically switch to using the phone as the primary connection, and the USB port will also power your phone, so the battery won't drain.

Multiview Monitoring

You can configure the 3G-SDI outputs for multiview with 4, 7, 10, 13, up to 16 views including Program, Preview, eight 3G-SDI inputs, SuperSource, clean feed, media player, streaming status, recording status, and audio meters.

Media Pool

The switcher can store up to 20 images with fill and key, and it supports PNG, TGA, BMP, GIF, JPEG, and TIFF file formats.

Compatibility

It includes the ATEM Software Control Panel, and it is also compatible with the ATEM 1 M/E, ATEM 2 M/E, and ATEM 4 M/E Advanced Panels. The ATEM Mini Extreme ISO can be configured using Blackmagic's Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Recording

The ATEM Mini Extreme models support the direct recording of your streaming data to USB flash disks using the same H.264 video files with AAC audio that you streamed. The Mini Extreme ISO also allows you to record the eight input video channels as MP4 files. This allows you to directly upload to any online video site, such as YouTube or Vimeo. Recording to multiple disks is also supported via a USB hub or the Blackmagic MultiDock, so when a disk becomes full, recording can continue to a second disk for nonstop recording. Record settings and disk selection are set up in ATEM Software Control, and there's a record status view in the built-in multiview. You can even trigger recording on connected Blackmagic Pocket Cinema Cameras.

DaVinci Resolve Integration

The Mini Extreme ISO saves a DaVinci Resolve project file, so with a single click, you can open your live production as a video edit. All cuts, dissolves, and media pool graphics will be loaded, allowing you to tweak and edit your live production using the recorded input footage. If you recorded the camera originals as Blackmagic Raw camera files, you can relink those and take advantage of DaVinci Resolve's color correction abilities.

Video Effects

One of the benefits of ATEM Mini is the professional production values possible using the range of built-in video effects. The cut button ensures an instant cut when switching between sources. The auto button is a professional term used on large broadcast switchers to enable video effect transitions. There are duration buttons for video effects allowing 0.5-, 1-, 1.5-, and 2-second settings. You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip, which fades via a color during the transition. Or use fun DVE effects that move the image off-screen when transitioning between sources.

Audio

With two independent 3.5mm stereo audio inputs, you can connect desktop and lapel microphones, or you can connect a music player to generate introduction music after the live stream commences but before the program starts. With two extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to the ATEM Mini include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. All models feature a Fairlight audio mixer with all SDI inputs, and both microphone inputs are all connected to the audio mixer, so you can live mix from all audio sources. The ATEM Mini Extreme also adds a headphone output.

Broadcast Features

Hiding in the ATEM Mini Extreme models are a host of broadcast-caliber features that are accessible when connected to a Mac or Windows computer running the free ATEM Software Control app.

Specifications:

Specs

Available M/E Layers 9 M/E
Effect Types DVE, Transition, Chroma Key, Luma Key
Generators 5 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing

Processing

Switching Type IR Remote, Pushbutton, Software

Input

Number of Video Input Sources 8
Video Input Connectors 8 x BNC (3G-SDI)
Input Video Format SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 56/59.94/60 fps
720p at 50/59.94/60 fps
Audio Input Connectors 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input SDI: 2-Channel (per Input)

Output

Video Output Channels 6
Video Output Connectors 4 x BNC (3G-SDI) (Program)
2 x USB Type-C
Output Video Format SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB Type-C (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Output Connectors 1 x 1/8" / 3.5 mm TRS Analog
Output Audio Format Analog
Embedded Audio Output SDI: 2-Channel (per Output)
Multiview Output None

Connectivity

Other I/O 1 x RJ45 Control Input/Output
HDCP Support None
IP Video 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding

Hardware

OS Compatibility macOS 11
macOS 12 or Later
Windows 10
Windows 11
*As of July, 2022: check with manufacturer for the most up-to-date compatibility
Power Connector 1 x Barrel (12 VDC) Input
Power Consumption Device: 36 W

Environmental

Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)




(SWATEMMXEPCEXTISO)

SKU SWATEMMXEPCEXTISO
Brand Blackmagic Design
Shipping Weight 2.0000kg
Shipping Width 0.350m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.007000000m3
