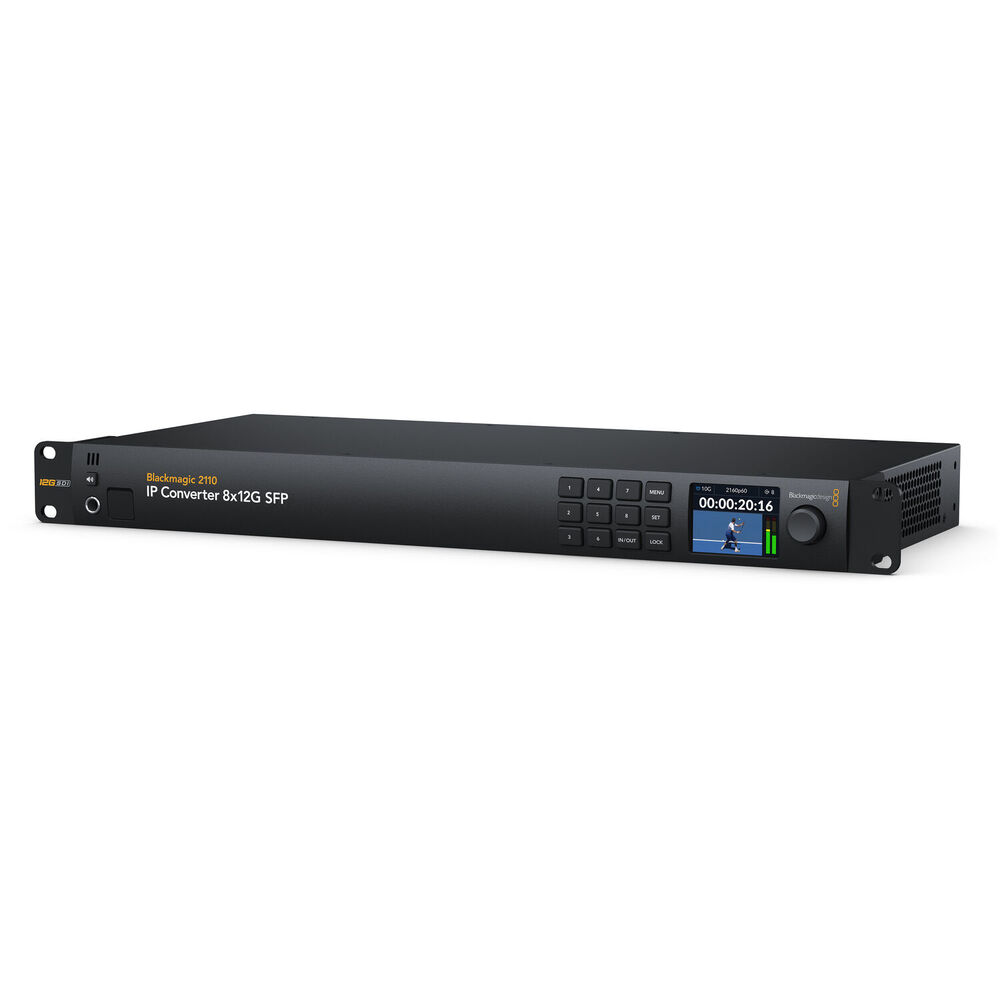

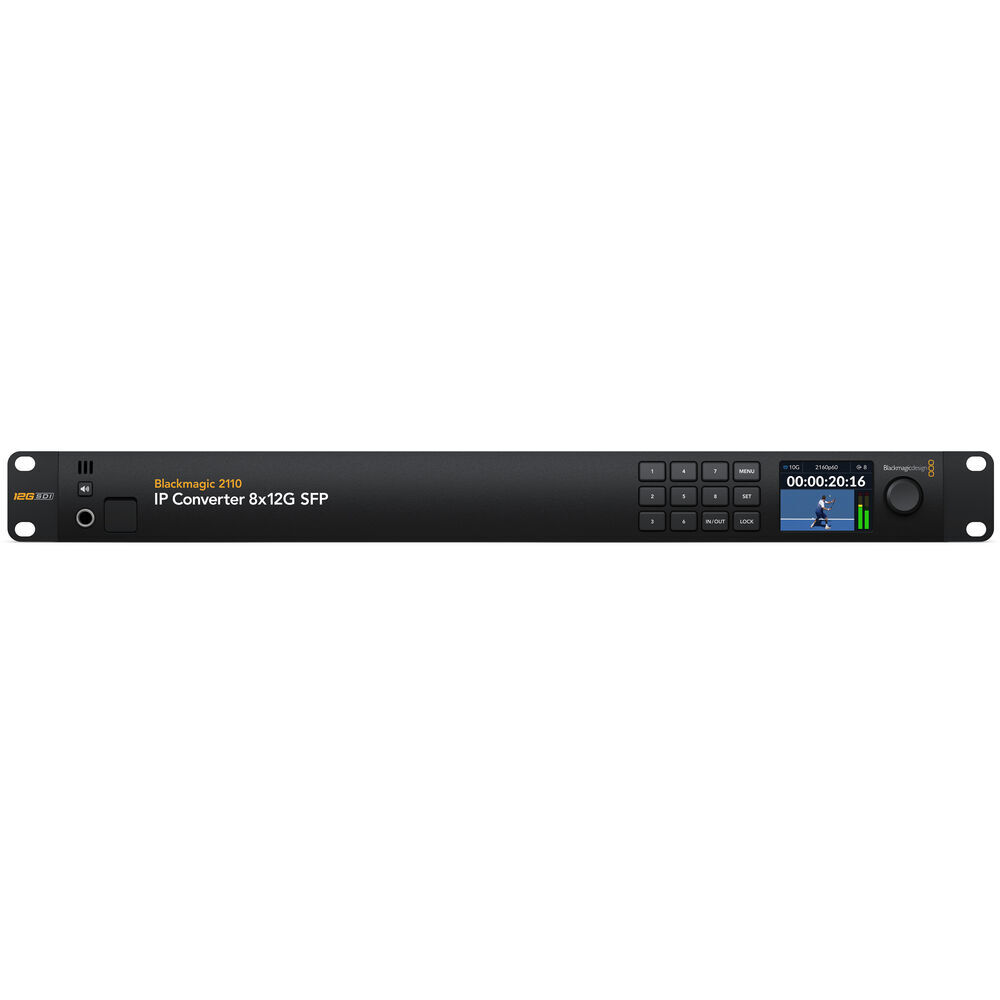

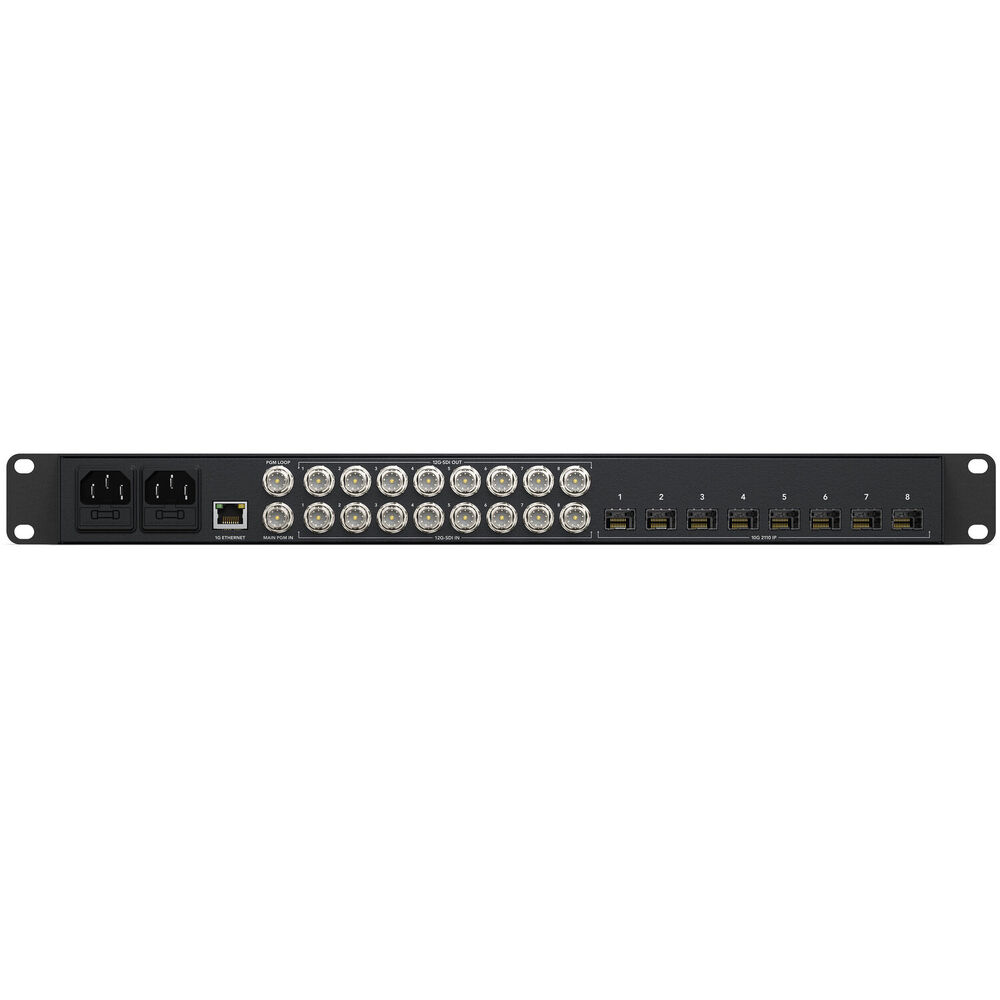

Blackmagic Design 2110 IP Converter 8x12G SFP

$4,245.00



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • Convert 8 x 12G-SDI Devices to SFP Fiber
  • 8 x SMPTE-2110 IP SFP Fiber Ports
  • UHD 4K Resolution Support
  • Redundant Power
  • 1 RU Rackmount Design

Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 8x12G SFP from Blackmagic Design. The converter provides eight bidirectional 12G-SDI video conversion connections, and it features eight SMPTE-2110 SFP IP fiber ports to extend connectivity over long distances. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input.



Specs:



Video I/O

Input
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)

Audio I/O

Output
1x 1/4" TRS Stereo Analog Female

Video Resolution

BNC Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Inputs / Outputs

Video I/O

Input
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
8x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)

Audio I/O

Output
1x 1/4" TRS Stereo Analog Female

Other I/O

Input
1x USB-C 3.0 / 3.1/3.2 Gen 1

Expansion Slots

8x SFP Slot (Occupied by 10 Gb/s SMPTE 2110 IP SFP)

Format Support

Video Resolution

BNC Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Embedded Audio

LAN (RJ45)/SDI

Standards

Video Standard Compliance

SMPTE: ST 2110-20/ST 2110-21

HDCP Support

No

HDR Compatibility

Yes

HDMI CEC

No

Hardware

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Display

2.2" LCD

Power

Power I/O

2x IEC C14 (100 to 240 VAC) Input

Environmental

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Storage Humidity

0 to 90%

General

Rack Form Factor

1 RU

Dimensions

19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm

Weight

8.22 lb / 3.73 kg

(CONVNVIPC8-12GSFP)

SKU CONVNVIPC8-12GSFP
Barcode # 9338716009125
Brand Blackmagic Design
Shipping Weight 4.0000kg
Shipping Width 0.550m
Shipping Height 0.150m
Shipping Length 0.250m
Shipping Cubic 0.020625000m3
