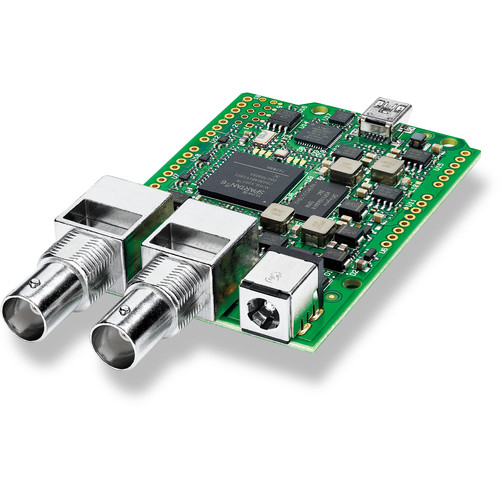

Blackmagic Design 3G-SDI Arduino Shield

$189.00
Sold Out

or 4 payments of $47.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design 3G-SDI Arduino Shield

Key Features

  • Programmable Camera Controller
  • Open-Source Arduino Platform
  • Control Camera Over SDI Program Return
  • Compatible with BMD Studio Cameras
  • Adjust Gain, Detail, Shutter, Zoom
  • Adjust Focus, Iris, Pedestal
  • Color Corrector
  • Program Using Arduino IDE
  • Requires Arduino Controller
  • Works with Other I2C BUS Controllers

Blackmagic Video Device Embedded Control Protocol

This open communication protocol takes advantage of blanking space in the SDI data stream to add talkback, tally, and other camera control information directly to the camera via the program return feed. Because of its open nature, you can create custom solutions that are compatible with switchers, cameras, and other supporting hardware

Available Controls

The following controls are supported via SDI (Note: Availability may depend on camera and lens configuration):

  • Tally
  • Gain
  • Detail
  • Shutter
  • Zoom
  • Focus
  • Iris
  • Pedestal
  • Color Balance
  • Contrast
  • Hue
  • Saturation

About Arduino

An Arduino is a controller - basically a simple computer - that can be embedded in other devices to create custom solutions. In this case, installing on the Shield. Once you have the Arduino, you can download the IDE (developer software) from the Arduino website, then load the Shield's "sample code". This will give you a feel for how the Arduino interoperates with the camera and help you get started programming

Program Using Arduino IDE

Arduino programs are called Sketches and are designed to be easy to write. You can install "sample code" via the Arduino IDE (available from Arduino's website) to get a feel for how the system works. The commands for camera control are documented in the ATEM and Studio Camera manuals (available from the Support section of the Blackmagic Design website)

I2C Bus Interface

The Arduino Shield only uses the I2C bus, which means it is also compatible with other micro controllers, including a Raspberry Pi

(CINSTUDXURDO3G)

SKU CINSTUDXURDO3G
Barcode # 9338716003987
Brand Blackmagic Design
Shipping Weight 4.0000kg
Shipping Width 0.450m
Shipping Height 0.650m
Shipping Length 0.350m
