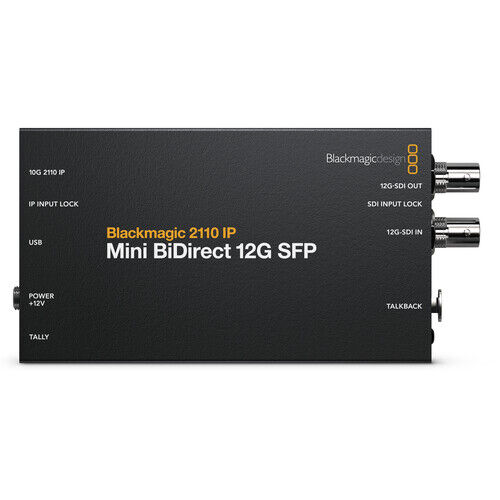

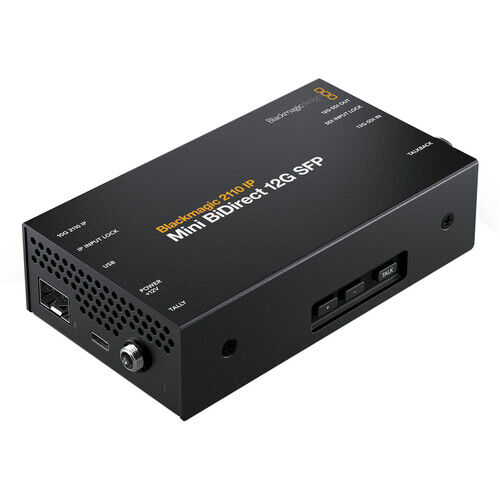

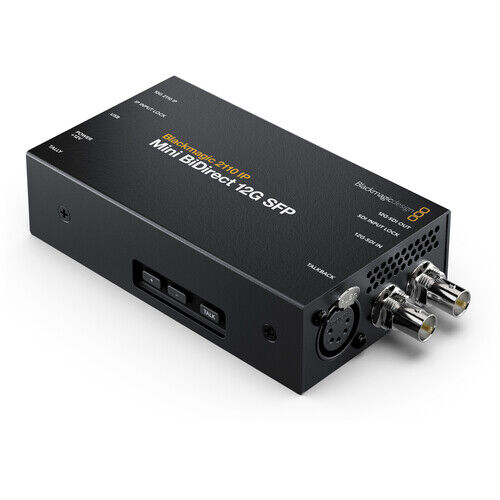

Blackmagic 2110 IP Mini BiDirect 12G SFP

$625.00
Sold Out

or 4 payments of $156.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter
  • 12 VDC Power Supply
  • Limited 1-Year Manufacturer Warranty

Key Features

  • 12G-SDI to SFP Fiber Converter
  • Video Monitoring To/From Studio Camera
  • Supports UHD 4K Video via SFP Fiber
  • Talkback Control
  • Windows/macOS Software Utility
  • PoE and 10G Ethernet Power

Features

  • This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber
  • Handles the SDI camera feed and SDI program return in the one converter
  • 5-pin XLR talkback headset connection with volume and press to talk buttons
  • Supports all SD, HD, and UHD standards up to 2160p60
  • Includes a 12 VDC power supply
  • The SFP slot will accept 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules

Blackmagic Design 2110 IP Mini Specs

Key Specs

Video I/O

Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female

Audio I/O

Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female

Video Resolution

SDI Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Inputs/Outputs

Video I/O

Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female

Audio I/O

Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female

Other I/O

Input/Output
1x RJ45 (10 GbE)
Input
1x USB-C (Firmware)

Expansion Slots

1x SFP Slot

Format Support

Video Resolution

SDI Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Embedded Audio

LAN (RJ45)/SDI

Standards

Video Standard Compliance

SMPTE: ST-2110

HDCP Support

No

HDR Support

Yes

Hardware

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Power

Power I/O

1x Barrel (12 to 16 VDC ) Input

PoE Support

PoE++ 802.3bt

Power Consumption

Device: 12 to 16 VDC (18 W)

General

Operating Conditions

41 to 104°F / 5 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C up to 90% Humidity

Dimensions

5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm

(CONVNVIPFIP12GSFP)

SKU CONVNVIPFIP12GSFP
Barcode # 9338716009149
Brand Blackmagic Design
Shipping Weight 0.5000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
