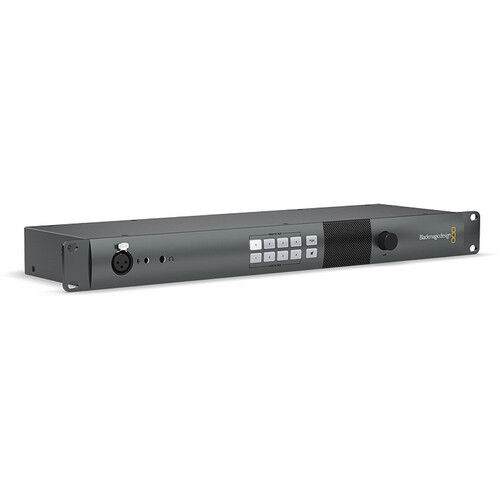

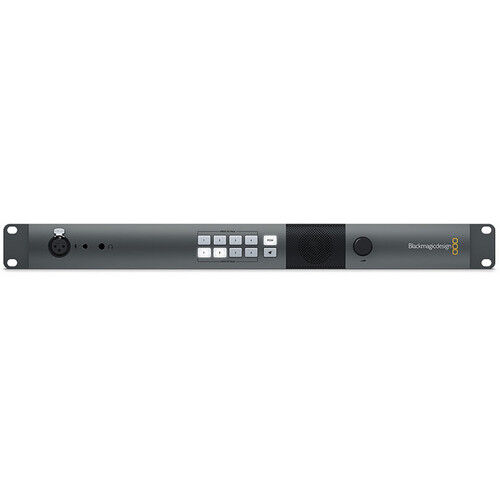

Blackmagic Design ATEM Studio Converter 2

$3,465.00
Sold Out

or 4 payments of $866.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design ATEM Studio Converter 2
  • Converter Utility Software
  • Limited 3-Year Manufacturer Warranty

Key Features

  • 4 Bidirectional Converters in 1 RU Unit
  • Optical Fiber Signal Range 28 Miles
  • Connects up to 4 ATEM Camera Converters
  • 4 x Fiber to SDI 10-bit Converters
  • 4 x Switchable SD/HD-SDI Outputs
  • Camera Talkback with Select, Vol & Mute
  • Connect to ATEM Switchers/Converters
  • Supports SDI Switcher Tally Output
  • Send PGM Feed to Fiber Connected Cameras

Optical Fiber Connectors

The ATEM Studio Converter 2 uses standard single mode optical fiber cable with standard LC connectors to allow you to transmit SD and HD video signals up to 28 miles away. Standard copper wire SDI cables have a limit of several hundred feet before the signal breaks up, converting the SDI signal to optical, and sending it along optical cable greatly increases the distance of your cable runs.

Talkback and Tally

The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or if the area is too loud. When connected to the ATEM Camera Converter, you can talk to your camera operators no matter how far away they are, without needing to worry about walkie talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication.
Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and un-mute buttons on the front of the unit allows you to control who hears what.
The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.

Multiple Units

Each ATEM Studio Converter 2 connects to up to four ATEM Camera Converter units, allowing you to communicate with up to four camera operators at a time. Multiple Studio Converter 2 units can be cascaded together when more than 4 cameras are needed.

Precision Signal Processing

The unit features chips that use 10-bit processing, and are switchable between SD and HD, for a clean signal.
The unit features four independent simultaneous SDI to optical and optical to SDI converters
When used in conjunction with the ATEM Camera Converter the unit can also be used as four independent SDI or Fiber to HDMI converters

Standards

Format Support

4K
DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98
UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98

2K
2048 x 1080p: 25/24/23.98
2048 x 1080PsF: 25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD
NTSC
525i: 59.94
PAL
625i: 50

Video

SDI Video Input

4 x 10-bit SD/HD switchable camera inputs
1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal

SDI Compliance

SMPTE 259M, SMPTE 292M

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601
REC 709

Optical Fiber Video Input

4 x single mode SD/HD switchable camera inputs with LC connector

Optical Fiber

Input
4 x single mode LC connectors for video with embedded audio
Channels 1 & 2 are camera audio
Channels 15 & 16 are talkback audio

Output
4 x single mode LC connectors for video with embedded audio
Channels 1 & 2 are camera audio
Channels 15 & 16 are talkback audio

Audio

Audio Sampling

48 kHz
24-bit A/D conversion

Analog Audio Output

4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input)
2 x RCA jacks provide a L/R stereo pair

Talkback

1 x 1/4" TRS headphone jack
1 x .206" TRS mic input for use with aviation style headset
1 x 3-pin XLR connector for talkback microphone
1 x Integrated speaker

Talkback Control

8 x Front panel buttons for camera operator selection, lock, mute and un-mute

AES/EBU Talkback Loops

Input
1 x BNC mic input
1 x BNC headphone input

Output
1 x BNC mic output
1 x BNC headphone output

General

OS Compatibility

Mac
OS X 10.7 Lion and later
OS X 10.8 Mountain Lion and later

Windows
Windows 7
Windows 8

Computer Interface

1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control

Temperature

Operating
32 to 104°F (0 to 40°C)

Storage
-4 to 113°F (-20 to 45°C)

Power Requirements

110 - 220 VAC, 50/60 Hz
12 - 31 VDC redundant input

Note: IEC power cord is required/not included, redundant power supply not included

Dimensions

1.7 x 18.9" (44 x 482 mm)
1 RU size with built-in rackmount ears

Weight

4 lb (1.81 kg)

(SWRCONVRCK2)

SKU SWRCONVRCK2
Barcode # 9338716001983
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
