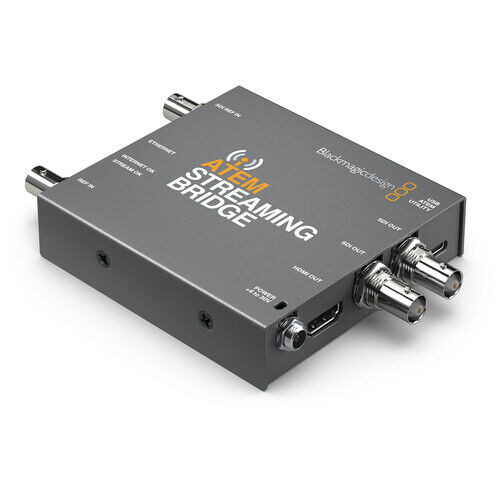

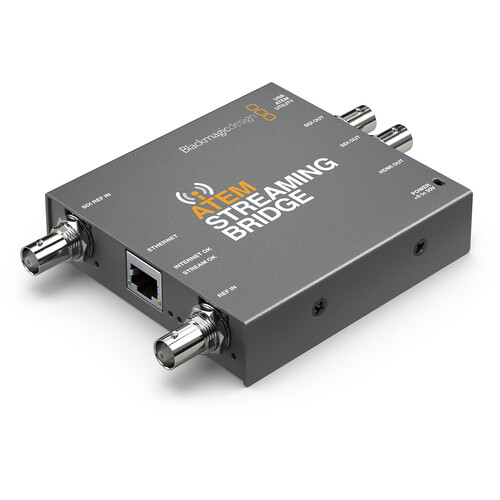

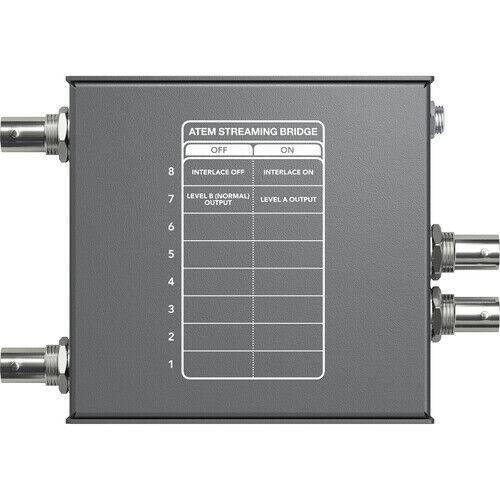

Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers

$439.00
Sold Out

or 4 payments of $109.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
  • Universal Power Supply with International Adapters
  • Limited 1-Year Warranty

Key Features

  • For Any ATEM Mini Pro Streaming Switcher
  • HDMI and SDI Outputs
  • Up to 1080p60 Resolution Output
  • Direct, Network, and Internet Connection
  • IP Addressable, Software Controllable

Key Specs

Video I/O

Output
2x BNC (3G-SDI)
1x HDMI 1.4

Video Resolution

HDMI Output
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
SDI Output (10-Bit 4:2:2 YUV)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps

Broadcast System Compatibility

NTSC

IP Video

Decoding via H.264
1920 x 1080

Inputs/Outputs

Video I/O

Output
2x BNC (3G-SDI)
1x HDMI 1.4

Other I/O

Input/Output
1x RJ45
2x BNC (Reference)

Expansion Slots

No

Format Support

Video Resolution

HDMI Output
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
SDI Output (10-Bit 4:2:2 YUV)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps

Reclocking

No

Standards

Video Standard Compliance

SMPTE: 259M/292M/296M/424M-B/425M-A/425M-B

HDR Support

No

Broadcast System Compatibility

NTSC

IP Streaming

IP Video

Decoding via H.264
1920 x 1080

Power

Power I/O

1x Barrel (6 to 30 VDC ) Input

Power Consumption

Device: 6 W

(SWATEMMINISBPR)

SKU SWATEMMINISBPR
Barcode # 9338716006841
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
