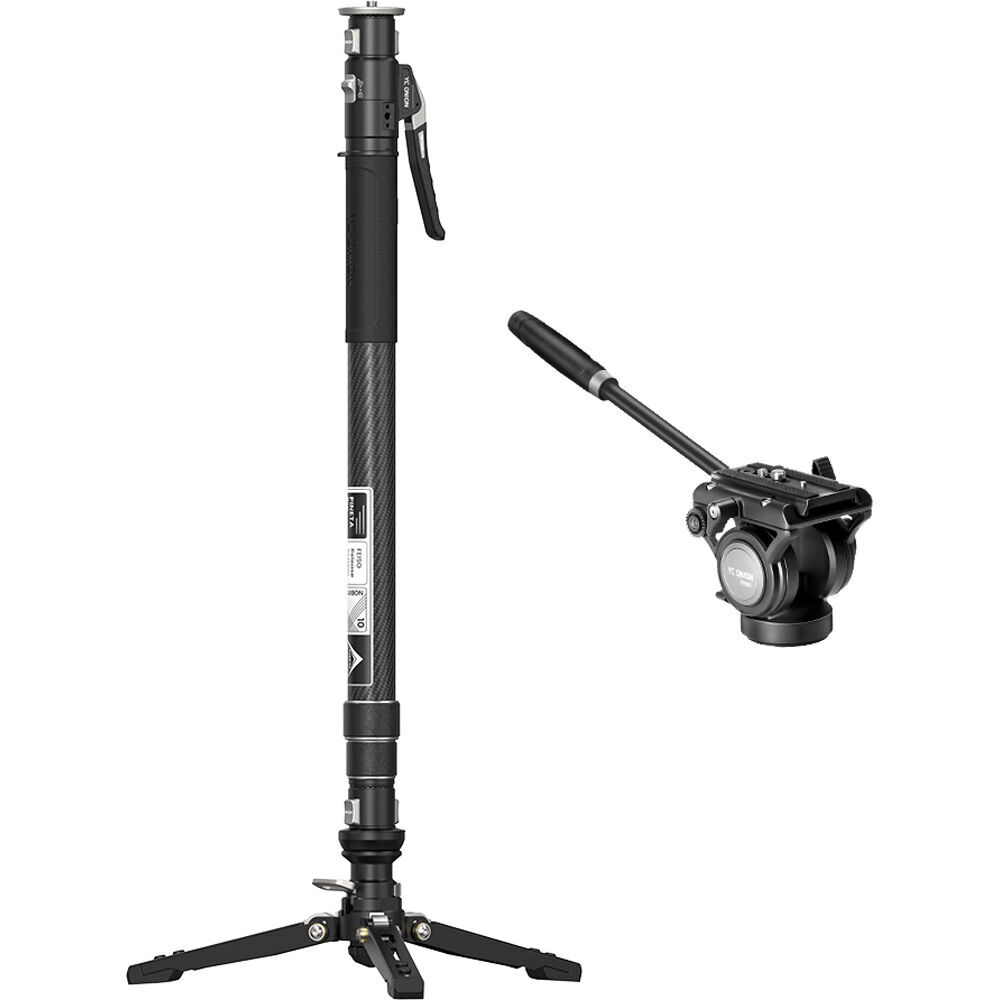

YC Onion Pineta Pro Carbon Fiber Monopod with Pedal Base and FH60S Fluid Head
Features
- Load Capacity: 6 kg
- Maximum Height: 172.5 cm
- Folded Length: 88.4 cm
- Brake Lever Style Release
- Folding Articulated Tripod Base
- Fluid Head with Quick Release Plate
- Weight: 2.6 kg

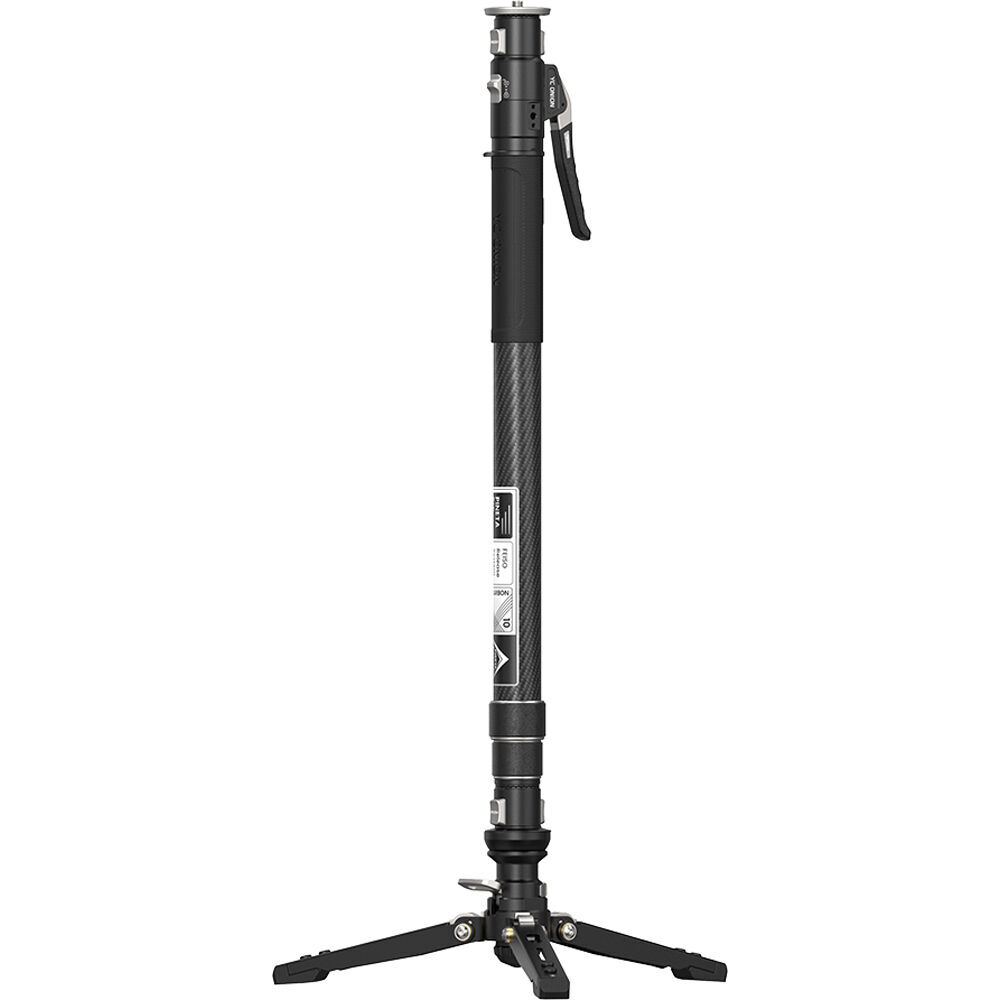

YC Onion Pineta Pro Carbon Fibre Monopod with Pedal Base and FH60S Fluid Head

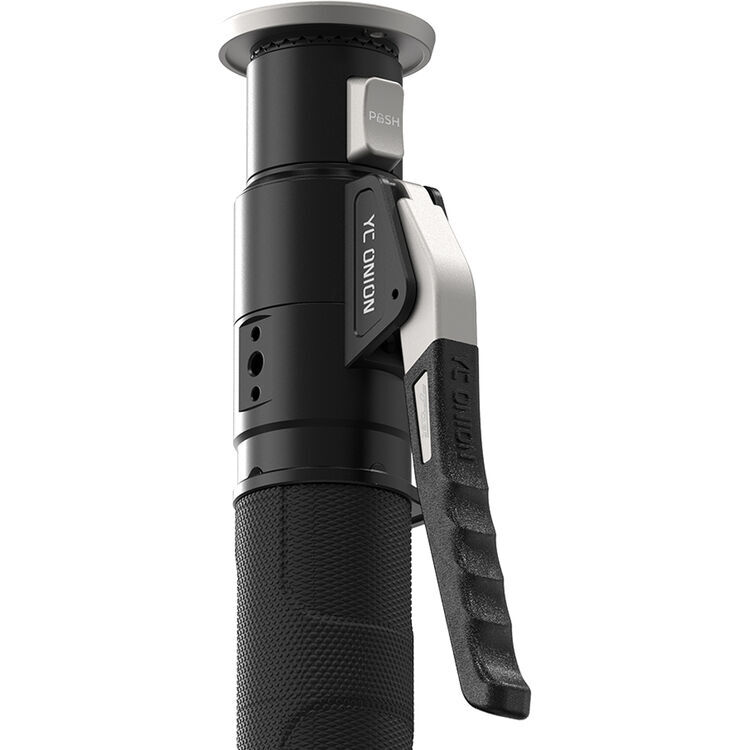

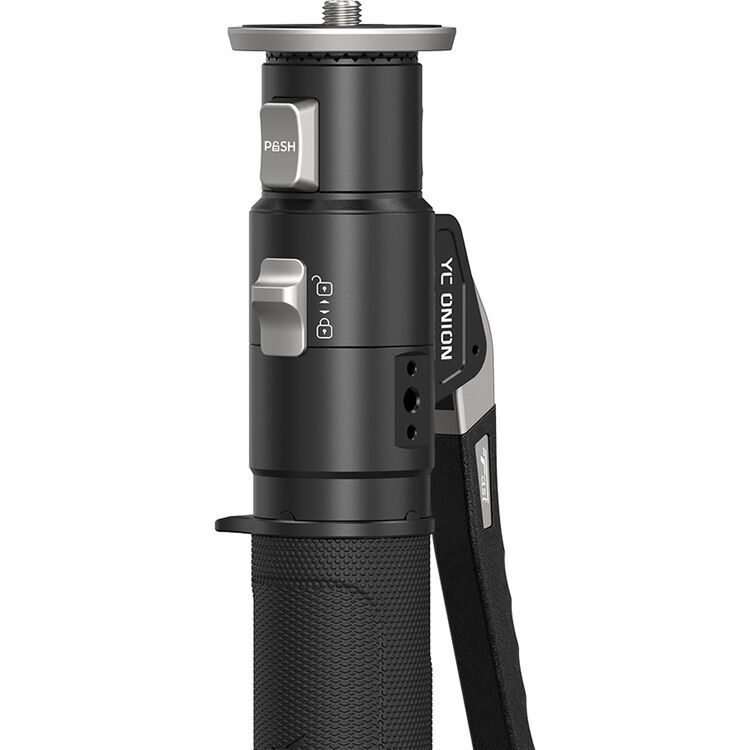

The YC Onion Pineta Pro is a carbon fibre monopod system built for fast, one-handed setup. A single pro-style ergonomic brake lever extends, positions and locks all three leg sections and the tripod foot base in one motion, with a lock button for added security. It reaches a maximum height of 172.5 cm and folds down to a compact 88.4 cm, making it easy to store or carry on the move. Paired with the FH60 fluid head, the system supports up to 6 kg. An ARRI-style 1/4"-20 mounting thread lets you attach extra accessories to suit your setup.

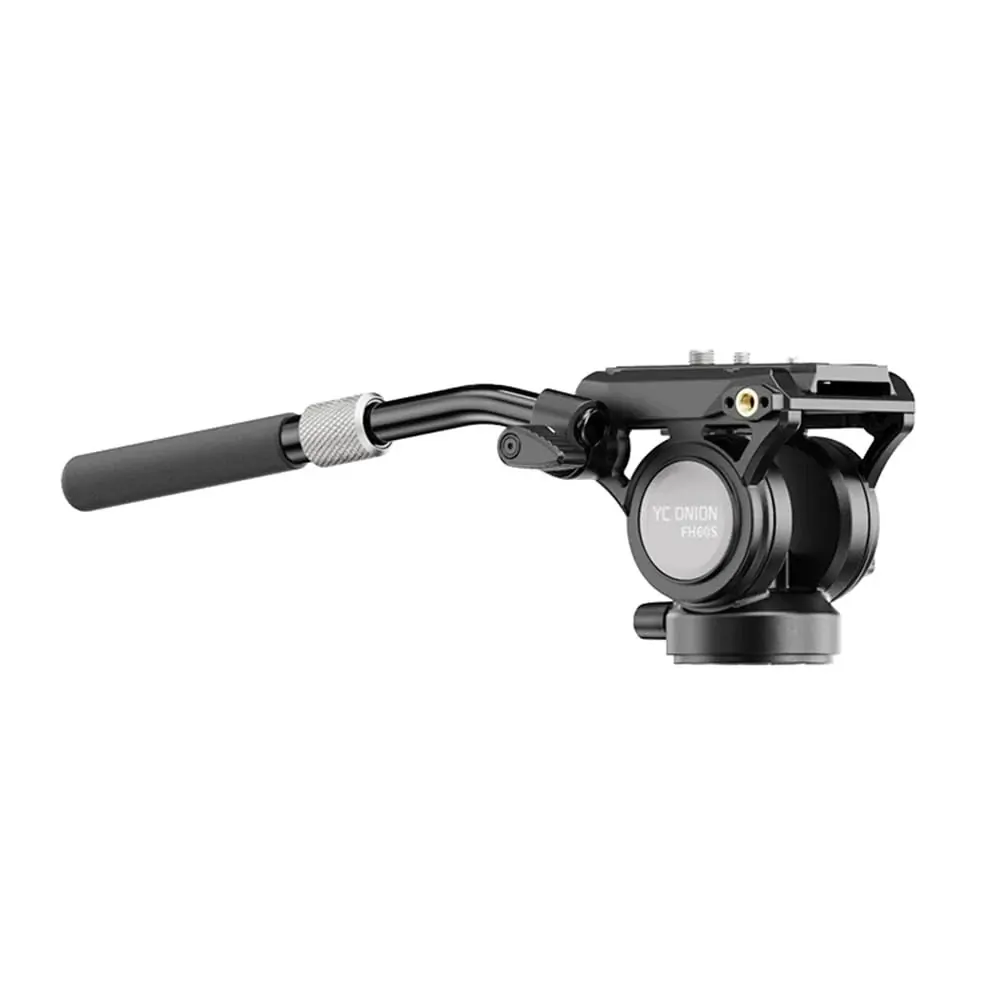

YC Onion FH60S Fluid Head
The FH60S is a 60 mm flat-base fluid head made from durable, lightweight aluminium, with continuously adjustable drag for smooth, controlled movement. It offers a full 360° pan and tilts from +90° to -70°, with a load capacity of up to 6 kg. A side-load quick release plate is included, and the head also accepts the Manfrotto-style quick release plate used on the DJI RS 2, RS 3 and RS 4 gimbals, so you can move between gimbal and tripod without swapping plates. It's compatible with any tripod that accepts a 60 mm flat-base fluid head.

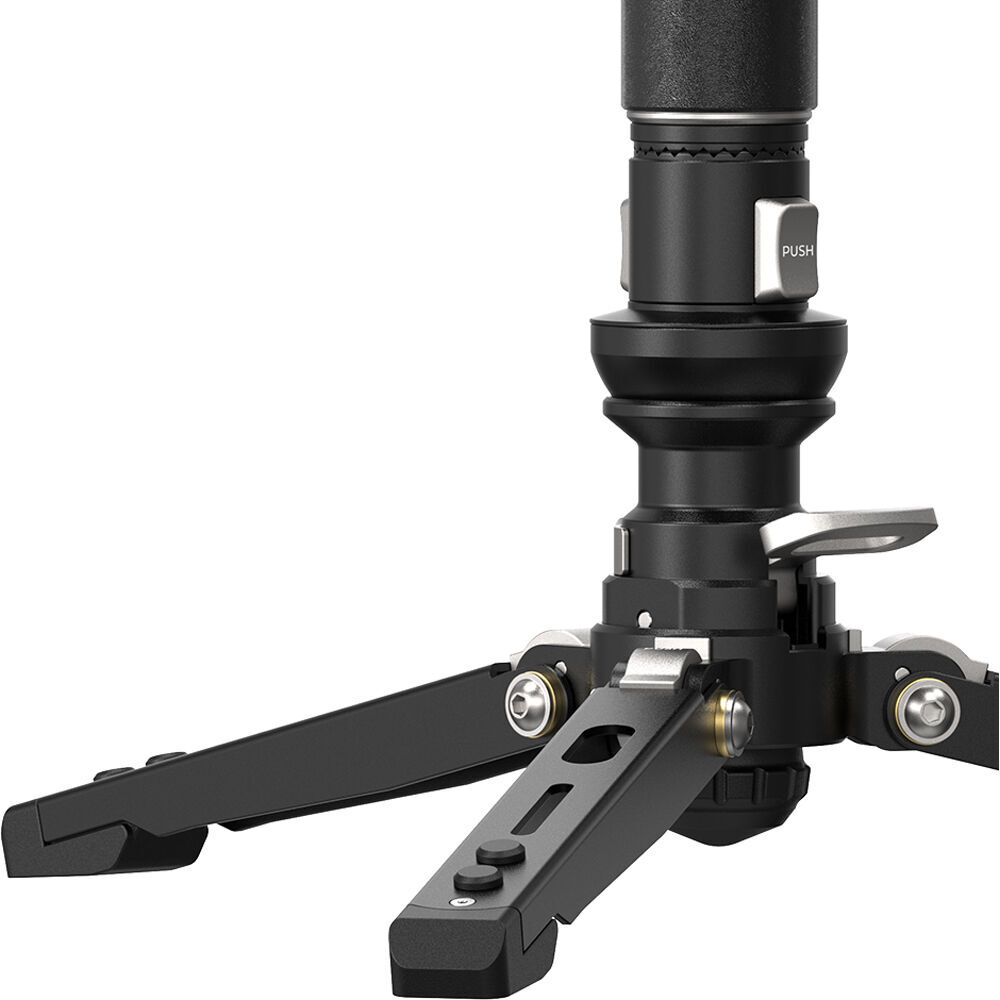

YC Onion Pineta 2.0 Pedal Base
Designed for the Pineta monopod range, the Pineta 2.0 Pedal Base also works as a standalone tripod for tabletop or low-angle shooting. A foot pedal lets you swivel through a full 360°, while an adjustable rotating collar controls the resistance when panning or tilting. The adjustable feet can be set at two angles to change the working height, or folded up to reduce the base's footprint. A removable rubber foot attaches to the centre of the base via a 3/8"-16 screw.
I've kept the 1/4"-20 and 3/8"-16 thread sizes as they are, since those are standard thread designations rather than measurements, and switched to Australian spelling (fibre, aluminium, centre).
Specs
| Top Mounting |
Fixed Platform with Reversible 1/4"-20 or 3/8"-16 Screw |
| Primary Material |
Carbon Fiber |
| Load Capacity |
22 lb / 10 kg |
| Working Height |
Up to 62" / 158 cm |
| Closed Length |
31" / 79 cm |
| Weight |
3.92 lb / 1.78 kg |
| Top Mounting |
Fixed Platform with Reversible 1/4"-20 or 3/8"-16 Screw |
Leg
| Primary Material |
Carbon Fiber |
| Sections/Locking |
3 Sections with Twist Lock |
| Foot Features |
Removable, Wide Feet |
General
| Load Capacity |
22 lb / 10 kg |
| Working Height |
Up to 62" / 158 cm |
| Closed Length |
31" / 79 cm |
| Accessory Mounting |
1x ARRI Accessory Mount Female |
| Bubble Level |
No |
| Weight |
3.92 lb / 1.78 kg |
Specs
| Top Mounting |
501 Type Sideload Quick Release Plate with 1/4"-20 & 3/8"-16 Screws |
| Head Type |
Fluid Head |
| Load Capacity |
13.2 lb / 6 kg |
| Weight |
26.3 oz / 745 g |
| Top Mounting |
501 Type Sideload Quick Release Plate with 1/4"-20 & 3/8"-16 Screws |
FH60S Video Head
| Head Type |
Fluid Head |
| Base Mount |
Flat Base with 3/8"-16 Female |
| Pan & Tilt |
Pan & Vertical Tilt Only with Independent Pan & Tilt Locks |
| Dimensions |
Base Diameter: 2.4" / 60 mm |
General
| Load Capacity |
13.2 lb / 6 kg |
| Accessory Mounting |
1x ARRI Accessory Mount Female |
| Bubble Level |
Yes |
| Weight |
26.3 oz / 745 g |
What's in the box:
YC Onion Pineta Pro Carbon Fibre Monopod with Pedal Base
- 1 x Pineta Pro Carbon Fibre Monopod
- 1 x Pineta 2.0 Pedal Base
- 1 x Rubber Foot
- 1 x Screw Set
- 1 x Allen Key
- 1 x Carrying Bag
YC Onion FH60S Fluid Head
- 1 x FH60S Fluid Head
- 1 x Pan Handle
- 1 x Quick Release Plate (Manfrotto-Style)
- 1 x 1/4"-20 Screw
- 1 x 3/8"-16 Screw
(MQP16260S)
| SKU | MQP16260S |
| Barcode # | 6973014096281 |
| Brand | YC Onion |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.850m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.034000000m3 |
