Wooden Camera Nikon D810/D800 Unified Accessory Kit (Pro)

$1,749.00


or 4 payments of $437.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 3, 637 Princes Highway, Blakehurst, NSW 2221.

Description



The Nikon D810/D800 Unified Accessory Kit (Pro) is a camera support package designed for the Nikon D810 and D800 cameras. The D810/D800 accessory package features our Unified DSLR Cage (Large), a form fitting camera cage for secure camera accessory attachment with integrated rod support that holds two 15mm Rod (6") at the correct lens height, Unified DSLR 15mm Baseplate, a quick release baseplate that holds two 15mm Rod (9"), Safety Dovetail (12") which interfaces with the ARRI dovetail slot on the bottom of the Unified Baseplate, A-Box (DSLR) for XLR audio inputs, Ultra Arm Monitor Mount (1/4-20 To 1/4-20, 3"), an articulating arm with multiple mounting points for accessories, and our Rod Clamp (15mm LW) attaches the Battery Slide to the 15mm LW rods. The Battery Slide is an adjustable battery plate for attaching a V-Mount or Gold Mount plate to the camera.

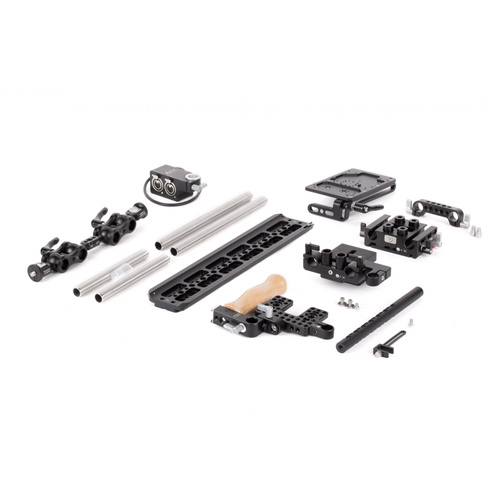

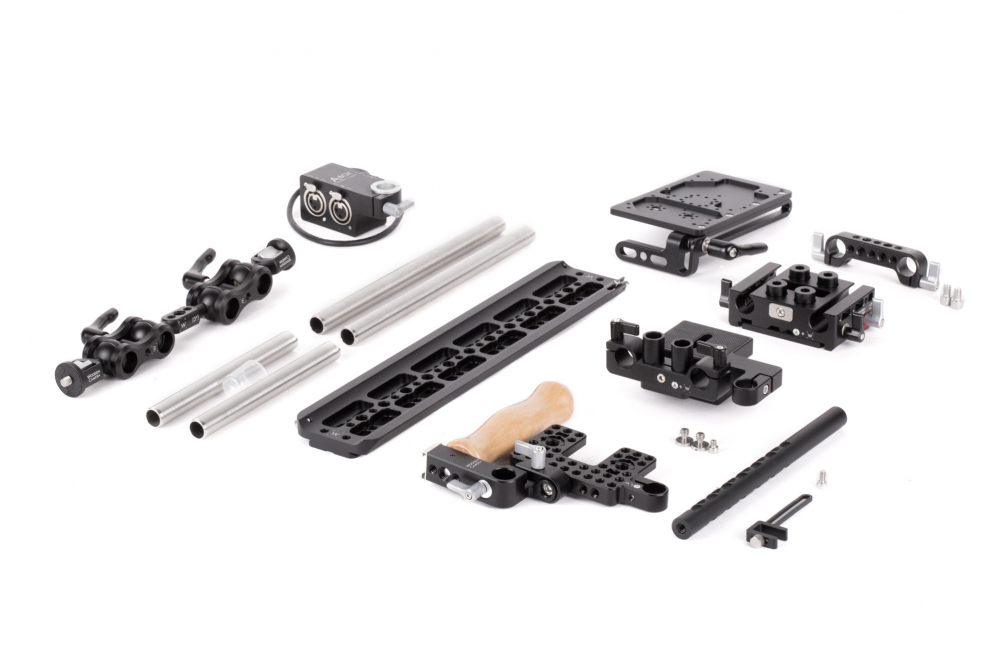

Included Items:

  • Unified DSLR Cage (Large)
  • Unified DSLR 15mm Baseplate
  • 2x 15mm Rod (6")
  • 2x 15mm Rod (9")
  • Ultra Arm Monitor Mount (1/4-20 To 1/4-20, 3")
  • Safety Dovetail (12")
  • A-Box (DSLR)
  • Rod Clamp (15mm LW)
  • Battery Slide


Specifications:

  • Weight: 2721.55 g (6 lbs)
  • Dimensions: 406.4 x 177.8 x 177.8 mm

Features:

Unified DSLR Cage (Large)
A quick release, height adjustable cage that fits larger DSLR cameras like Canon 1DC, 1DX, 1DX mkII, 1DmkIV, 1DmkIII, Nikon D4, D3x, and many cameras with battery grips installed. The open shoe mount area allows for hot shoe accessories to be installed without obstruction. The minimalist design gives you mounting points on the top and side while leaving all of the camera's vital controls on the right grip and left side easily viewable and accessible.

The cage includes a reversible top handle which can be repositioned over the lens area when an XLR adapter is in use. Built into the handle is a cold shoe mount and a 15mm tube clamp for mounting any of our UVF Mount kits used with 3rd party electronic viewfinders. The handle can also fold down when packing your bag and can even be reconfigured onto the left, vertical 15mm rod for a secondary grip!

Cameras with fold-out LCD screens can be positioned easily and an included HDMI cable clamp can be mounted to the vertical rod to secure video cables and prevent port damage.

The Unified DSLR Cage (Large) includes a height adjustable 15mm lightweight rod clamp for positioning 15mm rods at the correct distance to the centre of the lens, ensuring compatibility with standard matteboxes and follow focus units.

Unified DSLR 15mm Baseplate
A height adjustable baseplate attachment that provides 15mm lightweight rods at the correct lens height for DSLR cameras when combined with Unified DSLR Cage (Small) or Unified DSLR Cage (Medium). The Unified DSLR 15mm Baseplate has a native ARRI dovetail interface for direct mounting to our 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. The included Lower Quick Dovetail portion can be attached to any tripod plate or ARRI standard bridge plate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio) providing studio rods at the correct lens height.

Ultra Arm Monitor Mount (1/4-20 to 1/4-20, 3")
An articulating arm with two sets of 25mm (1 inch) double ball joints which allow a monitor or accessory to be positioned in just about any orientation. Tool-less 1/4-20 knobs on each end with non-slip rubber pads make setup quick and easy. Black centre thumbscrews ratchet to allow for easy positioning. The 3" title refers to the centre extension length but actual length fully extended measures 240mm (9.4 inches).

Safety Dovetail

ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment.

15mm Rods
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors, and more.

A-Box (DSLR)
Made for DSLRs and any camera with single 3.5mm input (also referred to as 1/8"). A-Box (DSLR) adapts two industry standard XLR male plugs to one right angle 3.5mm stereo plug.

Battery Slide

Battery Slide is an adjustable mounting system for WC V-Mount, WC Gold Mount, QRC Gold Mount, and RED/Blueshape style battery plates. Rows of pass through holes allow attachment of Rod Clamps, cheeseplates, and more. Apply firm pressure to tilt the plate in place. Loosen the thumbscrew to slide the plate up and down and also tilt. Great for adjusting counterbalance and for transitioning from studio to handheld mode.

Rod Clamp (15mm LW)
Rod Clamp (15mm LW) can attach to existing 15mm rods to provide 1/4-20 mounting points. It can also be turned over and bolted to cheeseplates, cages, battery plates, and more. Extremely versatile, compact, and lightweight.



(3010112338639)

SKU 3010112338639
Brand Wooden Camera
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.300m
