Vaxis Storm 800 Wireless Transmission System

$2,299.00


or 4 payments of $574.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.
Items Included

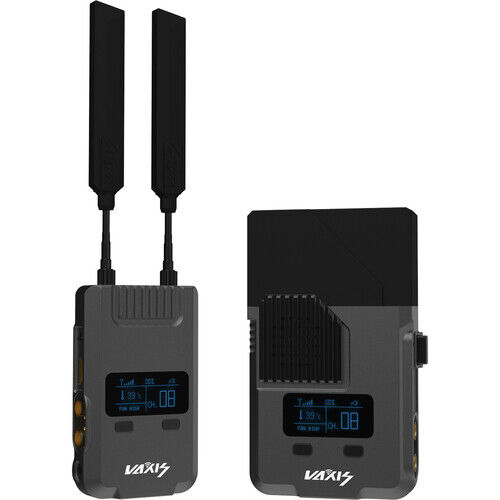

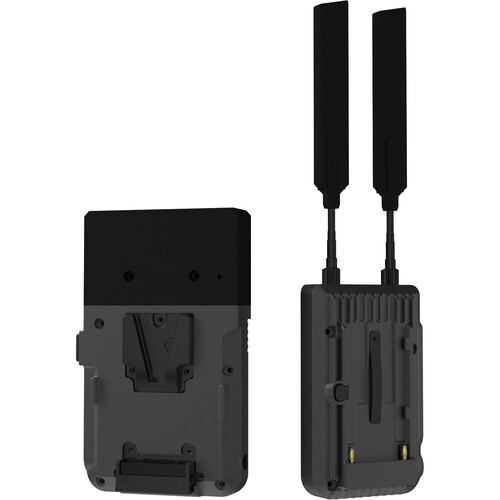

  • Vaxis Storm 800 Wireless Transmission System
  • Transmitter
  • Receiver
  • Flight Case
  • Power Cable
  • SDI Cable
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Transmitter and Receiver Set
  • Up to 853' Line-of-Sight Transmission
  • Supports up to 1080p60 Video
  • 3G-SDI and HDMI Inputs/Outputs
  • 2-Pin LEMO Power Input
  • Multicast to Multiple Receivers
  • Works with Select Vaxis Storm Units
  • V-Mount Plate on RX, L-Series on TX
  • <1 ms Latency, LCD Screen
Versatile I/O
The transmitter features one 3G-SDI input, one 3G-SDI loop output, and one HDMI input, while the receiver has one HDMI output and two 3G-SDI outputs.

Power Options
The units can be powered using the integrated 2-pin LEMO connector, and each unit has a micro-USB power input port as well. In addition, the receiver features an integrated V-mount battery plate, and the transmitter features a built-in L-series/NP-F battery plate.

Manual Frequency Selection
The Storm 800 offers 20 channels using the 20 and 40 MHz bands, allowing you to find a clean channel to use. This also allows you to work with multiple pairs of Vaxis Storm transmitters and receivers without interfering with each other's signals.

Compatibility
The transmitter supports multicasting to multiple receivers, and in addition, the Storm 800 is compatible with all Storm systems, including the 072 PRO, 058 PRO, and CINE 8.
Additional Details
  • Each unit features a bright, clear LCD
  • Each unit has a cooling fan that vents to the side to avoid overheating your camera or monitor
  • Built-in antennas



Key Specs
Video I/O
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Receiver: 2x BNC (3G-SDI) Output
Receiver: 1x HDMI (Unspecified Signal) Output
Embedded Audio
SDI: 2-Channel
HDMI: 2-Channel
Wireless
5G
Latency
< 1 ms
Video Format
HDMI/SDI
1080p: 60/59.94/50/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/50
Battery
Receiver: 1x V-Mount on Fixed Plate
Transmitter: 1x L-Series Mount on Fixed Plate

Inputs/Outputs
Antenna I/O
Receiver: 1x Internal
Transmitter: 2x RP-SMA (External)
Video I/O
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Receiver: 2x BNC (3G-SDI) Output
Receiver: 1x HDMI (Unspecified Signal) Output
Embedded Audio
SDI: 2-Channel
HDMI: 2-Channel
Audio I/O
: 1x 1/8" / 3.5 mm Headphone Output
Power I/O
Transmitter: 1x LEMO 2-Pin Input
Transmitter: 1x Micro-USB Input
Receiver: 1x LEMO 2-Pin Input
Receiver: 1x Micro-USB Input

Wireless
Wireless
5G
Wireless Range
853' / 260 m (Line-of-Sight)
# of Channels
20
Frequency Range
5.1 to 5.9 GHz
Latency
< 1 ms
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
Yes: Android & iOS
Cellular Support
No

Format Support
Video Format
HDMI/SDI
1080p: 60/59.94/50/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/50
Audio Format
Not Specified by Manufacturer
Wireless Video Compression
Uncompressed
Timecode Support
Yes

Power
Input Power
7 to 36 VDC
Battery
Receiver: 1x V-Mount on Fixed Plate
Transmitter: 1x L-Series Mount on Fixed Plate

Mounting
Tripod/Accessory Mounting
Transmitter/Receiver
1x 1/4"-20 Female

General
Status Display
On Transmitter & Receiver
Environmental Resistance
No
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
Transmitter: 4.5 x 2.7 x 1" / 115 x 69.5 x 24.5 mm
Receiver: 6.2 x 3.6 x 1" / 156.5 x 91.5 x 24.5 mm
Weight
Transmitter: 9.1 oz / 259.00 g
Receiver: 15.34 oz / 435.00 g

(VAVXVS258TR1)

SKU VAVXVS258TR1
