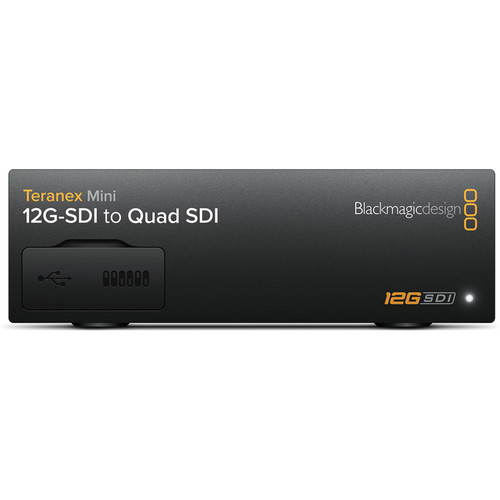

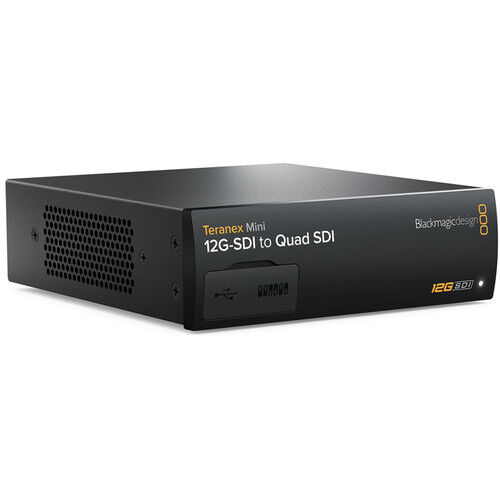

Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter

$935.00
Sold Out

or 4 payments of $233.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
  • SD Card with Configuration Software
  • Limited 3-Year Manufacturer Warranty

Key Features

  • 1 x 12G-SDI Input, 12G-SDI Loop Output
  • 4 x 3G-SDI Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 16-Channel, 24-Bit, 48 kHz Audio Support
  • Control via DIP Switches or Software
  • Power via PoE or IEC C14 Power Cable
  • Ethernet or USB for Firmware Updates

Connecting the unit via Ethernet enables you to use the included control software to make adjustments to fit your needs, as well as power the unit via PoE (Power-over-Ethernet). DIP switch controls and a USB configuration port are also available on the front panel.

OS Compatibility

macOS 10.14 Mojave, macOS 10.15 Catalina or later
Windows 8.1 and 10

Blackmagic Design Teranex Mini Specs

Inputs/Outputs

Video Inputs

1x BNC Female

Audio Inputs

No

Video Outputs

4x BNC (3G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)

Audio Outputs

No

Other I/O

1x RJ45 LAN, PoE Input/Output
1x USB-A Firmware Input

Expansion Slots

No

Format Support

Input Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K at 23.98/24/25 fps
DCI 2KPsF at 23.98/24/25 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Output Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps

Embedded Audio

SDI: 16-Channel

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

HDR Support

Not Specified by Manufacturer

Hardware

Wireless

No

Power

Power I/O

1x IEC C14 Input

PoE Support

PoE+ 802.3at

Power Consumption

Device: 90 to 240 VAC (16 W)

Environmental

Operating Temperature

32 to 72°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

General

Dimensions

6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm

Weight

1.28 lb / 581 g

(CONVNTRMDBSDIQD)

SKU CONVNTRMDBSDIQD
Barcode # 9338716003499
Brand Blackmagic Design
Shipping Weight 0.5000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
