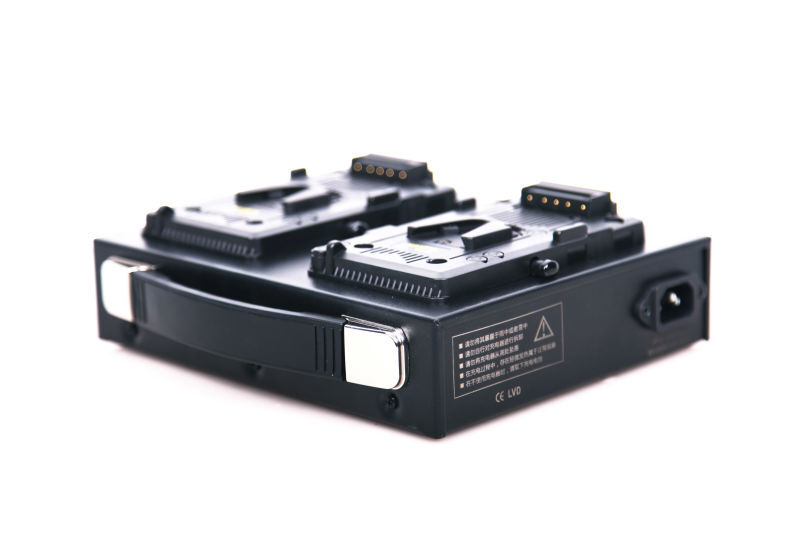

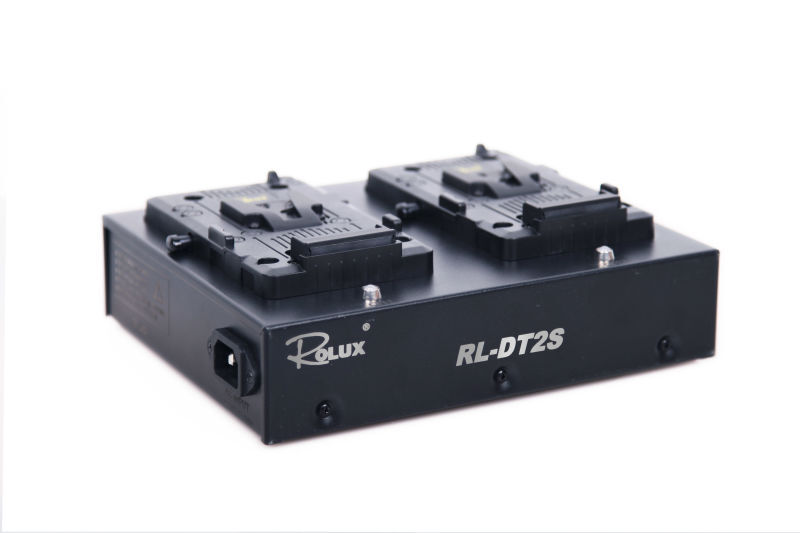

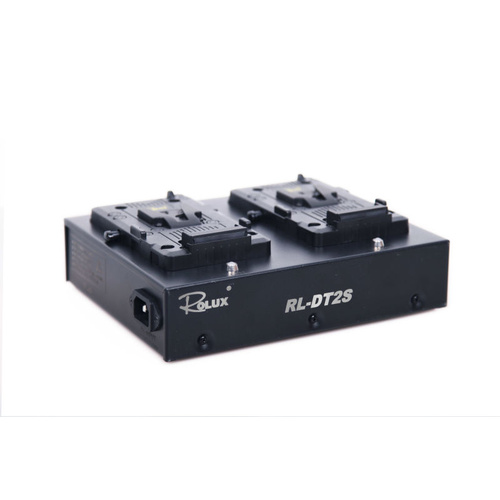

Rolux 2-Channel V Mount Battery Charger
The operation instructions of product
Connect the 90-250V AC power supply with the power cable, the red power indicator stays on in red, and the indicator of each channel stays on in green.
Insert the battery to be charged, and the indicator of the corresponding channel will turn red and steady on.
After charging is completed, the indicator of the corresponding channel will turn green and steady on.
<Adapter use> (Check the power polarity before use, 1-, 4+)
(1) Connect the 90-250V AC power supply with the power cable. The device can be powered through the 4pin-XLR output interface, with output voltage of 12V.
(2) When there is no AC current or AC fault, connect the fully charged battery and it can output 12V regulated power.
When the battery output voltage is lower than 13V, the red power indicator will flash, please replace the battery as soon as possible to avoid powering down the device.
Keep the charger away from weathers.
Do not disassemble the charger under any circumstances.
Do not drop the charger from height.
It is normal to have slight heat during charging.
When the charger is not used, please disconnect the power supply and remove the rechargeable battery.
Input power: 90-250VAC/ 47-63Hz
Charging port output: 16.8V/ Max 2.5A
Adapter port output: 12V/6A
Weight: 1820g (exclusive of cable)
Working temperature: -10 ° C ~ 40 ° C
