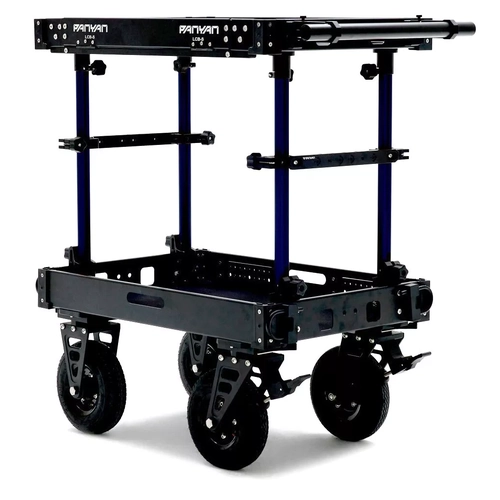

PanYan S9 Aluminum Infantry Cart Small (800w x 600D x 1200H)
1* Upper Layer 1* Down Layer 2* Black Mouse Pad 2* Universal Wheel 8" 2* Directional Wheel 8" 2* Luggage WheeL 4* Lock 4* Support Stand 4* Pipe Clamp 2* Cross Bar 1* Quick Release Handrail
-->Features:
-
Average Assembly/Disassembly Time: 2–5 minutes
-
Spring-loaded latch system secures the cart when collapsed. You can also add your own padlocks for extra security.
-
Rubberised release collars on the cart posts provide a better grip for easier assembly and disassembly.
-
Rivet-free, weld-less construction for enhanced strength and reliability.
-
Wider Handle designed for improved comfort.
-
Side handle cutouts make loading and unloading the collapsed cart easier.
-
Two cross bars with 3/8"-16 mounts for accessory attachments are included.
-
Upright posts lock securely in place and will not loosen over time.
-
Customized color coat finish options available on both top and bottom shelves.
-
Various accessories available.
Specifications
-
Working dimensions (without handrails): 750 × 500 × 980 mm
-
Working dimensions (with armrest): 910 × 500 × 980 mm
-
Height between upper and lower boxes: 585 mm
-
Internal dimensions of upper and lower boxes: 725 × 473 mm
-
Folded storage dimensions: 750 × 500 × 185 mm
-
Wheel-to-floor height: [please provide value]
-
Packaging dimensions: 850 × 555 × 325 mm
-
Single-layer load capacity: 150 kg
-
Total load capacity: 300 kg
Assembly Checklist
-
Upper Tray × 1
-
Lower Tray × 1
-
Black cushions × 2
-
8-inch freewheel × 2
-
8-inch directional wheels × 2
-
Lock buckles × 4
-
Supporting legs × 4
-
Pipe clamps × 4
-
Horizontal bars × 2
-
Quick-release handle× 1
(LCB-S901)
| SKU | LCB-S901 |
| Brand | PanYan |
| Shipping Weight | 43.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.800m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.960000000m3 |
| Unit Of Measure | each |
12 month warranty
