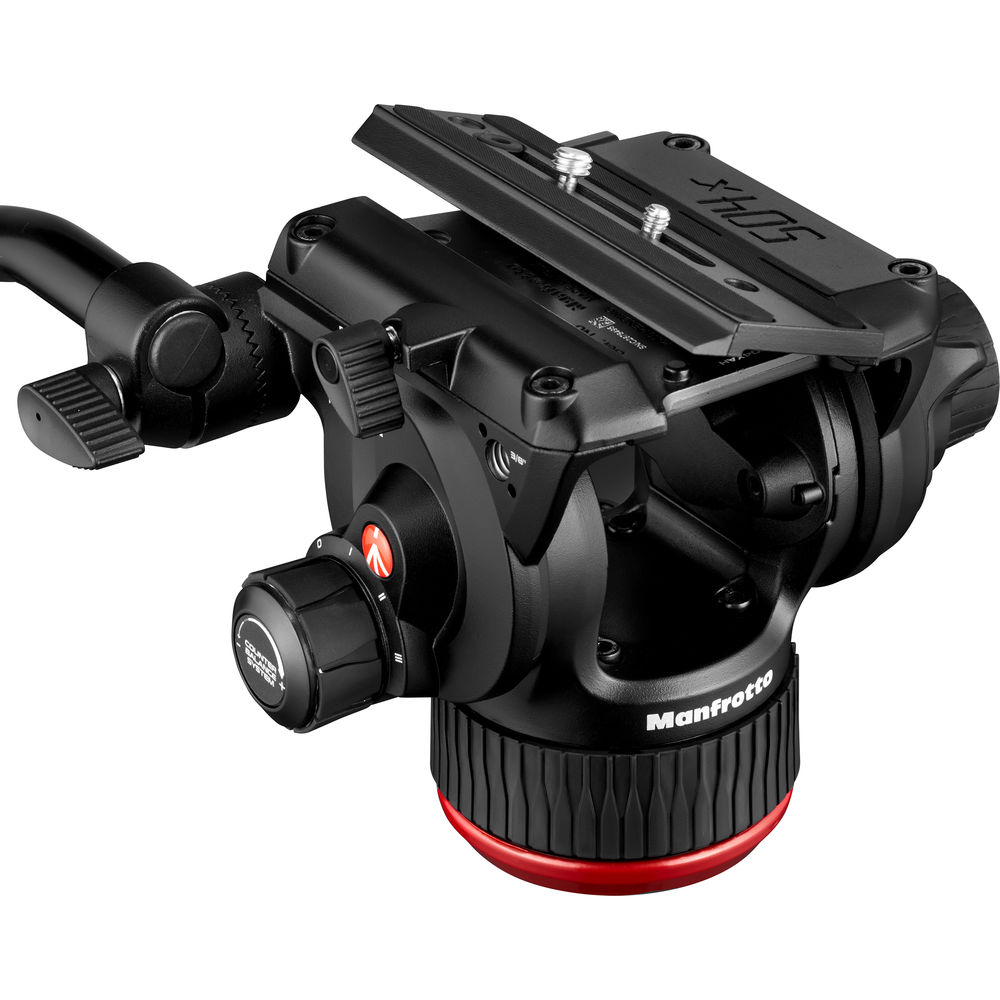

Manfrotto 504X Fluid Video Head with Flat Base

MVH504XAH

$699.00


or 4 payments of $174.75 with Info



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

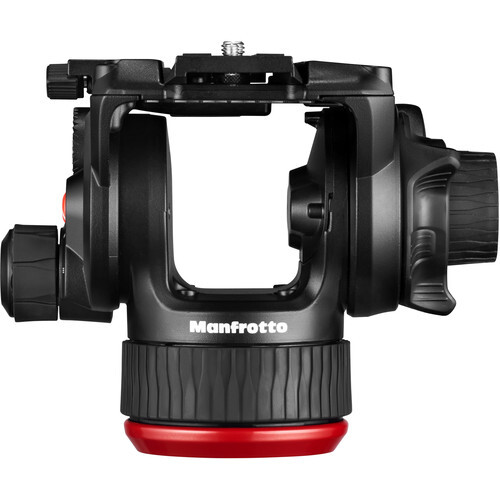

The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.

With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.

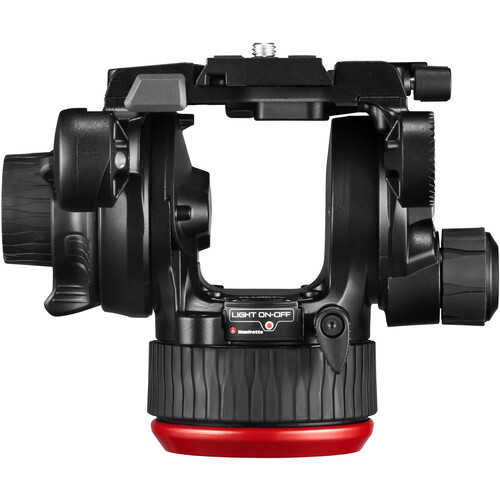

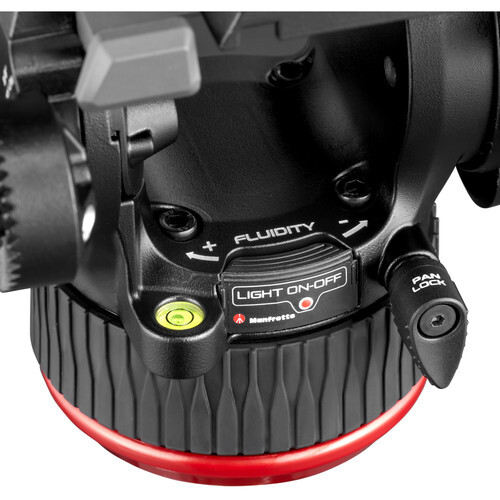

At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

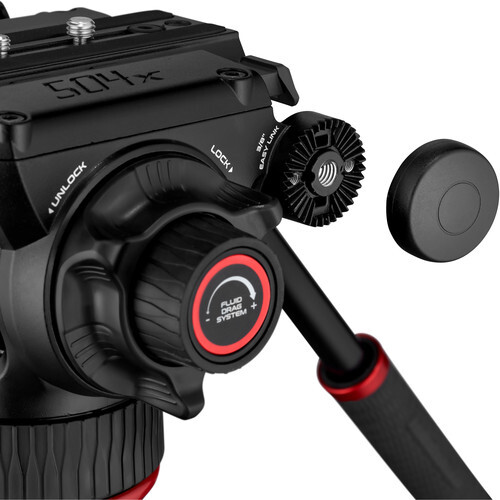

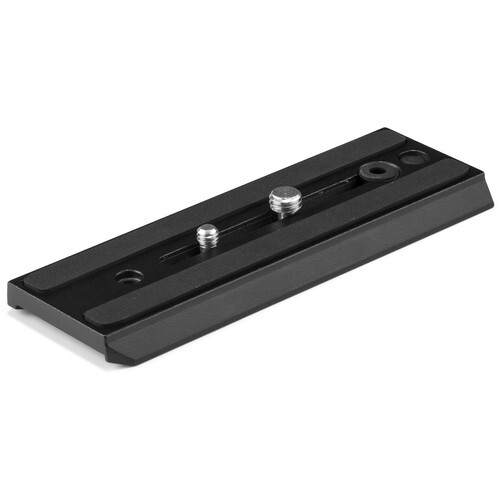

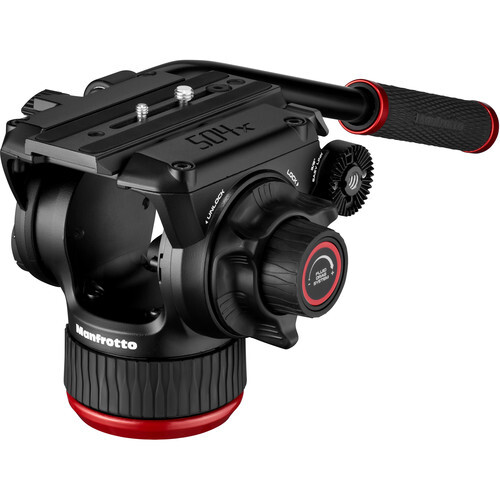

Whether you're using a pro camcorder or an accessorized DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminum and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.

Features:

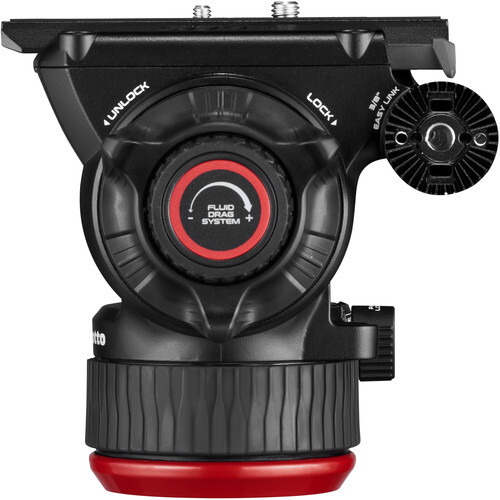

Fluid drag system for precise, smooth movements
Wide top surface and long sliding plate for extra stability and balance while using video or photo equipment

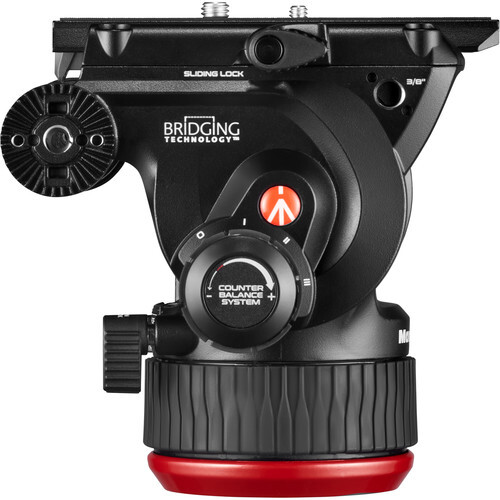

Four-step counterbalance system ensures quick setup and optimal performance
Rigid structure for maximum precision and improved responsiveness
Lightweight aluminum for optimum balance of strength and size

Specifications:

Weight

2 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Steps

Powered By (Batteries)

Lithium

Base Diameter

75 mm

Counterbalance Weight

2.2, 4.4, 6.5 kg

Bubble Spirit Level (No.)

1

Center Of Gravity

55 mm

Certifications

WEEE; RoHS

Colour

Black

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Material

Aluminium

Maximum Working Temperature

60 °C

Minimum Working Temperature

-30 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGR-1

Quick Release

Yes

Tilt Drag

continuously adjustable from 0 to max level

Working Height

14.9 cm

Accessory Compatibility

MVAPANBARM; MVAPANBARL



(MVH504XAH)

SKU MVH504XAH
Barcode # 8024221699913
Brand Manfrotto
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.400m
Shipping Length 0.300m
Shipping Cubic 0.036000000m3
