Lilliput Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor

$2,995.00
RRP $3,225.00
SAVE $230.00 (7%)


or 4 payments of $748.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • 23.8" 3840 x 2160 Resolution Monitor
  • Supports up to 8K via Quad-Link 12G-SDI
  • Supports Accurate Color Calibration
  • HDR Support, Load Custom 3D LUTs
  • 178° H/V Viewing Angle
  • 300 cd/m² Brightness
  • 1000:1 Contrast Ratio
  • On-Screen Markers, Focus Peaking
  • V Mount Battery Plate
  • XLR 4-Pin 12-24 VDC Power Input

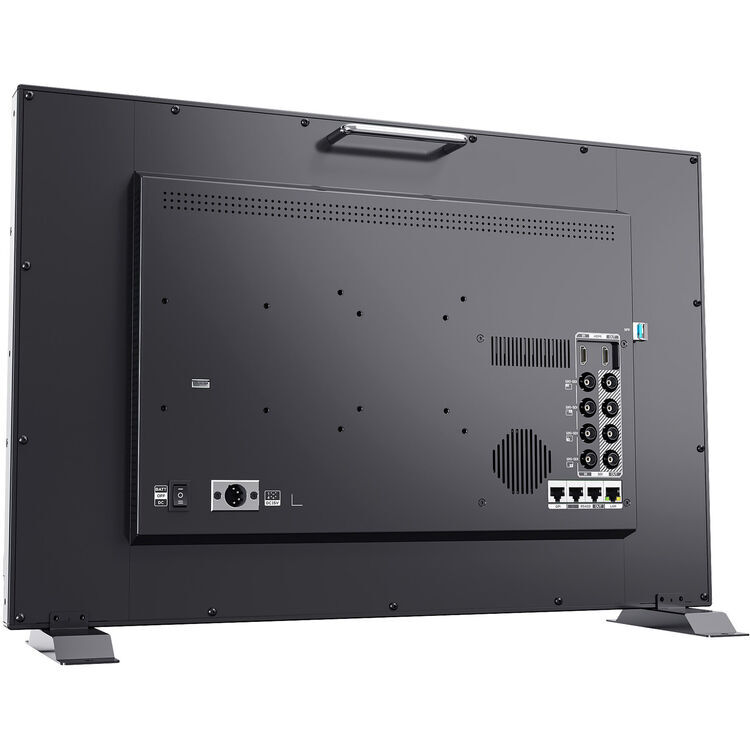

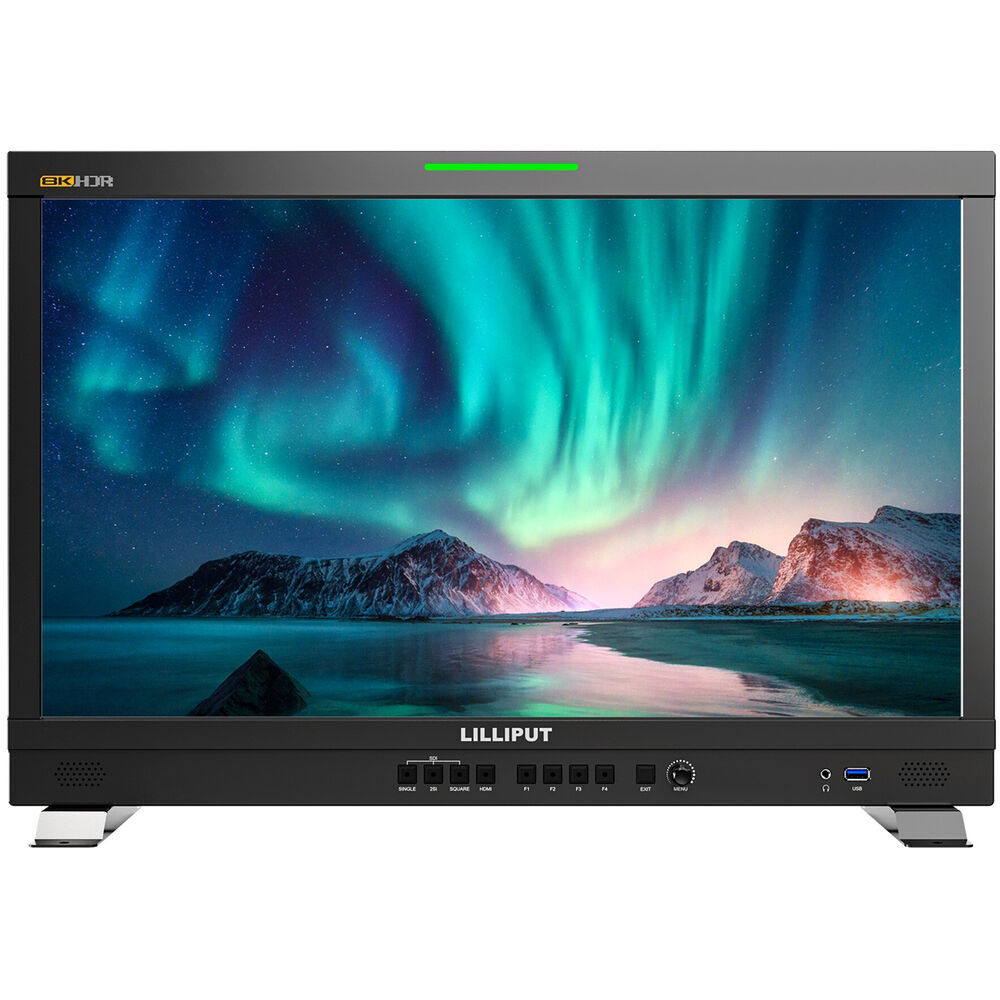

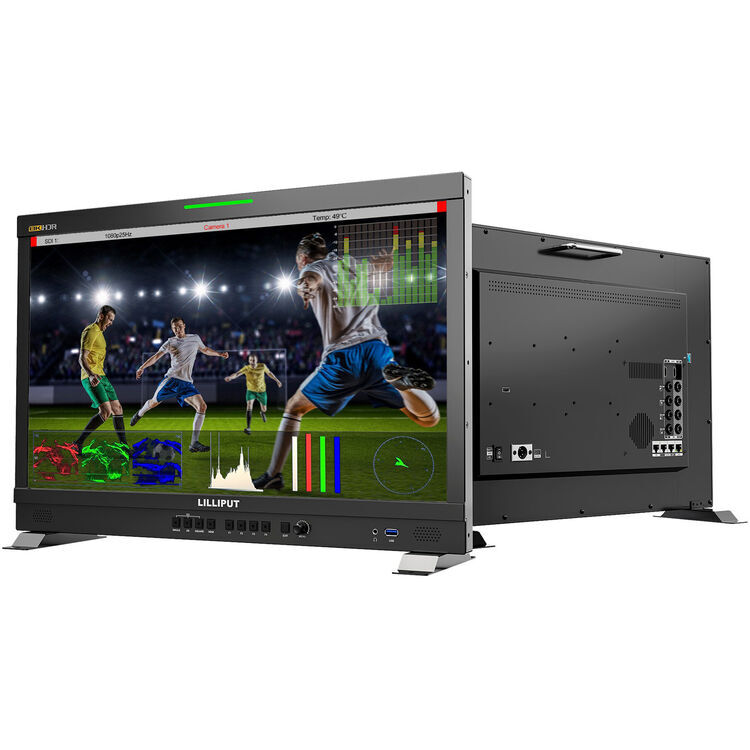

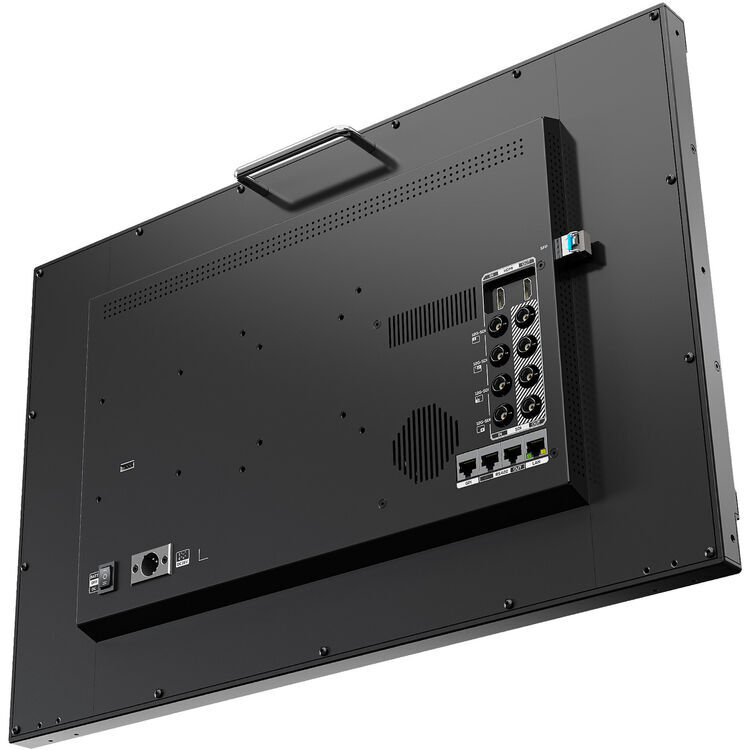

The Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor with Carrying Case from Lilliput is a 23.3" broadcast studio and field monitor with a V-mount battery plate and a native resolution of 3840 x 2160. It can support up to UHD 8K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1000:1 contrast ratio, a viewing angle of 178°, and 300 cd/m² brightness. The Q23-8K features an HDMI 2.0 input and an HDMI 2.0 output, four 12G-SDI inputs and four12G-SDI outputs, and an SFP+ input that can be used with an optional fiber module.

The monitor supports HDR color spaces and the importing of custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a V-mount battery using the included battery plate. A carrying case is also included with this model.

Features

Monitoring Tools

  • Peaking
  • Check field
  • Image freeze
  • Pixel-to-pixel
  • False color
  • Exposure
  • Histogram
  • Timecode
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Supported Log Formats

SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.

Supported HDR

ST2084 300/1000/10000/HLG.

Audio

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration

The monitor supports color calibration using an optional PRO/LTE version of ColourSpace CMS to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.

Q23-8K 23.8 inch 8K 12G-SDI professional broadcast production studio monitor





(Q23-8K)

SKU Q23-8K
Brand Lilliput
Shipping Weight 2.0000kg
Shipping Width 0.400m
Shipping Height 0.150m
Shipping Length 0.350m
Shipping Cubic 0.021000000m3
