Hollyland Solidcom M1 Full-Duplex Wireless Intercom Solution - 4 Beltpacks

$6,995.00
Sold Out





Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

If you need a communication solution for a small production team, then the Solidcom M1 Full-Duplex Wireless Intercom Solution from Hollyland is an ideal solution. This wireless intercom setup supports up to 8 team members, providing each of them with a wireless beltpack and professional wired single-ear LEMO headset. Ideal for small- to medium-sized events (approximately 100 to 1000 guests), such as a concert, church function, or exhibition, the Solidcom M1 system works to deliver clear and conversational communication without interference and offers easy app or webpage-based setup.

1.9 GHz Full-Duplex Transmission

To avoid interference with other devices, the M1 intercom system communicates over the 1.9 GHz spectrum and offers full-duplex conversations. With full duplex, you can talk to other team members as you would over the phone, with each party being able to talk and listen simultaneously.

Long-Range Communication

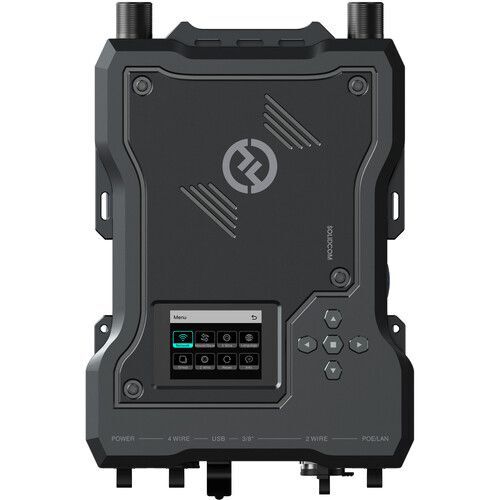

The built-in panel antenna on the M1 base station can provide one-way transmission to beltpacks up 1312' away fronting the panel, and an extra 164' at the back (line-of-sight). Auxiliary external FRP antennas can deliver 360° reception at up to a 984' range.

Sidetone Function

When you're alone at an event and need to ensure that your headset and beltpack are transmitting correctly, you can use the sidetone function to hear yourself through the headset. This helps to ensure that your mic is picking up your voice, that your voice volume is properly set, and more.

Cascade Connection

If you need to expand your coverage and team support, you can utilize the cascade connection feature to join this system to a second Solidcom M1 intercom system, linking both base stations together.

Additional Features

  • 8-channel communication
  • POE base station power supply

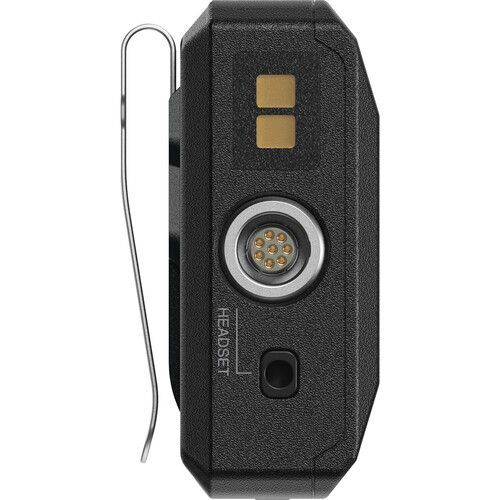

  • 3.5mm & LEMO headset connection on beltpacks
  • Charging station for all 8 beltpacks
  • 2-wire and 4-wire intercom system interfaces
  • Removable lithium-ion batteries
  • Grouping talk mode
  • App and website-based system configuration

Specifications:

System


Number of Included Headsets 4 x Single-Sided Headset
Number of Included Transceivers 4 x Beltpack
1 x Base Station

  Headphone

Earpiece Design Over-Ear (Circumaural)
Earpiece Connection / Wearing Style Headband
Number of Earpieces Single Earpiece (Left Side)
Controls/Microphone Location Controls: Bodypack
Microphone: Adjustable Boom
Frequency Response 200 Hz to 7 kHz

  Microphone

Mic Boom Location Left Side

  Wireless Connectivity

Wireless Transmission Digital 1.9 GHz
Number of RF Channels 8
RF Bandwidth Up to 1.72 MHz
Max Systems per Setup 2
Wireless Modulation GFSK
Duplex Mode Full-Duplex (FDX)
Approximate RF Sensitivity -93 dBm
Wireless Range 1312' / 399.9 m (RF)
Audio Connector to Source 1 x 1/8" / 3.5 mm
1 x LEMO (Unspecified Type)

  Battery

Battery Chemistry Beltpack:
Lithium-Ion Polymer (LiPo)
Capacity (mAh) 1500 mAh

  Base Station / Transmitter

Number of Channels 8
Users per System 8
Antenna Base Station:
2 x External, Detachable
Beltpack:
2 x External, Fixed
Number of Charging Ports 1
Power Consumption 3 W (Transmitter)

  Environmental

Operating Temperature 32 to 113°F / 0 to 45°C
Storage Temperature -4 to 140°F / -20 to 60°C

  Physical

Dimensions Base Station:
255 x 180 x 48.5mm
Beltpack:
105 x 65 x 22.4mm (Each)
Weight Base Station:
1560g
Beltpack:
200 g (Each)

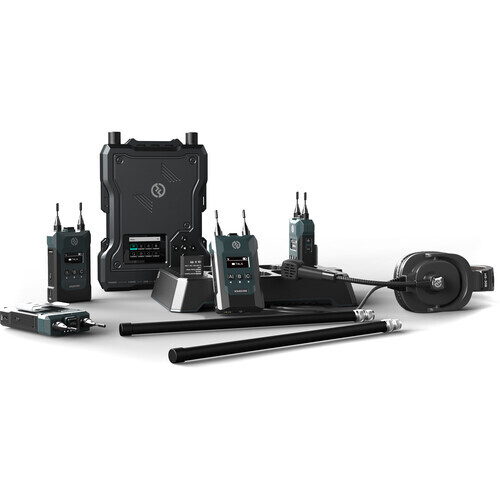

Content List:

Hollyland Solidcom M1 Full-Duplex Wireless Intercom Solution (8 Beltpacks)

1 x Base Station

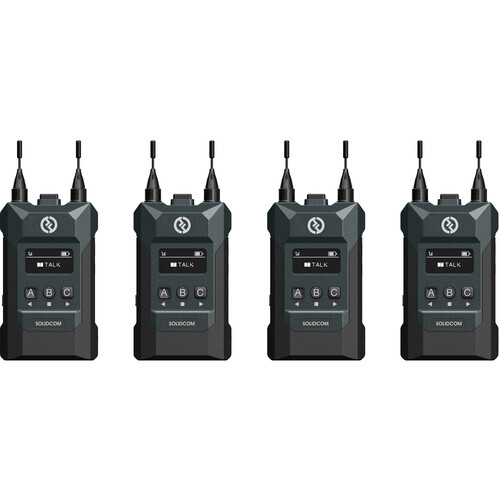

4 x Beltpacks

4 x LEMO Single-Ear Headset

1 x Charging Station

2 x High-Gain Omnidirectional Antenna

1 x POE Adapter

1 x RJ45 to XLR Transferring Cable

1 x USB Type-A to USB Type-C Transferring Cable

1 x 4-Pin XLR Adapter

8 x Beltpack Batteries

1 x 3/8" Installing Accessory



(Solidcom-M14BP)

SKU Solidcom-M14BP
Barcode # 191460002045
Brand Hollyland
Shipping Weight 6.0000kg
Shipping Width 0.700m
Shipping Height 0.300m
Shipping Length 0.400m
Shipping Cubic 0.084000000m3
