Hollyland Astra P1 UHD 4K NDI PTZ Camera with 30x Optical Zoom

$3,519.00


or 4 payments of $879.75 with Info



The Hollyland Astra P1 is a professional UHD 4K PTZ camera featuring 30x optical zoom, AI auto tracking, face-detection AE, NDI®|HX3 support, HDMI and SDI outputs, and flexible IP streaming capabilities, making it ideal for live production, worship etc...

-->



Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

The Hollyland Astra P1 is a professional-grade PTZ camera designed for live production, houses of worship, education, corporate events, sports coverage, and conference environments. Featuring a UHD 4K imaging system, powerful 30x optical zoom, AI-powered auto tracking, and NDI®|HX3 support, the Astra P1 delivers high-quality video and intelligent operation for demanding production workflows.

Equipped with face-detection auto exposure and advanced AI tracking technology, the camera automatically keeps presenters and performers perfectly framed, reducing the need for manual camera operation. With flexible connectivity including HDMI, 3G-SDI, USB, and IP streaming, the Astra P1 easily integrates into modern production and streaming systems.

Key Features

  • UHD 4K60 video output
  • Powerful 30x optical zoom lens
  • AI Auto Tracking technology
  • Face Detection Auto Exposure (AE)
  • NDI®|HX3 support for IP production workflows
  • HDMI, 3G-SDI, USB and Ethernet outputs
  • Supports H.264, H.265 and MJPEG encoding
  • PTZ control via RS232, RS485 and IP
  • Up to 255 preset camera positions
  • Optional PTZ controller support
  • PoE+ capable for simplified installation
  • Backed by a 5-Year Warranty

Imaging System

  • Sensor: 1/1.8" High-Quality CMOS
  • Effective Resolution: 8.42MP (16:9)
  • Optical Zoom: 30x (7.1mm – 210mm)
  • Digital Zoom: 16x
  • Aperture Range: f/1.6 – f/5.19
  • Minimum Illumination: 0.5 Lux
  • Signal-to-Noise Ratio: ≥55dB

Video Output Formats

HDMI

  • 2160p up to 60fps
  • 1080p up to 60fps
  • 1080i up to 60fps
  • 720p up to 60fps

3G-SDI

  • 1080p up to 60fps
  • 1080i up to 60fps
  • 720p up to 60fps

PTZ Performance

  • Pan Range: ±170°
  • Tilt Range: -30° to +90°
  • Pan Speed: 1.7°/s to 100°/s
  • Tilt Speed: 1.7°/s to 69.9°/s
  • Presets: 255 positions
  • Preset Accuracy: 0.1°

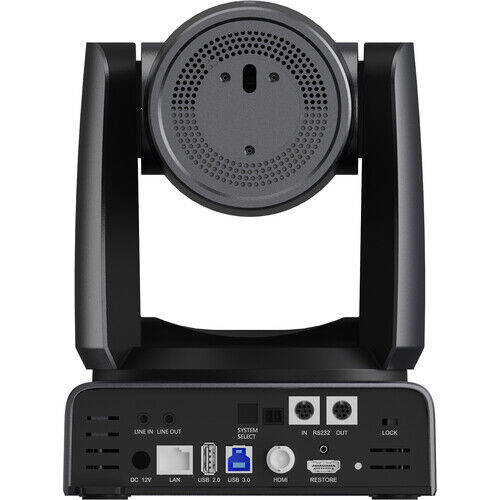

Connectivity

Video Interfaces

  • 1 × HDMI 2.0
  • 1 × 3G-SDI
  • 1 × USB 3.0 Type-B
  • 1 × USB 2.0 Type-A

Audio Interfaces

  • 1 × 3.5mm Line In
  • 1 × 3.5mm Line Out

Control Interfaces

  • RS485 (2-pin Phoenix Terminal)
  • RS232 (8-pin Mini-DIN)

Network

  • RJ45 Gigabit Ethernet (10/100/1000 Mbps)

Streaming & Network Features

  • Video Compression: H.264 / H.265 / MJPEG
  • Main Stream Resolution:
    • Up to 3840 × 2160
  • Sub Stream Resolution:
    • Up to 720 × 480
  • Supported Protocols:
    • NDI®|HX3
    • RTSP
    • RTMP
    • SRT
    • HTTP
    • TCP/IP
    • Multicast
    • DVR and more

Physical Specifications

  • Power Input: DC 12V / PoE+
  • Power Consumption: 18W (Max)
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 60°C
  • Dimensions: 169 × 188 × 226mm
  • Weight: Approx. 2.3kg

Ideal Applications

  • Houses of Worship
  • Live Events
  • Corporate Presentations
  • Education & Lecture Capture
  • Conference Rooms
  • Sports Production
  • Broadcast Studios
  • Hybrid & Online Streaming

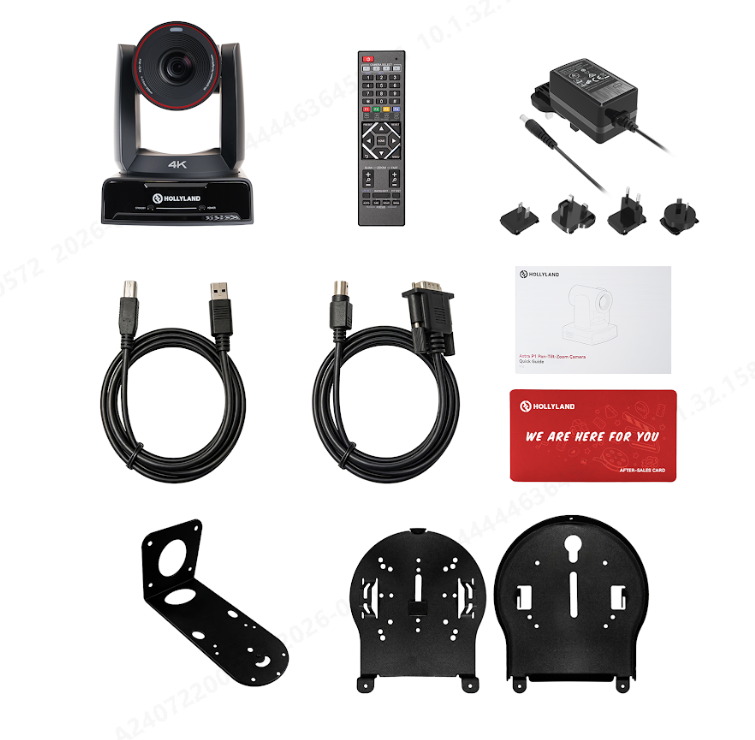

What's in the box:



1 x Hollyland Astra-P1 PTZ Camera (NDI Activated)
1 x Remote Controller
1 x Power Adapter
1 x USB-B to USB-A Cable
1 x RS232 Cable
1 x Wall Mount Bracket
1 x Ceiling Mount Bracket


(HL-AstraP1)

SKU HL-AstraP1
Barcode # 6978683660351
Brand Hollyland
Shipping Weight 5.0000kg
Shipping Width 0.500m
Shipping Height 0.250m
Shipping Length 0.300m
Shipping Cubic 0.037500000m3
