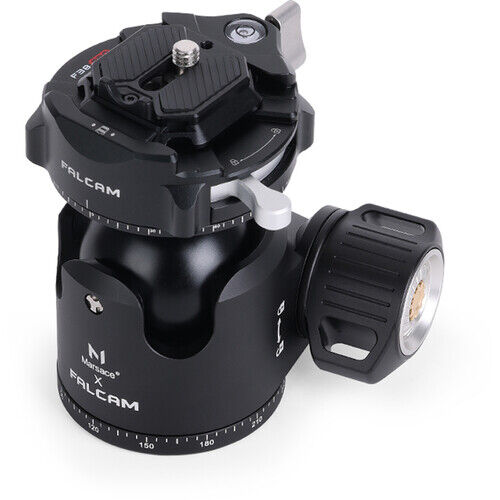

FALCAM F38 Pro Quick Release Low Gravity Dual Panorama Ball Head XB-3R
Key Features

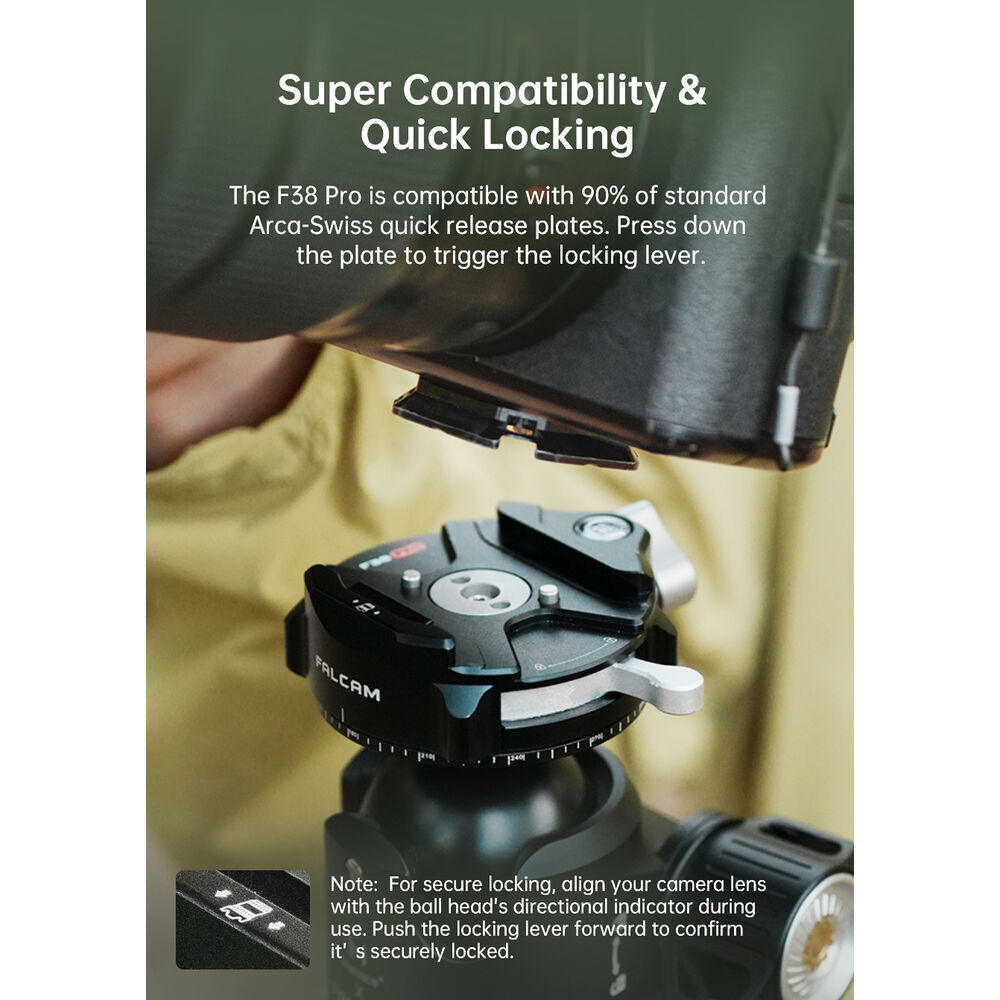

Super Compatibility & Quick Locking
-
Compatible with over 90% of Arca-Swiss standard quick release plates.
-
Press down to lock.
-
Note: Align your camera lens with the ball head's directional indicator for secure locking. Push the locking lever forward to confirm it is securely locked.
Anti-slip Protection Mechanism
-
Features a self-adaptive limiting mechanism and slot design.
-
Compatible with most Arca-Swiss plate limit structures to prevent slippage.
-
Components:
-
Limit Slot
-
Self-adaptive Limit Column
-
Low Center of Gravity for High Stability
-
Side-mounted locking mechanism lowers the center of gravity by over 15% compared to traditional ball heads.
-
Provides enhanced stability and balance during use.
Dual Notch & Dual Panorama
-
Dual-notch design enables fast switching between horizontal and vertical shooting.
-
Supports 360° horizontal and vertical panoramic shooting with smooth damping, perfect for panorama stitching.
-
Shooting Modes & Positions:
-
360° Ball Rotation
-
90° Vertical Shooting Mode
-
Upper Panorama Position
-
Lower Panorama Position
-
Ultra-Strong Locking Force
-
Equipped with a worm gear-driven heavy-duty locking mechanism for amplified torque and secure locking.
-
Features a spindle-shaped locking knob for smooth and comfortable operation.
Standard Configuration
Equipped with F38 Anti-Deflection Quick Release Plate V2
- Anti-deflection Baffle
- Non-Slip Pad
- Stainless Steel Lock Washer
- Nylon Lock Washer
- 1/4" Screw
F38 Pro Ball Head Components:
-
F38 Pro Quick Release Mount
-
Press-Fit Self-Locking Latch
-
Vertical Camera Slot
-
Upper Panorama Knob
-
Lower Panorama Knob
-
Ball Head Locking Knob
-
3/8" Threaded Hole
-
Spirit Level
Broad Compatibility
-
3/8" threaded hole allows connection to tripods, monopods, sliders, and various accessories.
Product Parameters
-
Model: XB-3R
-
Height: ≈120mm
-
Weight: ≈642g
-
Ball Diameter: 52mm
-
Base Diameter: 65mm
-
Recommended Max Static Load: Approx. 7kg
-
Compatibility: Over 90% of Arca-Swiss standard quick release plates
Packing List
1 x F38 Pro Quick Release Low Gravity Dual (Marsace XB-3R) x1
1 x F38 Anti-Deflection Quick Release Plate
1 x Anti-deflection Baffle
1 x Torx Flat Head Screw
1 x Stainless Steel Lock Washer
1 x Nylon Lock Washer
1 x Hex Wrench
1 x Dual-purpose Wrench
1 x Anti-deflection Positioning Screw
(MarsaceXB-3R)
SKU | MarsaceXB-3R |
Barcode # | 6974831491914 |
Brand | Falcam |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.130m |
Shipping Cubic | 0.003900000m3 |
