DZOFilm X-Tract 18-28mm T8 FF Probe Zoom (0, 90 & 360°, ARRI PL) 3-Lens Kit

$15,995.00
RRP $16,500.00
SAVE $505.00 (3%)






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • Full Frame | T8 Maximum Aperture
  • Innovative 0, 90, and 360° Probe Zoom
  • 0.8 MOD FIZ Gears, 300° Focus Rotation
  • 2.1:1 Image Magnification
  • Versatile 73 to 100° Angle of View
  • Minimum Focus: 0.24"
  • <1.2" Front Outside Diameter
  • Compact 16.3" Length
  • ED and HRI Elements Reduce Aberrations
  • Waterproof, Dustproof, and Anti-Fog

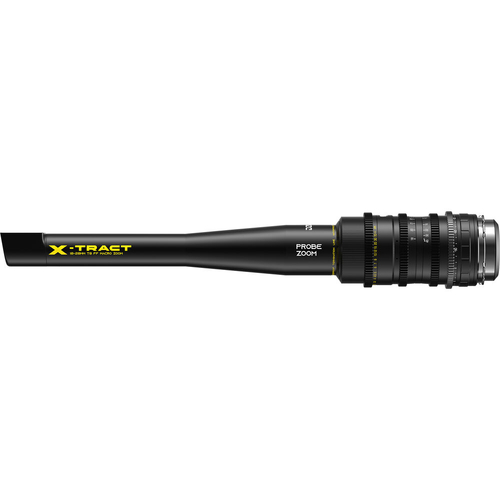

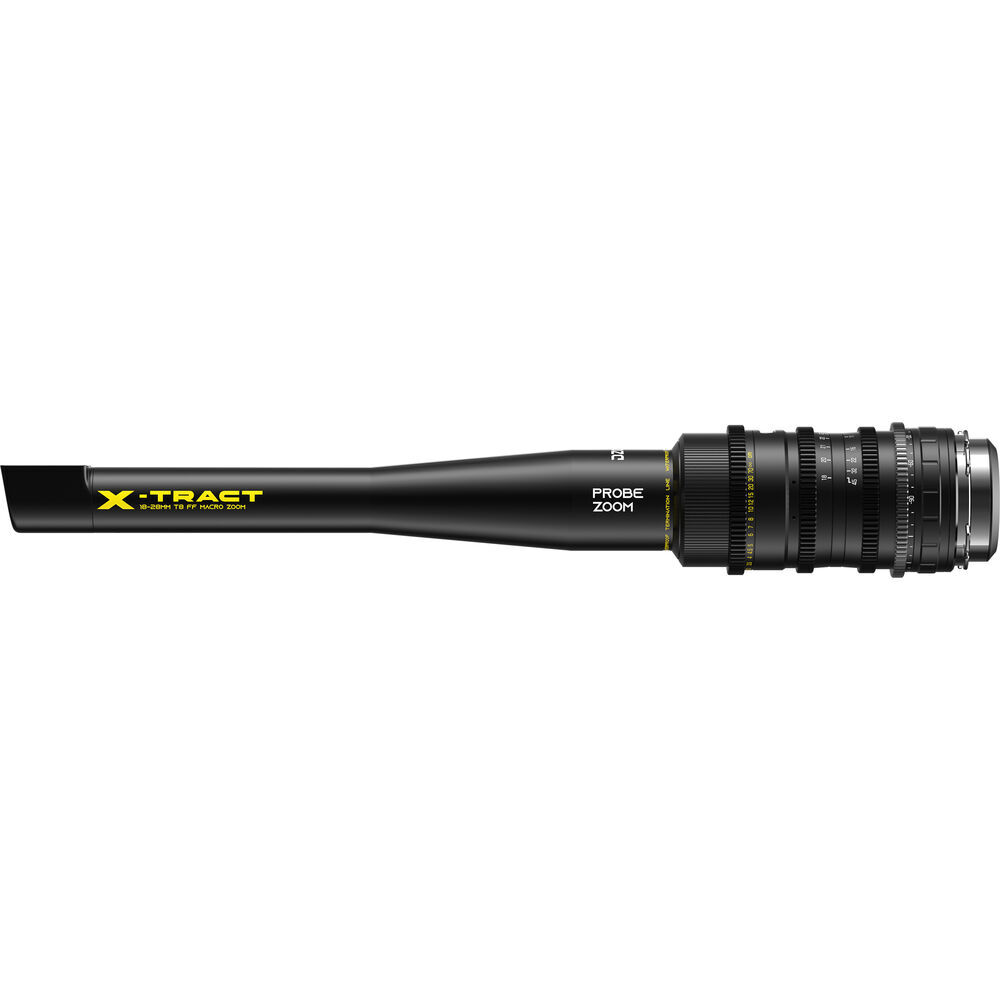

DZOFilm X-Tract 18–28mm T8 FF Probe Zoom Lens Kit (ARRI PL)

Innovative Interchangeable Probe System with 0°, 90°, and 360° Tubes

Engineered for creative macro cinematography in the most challenging environments, the DZOFilm X-Tract 18–28mm T8 FF Probe Zoom Lens Kit offers unmatched versatility. This all-in-one full-frame probe lens system includes interchangeable 0°, 90°, and 360° optical tubes, enabling a wide range of perspectives and angles—all in one streamlined package.

With a compact form factor of just 16.3 inches in length and a front diameter under 1.2 inches, this probe is ideal for shooting in tight, confined spaces where standard lenses simply can't reach. Whether you're capturing product details, nature footage, or stylized tabletop scenes, the X-Tract system brings a new level of cinematic control and creativity.

Versatile 18–28mm Zoom Range

  • Covers essential focal lengths from ultra-wide to mid-range.

  • Offers a wide 100° to 73° field of view—perfect for immersive close-ups and dynamic storytelling.

Interchangeable View Tubes: 0°, 90°, and 360°

  • The kit includes three interchangeable front tubes for maximum flexibility:

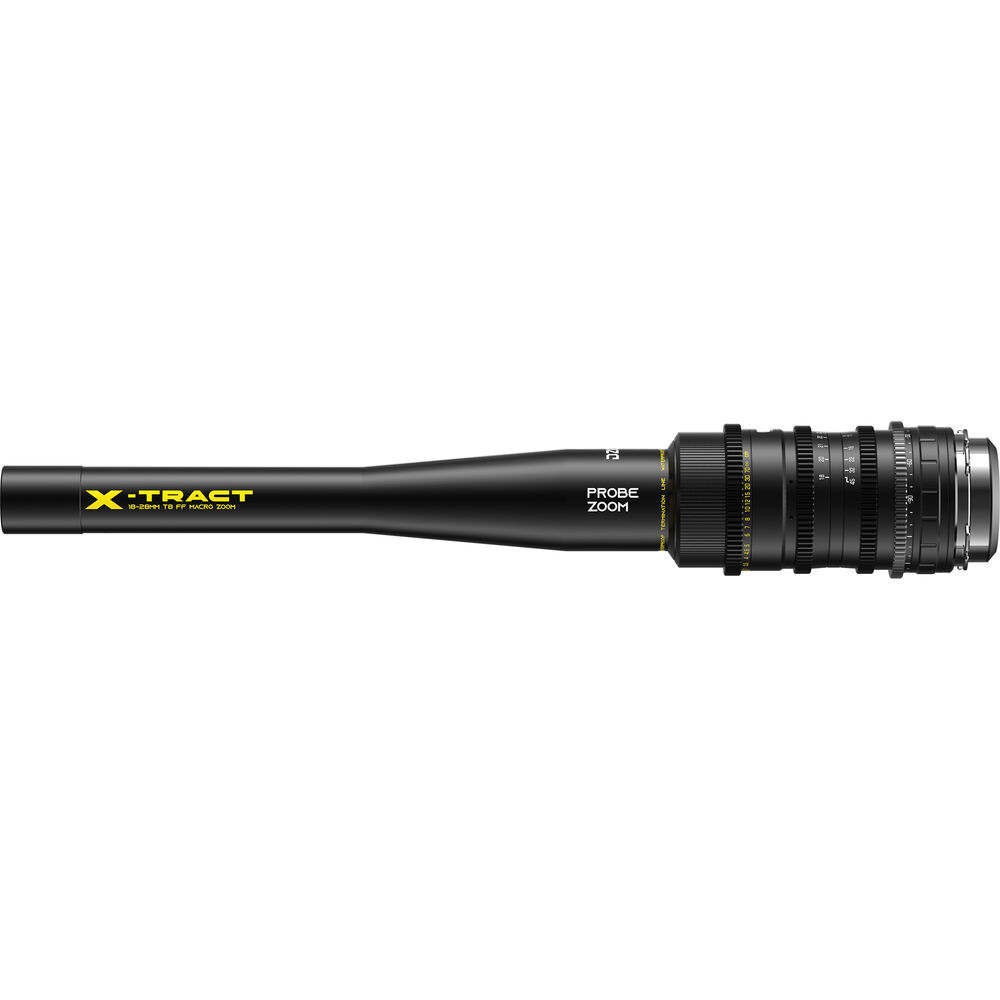

    • 0° Direct View for straightforward framing.

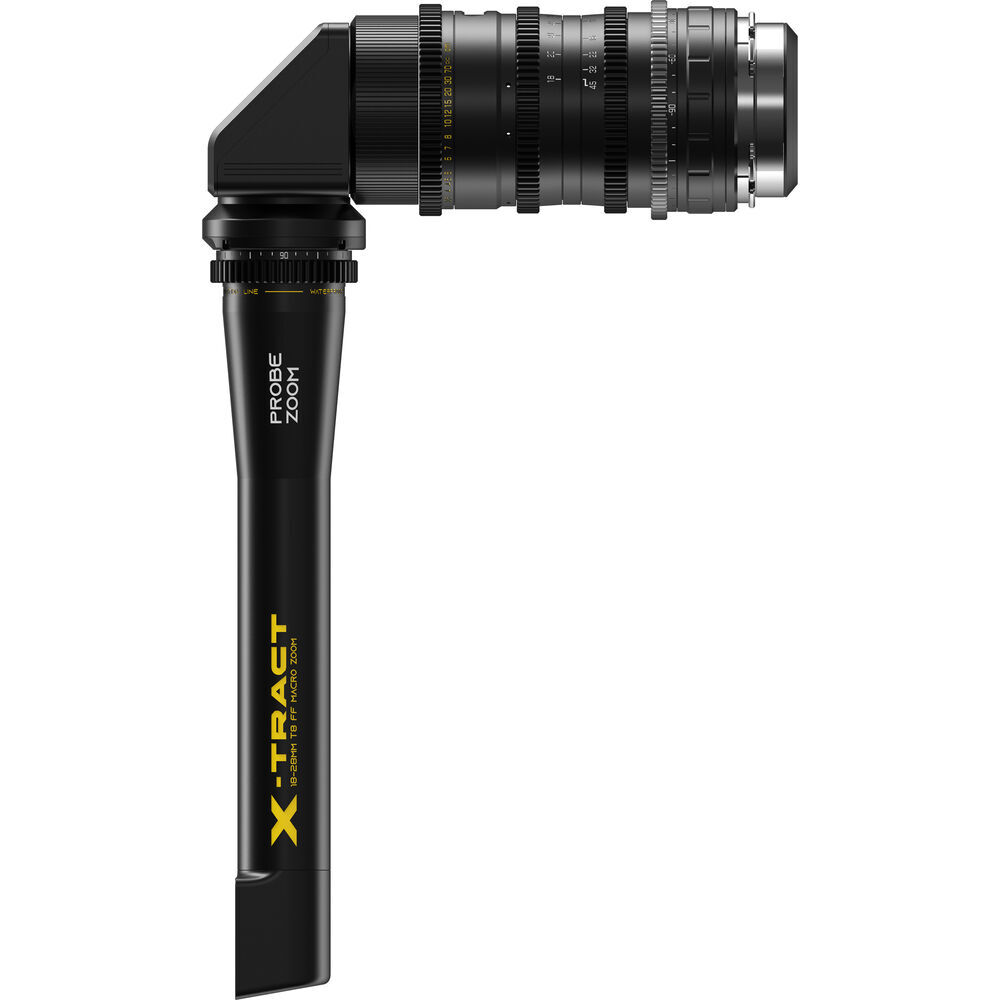

    • 90° Right-Angle View for low-profile or top-down shots.

    • 360° Periscope View with a rotating ring for dynamic angle adjustments on the fly.

  • Tool-free design allows quick switching between perspectives to match your creative vision.

Extreme Macro Capability for Tight Spaces

  • Achieve super close-up detail with a 2.1:1 maximum magnification ratio.

  • The 0.24-inch minimum focusing distance enables crisp coverage of even the tiniest subjects.

  • A large depth of field combined with wide-angle focal length allows you to work comfortably at a distance while still capturing intricate details in narrow environments.

Advanced Optical Performance

  • Equipped with ED (Extra-Low Dispersion) and High-Refractive Index (HRI) glass elements to suppress chromatic and spherical aberrations.

  • Features seven HRI elements for natural color rendering and sharp, edge-to-edge clarity.

  • Advanced multilayer anti-reflective coatings reduce flaring and ghosting in challenging lighting conditions.

  • Maintains ±2% distortion control across the entire zoom range for clean, accurate images.

Constant T8 Aperture

  • A consistent T8 aperture is maintained throughout the zoom range, ensuring stable exposure and creative depth of field control.

  • Optimized for macro and studio lighting setups with crisp results even when wide open.

Cine-Ready, Rugged Construction

  • 0.8 MOD cine-style gears on focus, iris, and zoom rings ensure full compatibility with follow focus systems and lens motors.

  • 300° focus rotation enables precise, fluid focus pulls.

  • Designed with a rear-heavy balance to minimize vibration and improve stability during handheld or rig-mounted operation.

  • Fully waterproof, dustproof, scratch-resistant, and fog-resistant for professional use in any environment.

Whether you're looking to shoot from directly overhead, around corners, or through impossibly narrow spaces, the DZOFilm X-Tract 18–28mm FF Probe Zoom Kit with 0°, 90°, and 360° modules gives you complete creative control—all in one professional system.

Specs

Focal Length

18 to 28mm

Maximum Aperture

T8

Lens Mount

ARRI PL

Lens Format Coverage

Full-Frame

Filter Thread

No

Image Stabilization

No

Electronic Communication

No

Maximum Aperture

T8

Minimum Aperture

T22

Lens Mount

ARRI PL

Interchangeable Mount

No

Lens Format Coverage

Full-Frame

Image Circle

43.2 mm

Angle of View

Full Frame
Horizontal: 100 to 73°

Focus Scales

Metric

Optical Design

25 Elements in 18 Groups
26 Elements in 19 Groups
27 Elements in 20 Groups

Filter Thread

No

Zoom Ratio

1.56x

Minimum Focus Distance

From Camera Sensor: 1.5' / 47 cm

Magnification

2.1:1 Macro Reproduction Ratio
0.47x Magnification

Aperture/Iris Blades

10

Image Stabilization

No

Lens Mounting

1x 1/4"-20 (via Included Support Foot)
3x 3/8"-16 (via Included Support Foot)

Gear Standard

Focus, Iris, Zoom: 0.8 MOD

Gear Rotation

Focus: 300°

Electronic Communication

No

Built-In Light

No

Probe Offset

No

Diameter

Front: 1.2" / 30 mm

Length

16.3" / 415 mm

Weight

2.38 lb / 1.08 kg

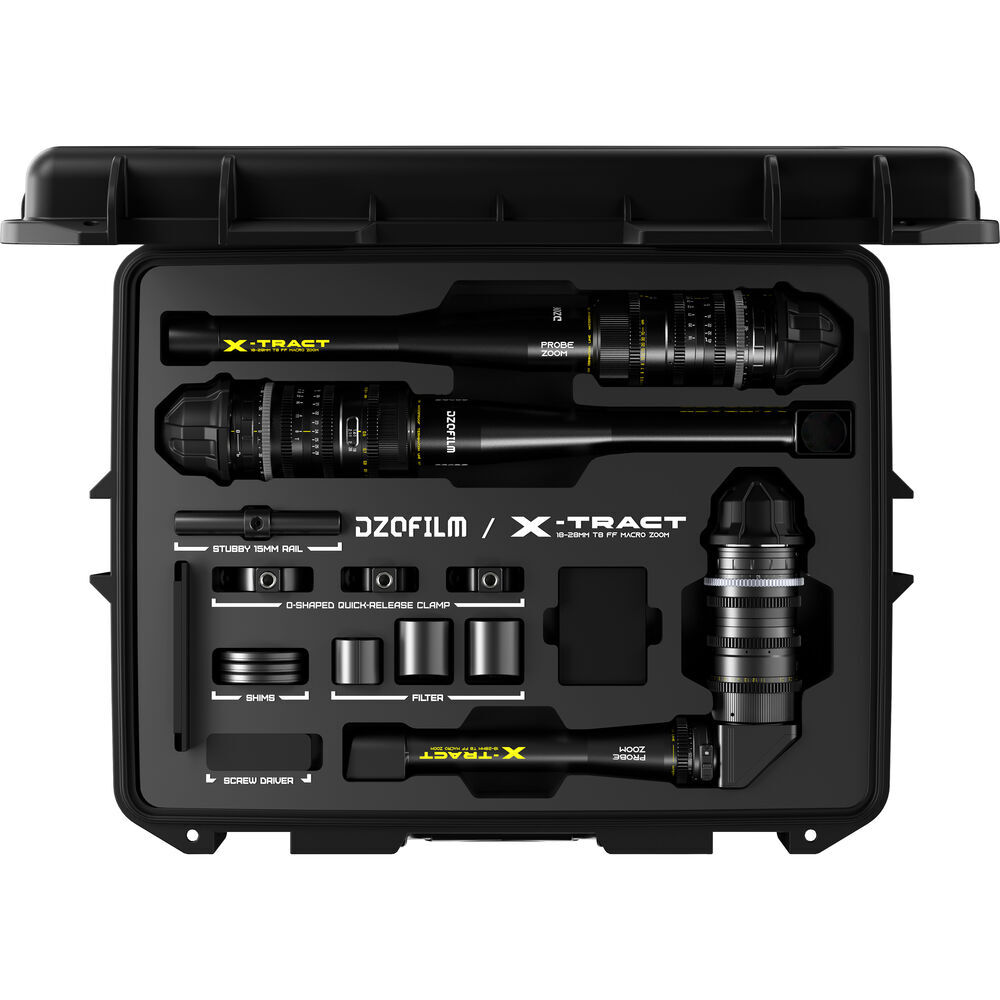

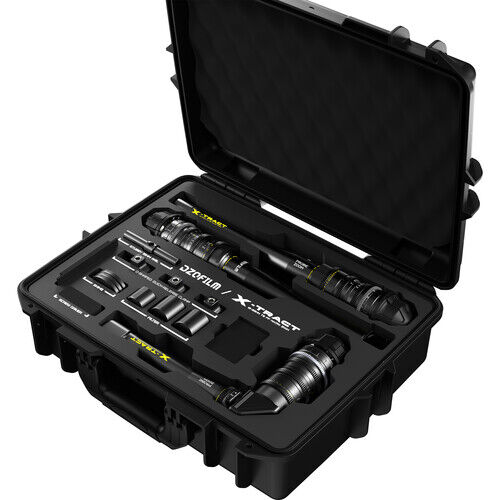

What's included:

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom (0, 90 & 360°, ARRI PL)

1 x 0° Tube

1 x 90° Tube

1 x 360° Tube

3 x Front Cap

3 x Rear Cap

3 x Y-Bracket Support

6 x Bolt Driver

3 x Shim Set

1 x UV Filter (#1)

1 x UV Filter (#2)

1 x Large Quick Release O-Ring

2 x Small Quick Release O-Ring

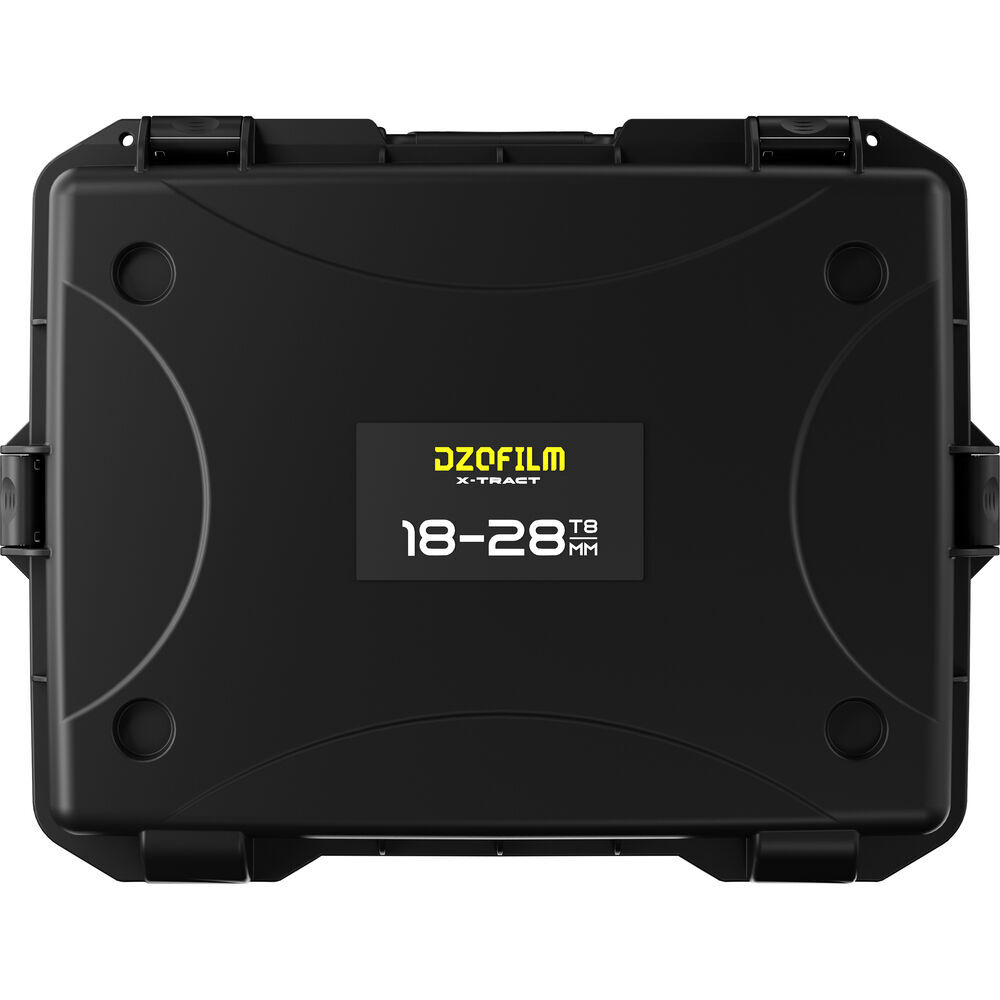

1  Hard Case with Foam Inlay

Limited 1-Year Manufacturer Warranty

(DZO-X1828ABC)

SKU DZO-X1828ABC
Brand DZOFILM
Shipping Weight 10.0000kg
Shipping Width 0.450m
Shipping Height 0.200m
Shipping Length 0.500m
Shipping Cubic 0.045000000m3
