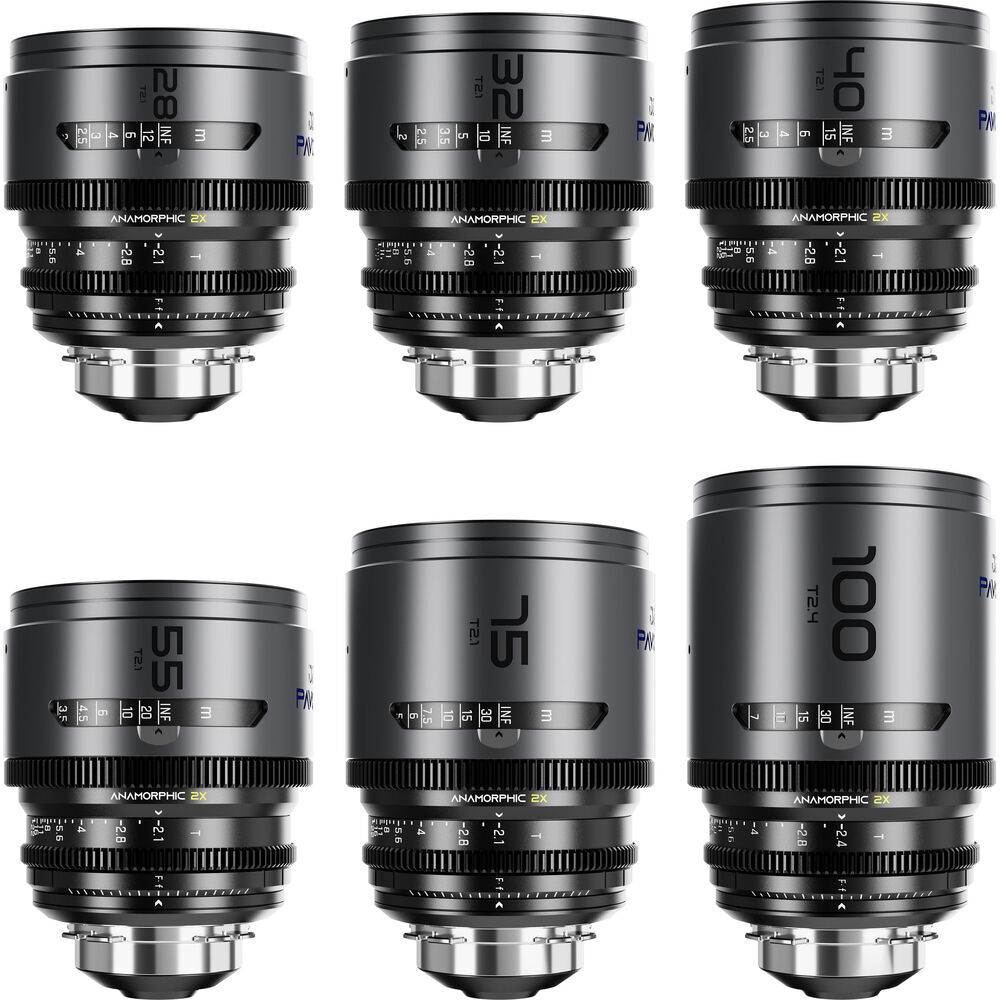

DZOFilm PAVO T2.1 2x Anamorphic 28/32/40/55/75/100mm 6-Lens Set

Blue Coating with PL and EF Mount

$66,595.00
RRP $66,795.00
SAVE $200.00 (0%)






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

 Features

  • Covers Super35 Format
  • Interchangeable PL/EF Mount
  • T2.1 Maximum Aperture
  • Focus Marks in Feet
  • EF Bayonet Included



2X Compression Factor for Authentic Anamorphic

The PAVO series comprises 28mm to 100mm focal lengths with a 2X compression ratio. This expansion of the cinematic scope allows for the inclusion of additional details, resulting in a more dramatic depth of field.

It achieves a genuine anamorphic look that immerses viewers in a visually spectacular world, while maintaining a harmonious and unified visual style across the entire series, making it the ideal choice for professional film production.

Unparalleled Compact Anamorphic

With its solid and lightweight design, the PAVO features a front diameter of only 95mm and weighs between 1.2 and 1.6 kg. This versatility allows for seamless integration with a range of filming accessories, such as gimbals, Steadicams, and drones.

Whether you're navigating handheld shots, shoulder-mounted rigs, vehicle-mounted setups, or aerial cinematography, PAVO offers the adaptability you need. Its precise construction and superior optical performance offer limitless creative possibilities for indie filmmakers and large-scale productions.

Revolutionary Close Focus

The PAVO series overcomes anamorphic limitations with a phenomenal minimum focus distance of 0.4m, perfect for capturing subtle facial expressions and using close-ups to create immersive and engaging visuals that resonate with viewers. This lens set is an ideal tool for filmmakers seeking to add depth and nuance to their storytelling.

Versatile Design,Flex Adaptation

PAVO lenses feature a built-in back-focus adjustment, enabling precise adjustments while the lens is mounted, streamlining operational processes. Additionally, these lenses can adapt to full-frame cinema cameras using the Marlin 1.6X Expander, broadening compatibility across various shooting scenarios and meeting the demands of professional film production.

PARAMETER

Focal Length 28 mm 32 mm 40 mm 55 mm 75 mm 100 mm
Colour Space Grey + Black
Flare Option Neutral / Blue
Mount PL / EF
Aperture T2.1-T22 T2.4-T22
Image Circle φ31.5mm(S35)
Construction Of Optics 15 Elements in 13 Groups 15 Elements in 14 Groups 14 Elements in 13 Groups 15 Elements in 14 Groups 14 Elements in 13 Groups
Flange Distance 52mm(PL)/44mm(EF)
Close Focus
(From Sensor Plane)
0.4m/1ft4in 0.45m/1ft6in 0.6m/2ft 0.84m/2ft9in 0.95m/3ft1in
Squeeze Factor 2X
Iris Control Manual(79°) Manual(59°) Manual(58°) Manual(63°) Manual(67°) Manual(76°)
Focus Control Manual(270°)
Front Dia. φ95mm/3.74"
Length
(From Lens Front To Flange Plane)
106.3mm/4.19" 105.7mm/4.16" 107.6mm/4.24" 108.4mm/4.26" 126.9mm/4.99" 143.1mm/5.63"
Iris Blade 14 16
Filter Size M86
Gear Pitch 0.8 Mod
Material Aluminum Alloy
Weight(Product) ≈1203g ≈1278g ≈1300g ≈1262g ≈1466 ≈1654g

What's in the box:

1 x DZOFilm Pavo 2x Anamorphic Prime 28mm T2.1-Blue Coating- PL mount

1 x DZOFilm Pavo 2x Anamorphic Prime 32mm T2.1-Blue Coating- PL mount

1 x DZOFilm Pavo 2x Anamorphic Prime 40mm T2.1-Blue Coating- PL mount

1 x DZOFilm Pavo 2x Anamorphic Prime 55mm T2.1-Blue Coating- PL mount

1 x DZOFilm Pavo 2x Anamorphic Prime 75mm T2.1-Blue Coating- PL mount

1 x DZOFilm Pavo 2x Anamorphic Prime 100mm T2.4-Blue Coating- PL mount

6 x Front Cap

6 x Rear Cap (PL)

6 x EF Bayonet

6 x Rear Cap (EF)

12 x Packet of Screws

6 x Set of Shims

3 x Screwdriver

Set of Stickers

(DZO-PA6PLMB)

SKU DZO-PA6PLMB
Brand DZOFILM
Shipping Weight 12.0000kg
Shipping Width 0.650m
Shipping Height 0.250m
Shipping Length 0.520m
Shipping Cubic 0.084500000m3
