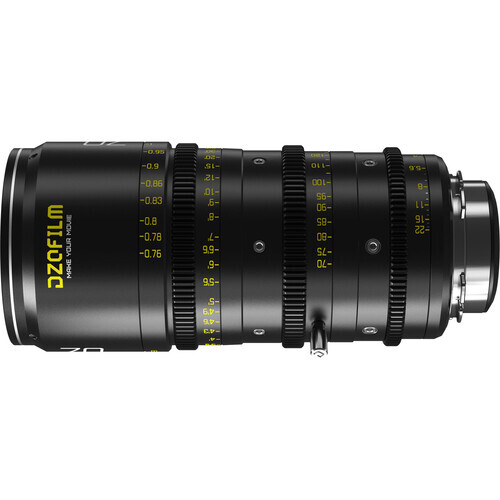

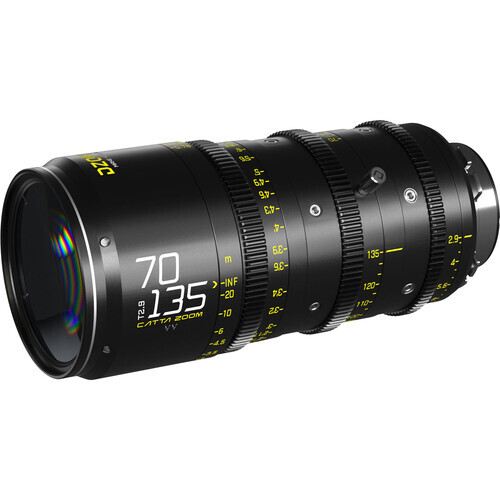

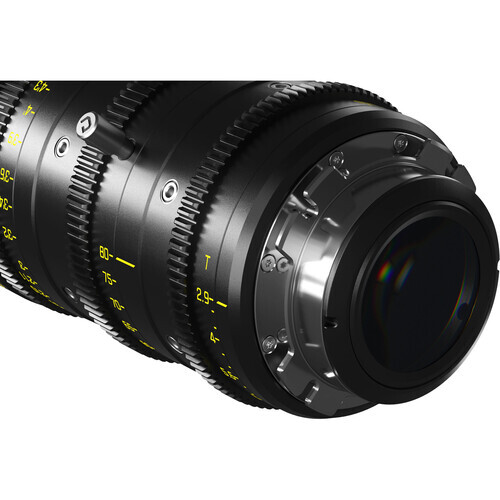

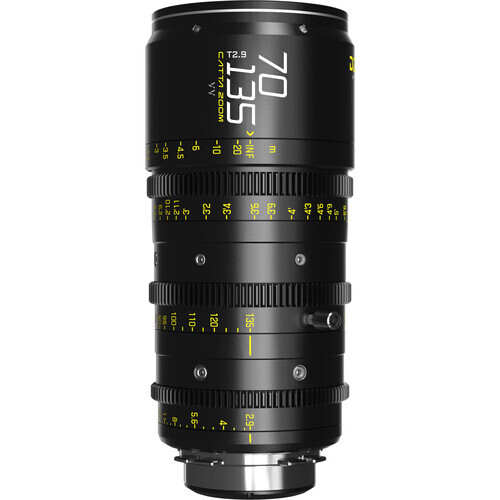

DZOFilm Catta Ace 70-135mm T2.9 Cine Zoom Lens (Black)
Add a cinema zoom lens to your documentary, broadcast, or online production kit with this black Catta Ace 70-135mm T2.9 PL-Mount Cine Zoom Lens from DZOFilm. The cine zoom lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.9" close focus range.
True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and an 80° iris rotation range. The lens features a PL mount, and an EF mount is included to change out using a screw and shim set. Multiple accessories are included with the lens, including front and rear lens caps, a support base, a support rod, and a filter bracket.
Key Features
Maintains focus throughout 70 to 135mm zoom range
Minimal breathing
16-blade iris with a soft bokeh
T2.9 to T22 aperture; 1.9x magnification ratio
240° focus rotation; 100° zoom rotation; 80° iris rotation
29.9" minimum focus distance
80mm front diameter
0.8 MOD gears
| Focal Length | 70 to 135mm |
| Lens Mount | ARRI PL |
| Format | Full Frame |
| Image Circle | 46.5 mm |
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Minimum Focus Distance | From Unspecified Point in Lens: 29.9" / 76 cm |
| Optical Design | 17 Elements in 11 Groups |
| Diaphragm Blades | 16 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Front Diameter | 80 mm |
| Filter Thread | 77 mm |
| Focus Scales | Imperial |
| Focus Rotation | 240° |
| Iris Rotation | 80° |
| Zoom Rotation | 100° |
| Zoom Ratio | 1.9x |
| Electronic Communication | No |
| Image Stabilization | No |
| Weight | 1597g |
Content List:
1 x DZOFilm Catta Zoom PL mount lens
1 x Front Lens Cap
1 x Rear Lens Cap

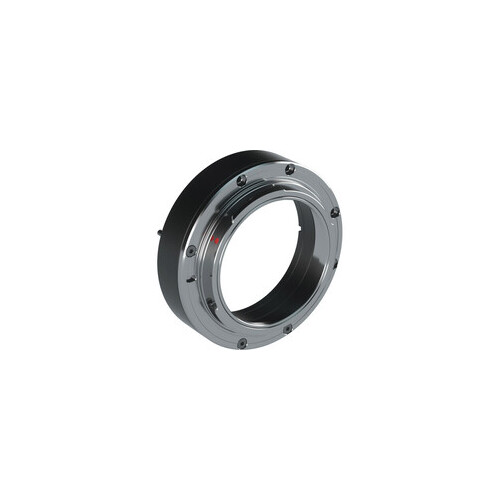

1 x EF bayonet
1 x EF Rear cap
1 x Shim Set
1 x Support Base
1 x Support Rod
(432185)
| SKU | 432185 |
| Barcode # | 842463108226 |
| Brand | DZOFILM |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.020000000m3 |
Be The First To Review This Product!
Help other M & C Co Pty Ltd users shop smarter by writing reviews for products you have purchased.
More From This Category
DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (90°
$5,995.00
Make 4 interest-free payments of $1,498.75 fortnightly and receive your order now.

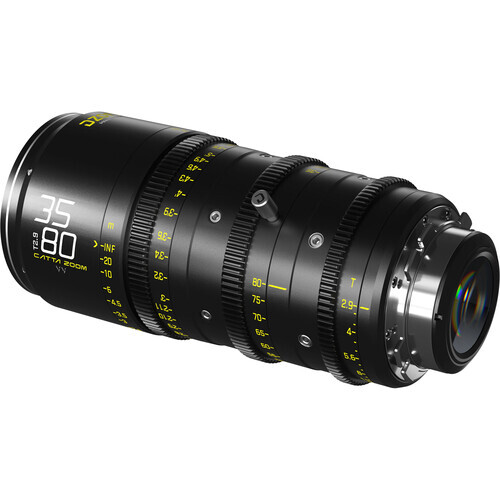

DZOFilm Catta Ace FF 35-80 & 70-135mm T2.9 Zoom Le
