Dulens APO Cambrian Prime 6-Lens Complete Set (ARRI PL, Imperial, Black)

$15,995.00






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

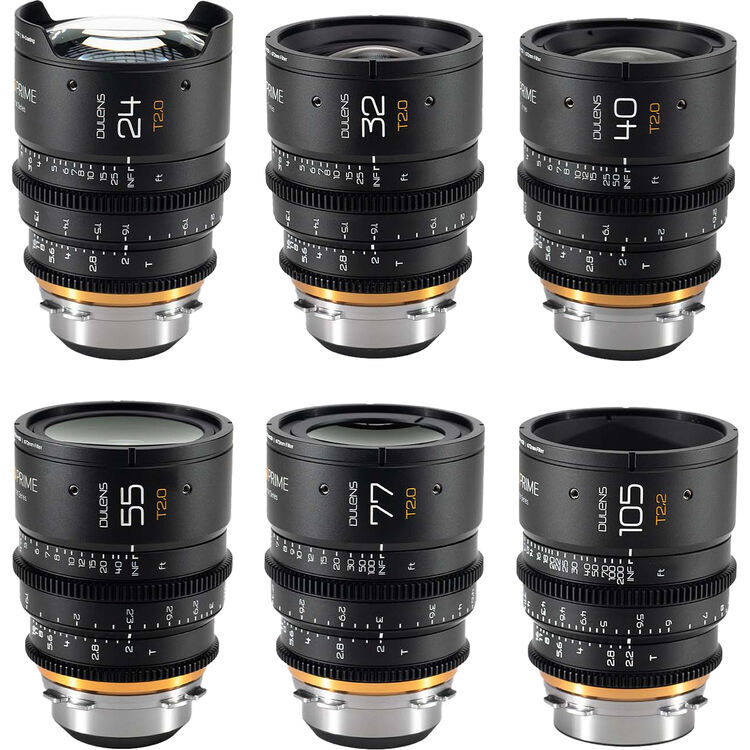

The Dulens APO Cambrian Prime Lens Set is a set of medium-format cinema prime lenses designed for large-format digital cinema cameras. The series aims to deliver high optical performance with a compact, lightweight body and consistent mechanical layout across focal lengths.

This lens is designed primarily for professional cinematography, with a PL mount, cine-standard gears, and large image coverage suitable for cameras such as ARRI ALEXA 65 and Vista Vision formats.


Key Specifications

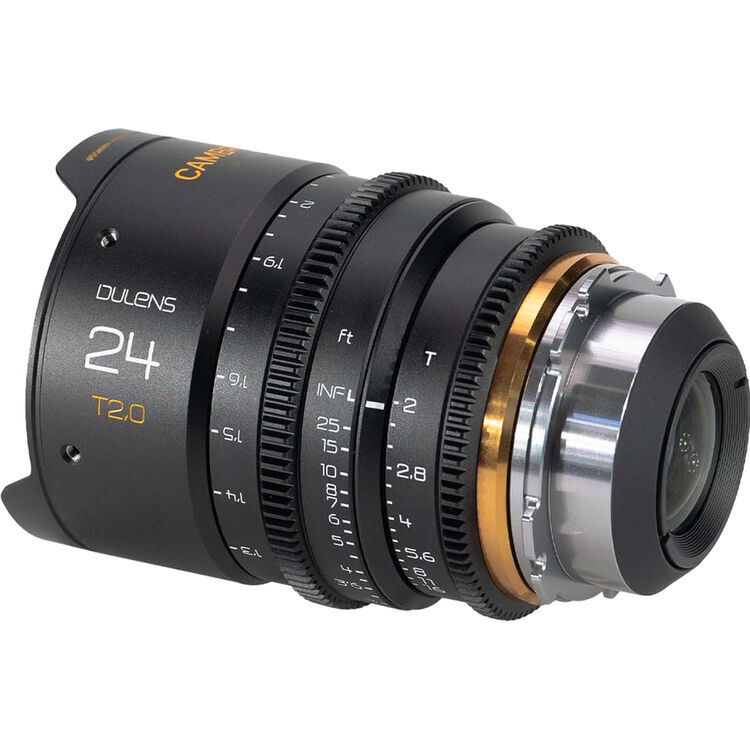

24mm

Specification Details
Focal length 24mm
Max aperture T2.0
Min aperture T16
Mount ARRI PL
Optical design 14 elements in 10 groups
Iris blades 11
Close focus 0.35m
Image circle Large format / medium format coverage
Filter thread 72mm
Front diameter 80mm
Focus rotation 270°
Gear pitch 0.8 MOD
Length ~109mm
Weight 890g

32mm

Specification Details
Focal length 32mm
Max aperture T2.0
Min aperture T16
Mount ARRI PL
Optical design 14 elements in 12 groups
Iris blades 11
Close focus 0.35m
Image circle Large format / medium format coverage
Filter thread 72mm
Front diameter 80mm
Focus rotation 270°
Gear pitch 0.8 MOD
Length ~100mm
Weight 800g

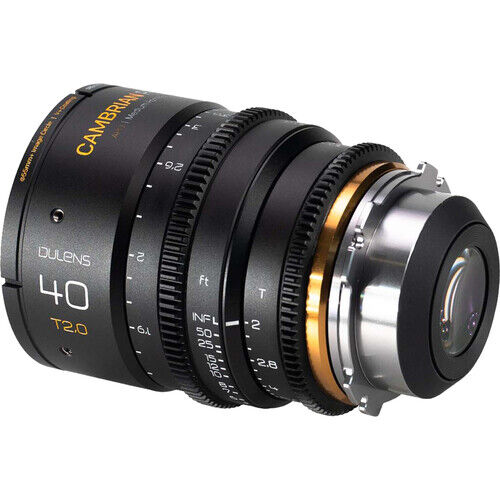

40mm

Specification Details
Focal length 40mm
Max aperture T2.0
Min aperture T16
Mount ARRI PL
Optical design 13 elements in 10 groups
Iris blades 11
Close focus 0.27m
Image circle Large format / medium format coverage
Filter thread 72mm
Front diameter 80mm
Focus rotation 270°
Gear pitch 0.8 MOD
Length ~100mm
Weight 780g

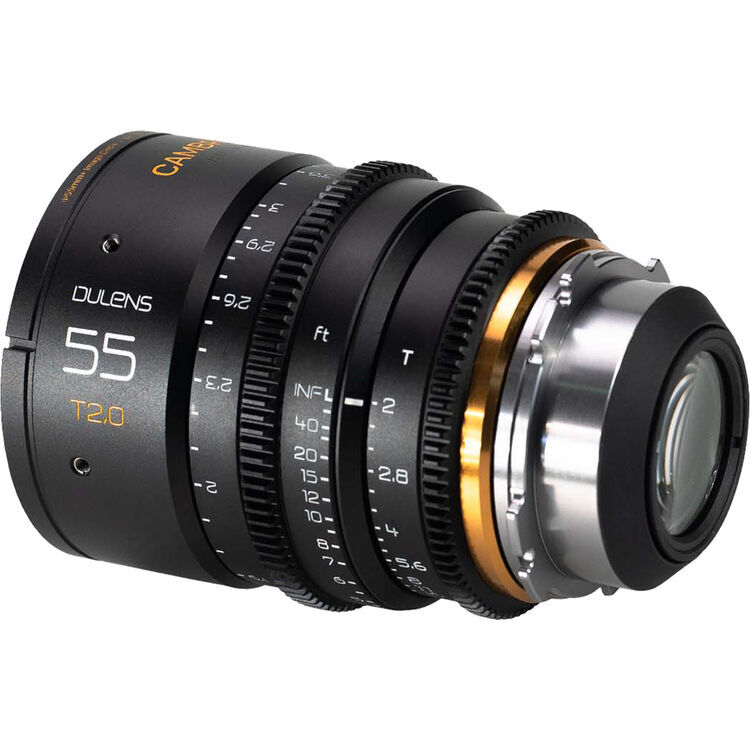

55mm

Specification Details
Focal length 55mm
Max aperture T2.0
Min aperture T16
Mount ARRI PL
Optical design 11 elements in 10 groups
Iris blades 11
Close focus 0.36m
Image circle Large format / medium format coverage
Filter thread 72mm
Front diameter 80mm
Focus rotation 270°
Gear pitch 0.8 MOD
Length ~100mm
Weight 750g



77mm

Specification Details
Focal length 77mm
Max aperture T2.0
Min aperture T16
Mount ARRI PL
Optical design 11 elements in 8 groups
Iris blades 11
Close focus 0.68m
Image circle Large format / medium format coverage
Filter thread 72mm
Front diameter 80mm
Focus rotation 270°
Gear pitch 0.8 MOD
Length ~100mm
Weight 790g

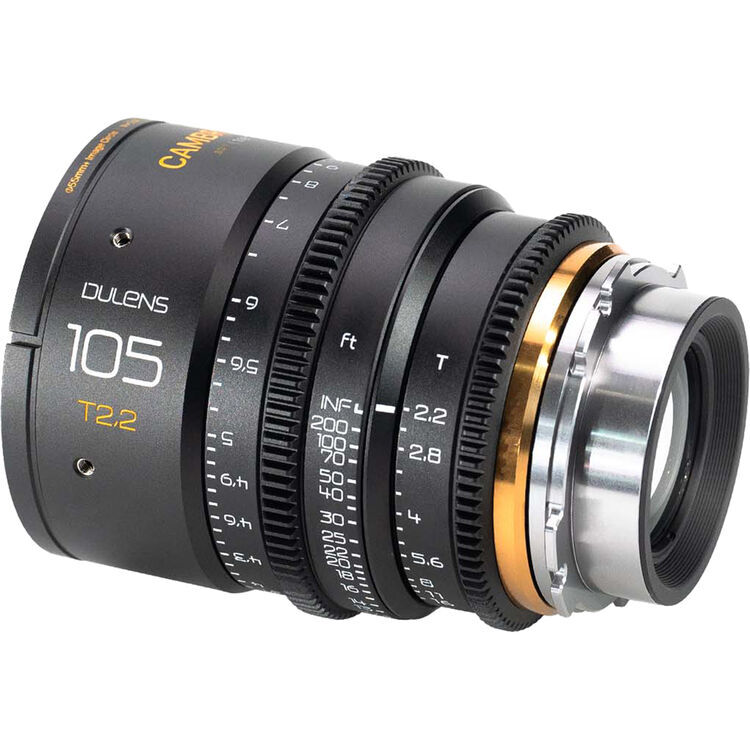

105mm

Specification Details
Focal length 105mm
Max aperture T2.2
Min aperture T16
Mount ARRI PL
Optical design 10 elements in 7 groups
Iris blades 11
Close focus ~1.2 m (3'10")
Image circle Large format / medium format coverage
Filter thread 72mm
Front diameter 80mm
Focus rotation 270°
Gear pitch 0.8 MOD
Length ~100mm
Weight 810g

Focal Length Convertion:

       FOCAL LENGTH                  On FUJI GFX             On ARRI ALEXA 65
24mm 19mm 17mm
32mm 25mm 22mm
40mm 32mm 28mm
55mm 43mm 39mm
77mm 61mm 43mm
105mm 83mm 74mm





(ACPCS-IB-PL)

SKU ACPCS-IB-PL
Brand Dulens
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.150m
Shipping Cubic 0.005625000m3
