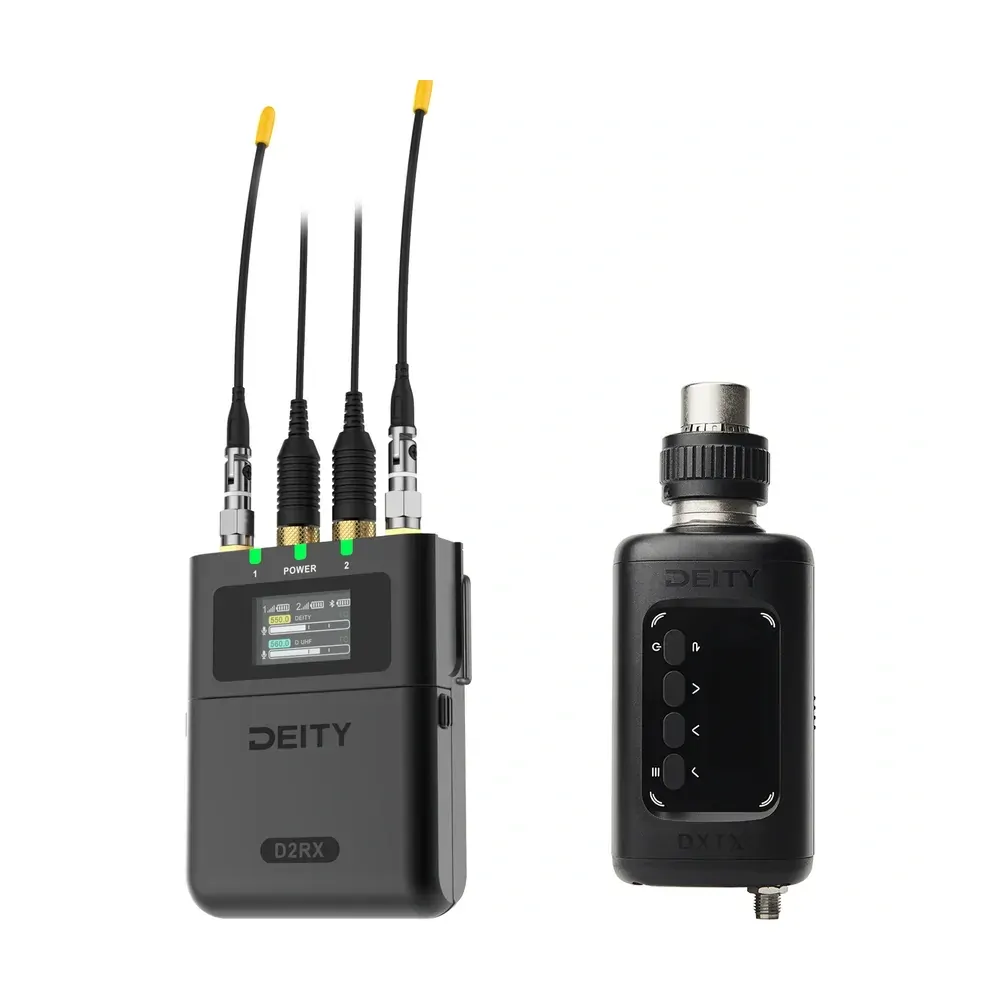

Deity Theos DXTX Single Chanell Kit

$1,165.00
Sold Out

or 4 payments of $291.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Product Features:

  • Record + Transmit XLR
  • 32-Bit Float Protection
  • Filmmaker, Videographer, Content Creator
  • For Use with DBTX Transmitter



Description

The Deity Theos DXTX Plug-On Transmitter features a Neutrik XLR locking female panel mount connector, simultaneous transmission and recording. a color screen, and up to fourteen hours of battery life on two AA batteries. Inside the battery door is an included 32Gb microSD card.

The EMC-XLR Series from Neutrik is a specifically designed to give it enhanced RF suppression during critical applications where there are radio transmission near the microphone.

The XLR connector on the DXTX also features 5V Bias. Today the majority of video microphones used on cameras either need bias voltage to run (ie. Deity V-Mic D4 Mini, RODE VideoMic GOii, or Sennheiser MKE400) or they need bias voltage to trigger themselves awake (like the Deity V-Mic D3 / D3 Pro or RODE VideoMic NTG**)

Rather than mounting the LEDS on the side of the unit, it's placed under the device for easy spotting when flying it on a boom pole, as well as hiding them from the camera lens when the DXTX is being used on-camera with handheld microphone during interviews.

Also on the bottom is the 50 Ohm SMA antenna port and USB-C port. This allow the DXTX to be integrated into larger systems like using it as an IFB or camera hop transmitter with a built-in backup recorder that could always be running as a safety take.

The Deity Microphones Theos D2RX Wireless Microphone Receiver allows for remote control functionality through the Sidus Audio app. The app allows you to run frequency scanning, coordination, change output modes, and more. This feature eliminates the need to physically handle the device, making it much more convenient when working with multiple units on set. You can pair up to 20 devices to a single phone.

The D2RX comes with SMA antenna ports, which allows you to swap out antennas to fine-tune your frequency or replace them if they get damaged. It can also be connected to external antennas or an antenna distribution system. This feature makes transporting your gear more compact in its case, which is especially useful when working on location.

Specifications

Deity Theos D2RX Wireless Microphone Receiver
Wireless Technology Digital UHF
Diversity True Digital Diversity
RF Frequency Band 550 to 608 MHz / 614 to 616 MHz / 653 to 663 MHz
RF Bandwidth 200 kHz
Frequency Step Size 100 kHz
RF Channel Scanning Auto-Scan
Timecode Support Yes
Mobile App Compatible Yes: Android & iOS
*As of July, 2023: Cheque with manufacturer for the most up-to-date compatibility
Modulation Proprietary
THD <0.5 %
Receiver
Receiver Type Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x External, SMA (Top-Mount)
Number of Audio Channels 2
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Output
Frequency Response 20 Hz to 20 kHz
Network I/O None
Network Protocols None
Word Clock I/O None
USB/Lightning Connectivity 1 x USB-C Female (Audio)
Standalone Audio Interface Capable No
Power Requirements Battery
Battery Type 2 x AA
Approx. Battery Life 8 Hour (Lithium)
Display & Indicators 1 x LCD (AF Level, Battery Status, Frequency, Sync, Transmitter Battery Status)
Housing Aluminium
Operating Temperature 68 to 113°F / 20 to 45°C
Weight 5.2 oz / 147 g (with Antenna, Batteries)
Deity Theos DXTX Plug-On Transmitter
Frequency Range 806.2 MHz – 809.7 MHz
RF Power 10 mW
Channel Frequency Spacing 700 kHz
Antenna Connector 50Ω SMA
Dynamic Range 123 dB
Frequency Response 20 Hz – 20 kHz
Microphone Connector 3-pin XLR / 5-pin XLR
Microphone Power MIC-5V, MIC-48V, LINE, AES 42-10V, AES 3
Low Cut Options OFF, 75 Hz, 100 Hz, 150 Hz
ADC Bit Depth 2 × 24-bit
ADC Sampling Rate 48 kHz
Input Gain 0 to +42 dBu
Dimensions (H × W × D) 119 mm × 44.8 mm × 42 mm
Operating Temperature -20°C to +45°C
Time Code Function
TC Accuracy 0.15 PPM
TC Type LTC (SMPTE)
TC Frame Rates 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF
Internal Recording
Recording Medium Micro SD
File Formats .wav
Recording Format 24-bit / 32-bit float

(DG040A0377)

SKU DG040A0377
Brand Deity
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.300m
Shipping Length 0.150m
