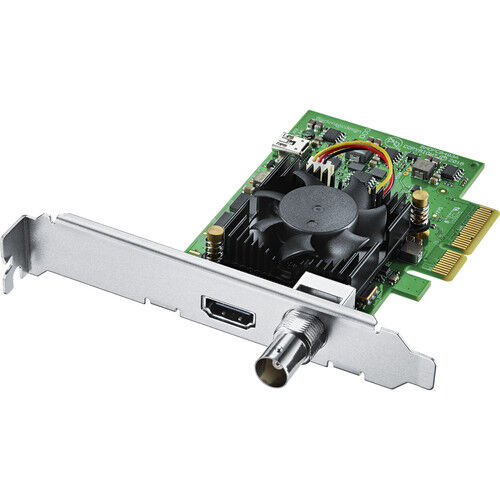

Blackmagic Design DeckLink Mini Recorder 4K

$339.00
Sold Out

or 4 payments of $84.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design DeckLink Mini Recorder 4K
  • Low-Profile Bracket
  • Limited 3-Year Manufacturer Warranty

Key Features

  • SD/HD/3G/6G-SDI Input
  • HDMI Input
  • PCI-Express 2.0 x4 Interface
  • DCI 4K, UHD, HD, and SD Video Support
  • 10-Bit Processing
  • Hardware Color Space Conversion
  • Software HD Down-Conversion
  • MacOS X, Windows, and Linux Compatible

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.

Processing Features

  • Color Space Conversion: Hardware-based, real-time color space conversion
  • HD Up-Conversion: Software-based down-conversion during video playback

Software Support

DaVinci Resolve, Fusion, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Media Express, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro/Studio/Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Blackmagic Design Mini Recorder 4K Specs

Inputs/Outputs

Video I/O

Input
1x BNC (6G-SDI) Female
1x HDMI 2.0a Female

Format Support

Video Resolution

BNC Input (8/10-Bit 4:2:2 YUV)
4096 x 2160 at 23.98/24/25 fps
3840 x 2160 at 23.98/24/25/29.97/30 fps
2048 x 1080p at 23.98/24/25 fps
2048 x 1080PsF at 23.98/24/25 fps
BNC Input (8/10/12-Bit 4:4:4 RGB)
1920 x 1080p at 23.98/24/25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1920 x 1080PsF at 23.98/24/25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94 fps
HDMI Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
4096 x 2160
3840 x 2160
1920 x 1080p
1920 x 1080PsF
1920 x 1080i
1280 x 720
720 x 576i

Audio Format

Unspecified Digital Signal Input: 48 kHz / 24-Bit

Embedded Audio

SDI: 16-Channel
HDMI: 8-Channel

Standards

Video Standard Compliance

SMPTE: 259M/292M/372M/425M/ST-2081
ITU-R: BT.601/BT.656

HDR Support

Yes: Hybrid Log Gamma

Broadcast System Compatibility

NTSC, PAL

Hardware

OS Compatibility

Windows 7 or Later
macOS 10.14 or Later
Linux

Power

Power Consumption

8 W

General

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

Dimensions

4.7" / 11.94 cm

Weight

3.17 oz / 90 g

(BDLKMINIREC4K)

SKU BDLKMINIREC4K
Barcode # 9338716004366
Brand Blackmagic Design
Shipping Weight 1.0000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
