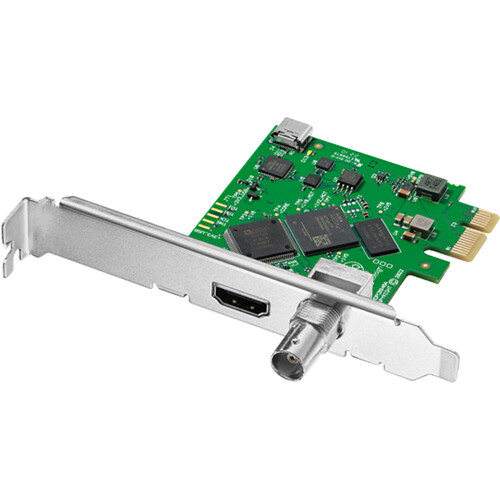

Blackmagic Design DeckLink Mini Monitor HD

$219.00
Sold Out

or 4 payments of $54.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design DeckLink Mini Monitor HD
  • Low-Profile Slot Bracket
  • Limited 1-Month Manufacturer Warranty

Key Features

  • Broadcast-Quality Playback & Monitoring
  • 1-Lane PCIe Slot Card (for 1-16 Lanes)
  • SDI and HDMI Outputs
  • Up to 1080p60 Resolution Support in HDMI
  • Supports up to 2K DCI over SDI
  • 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
  • REC 601/709 Color Space Support
  • Mac, Windows, and Linux Compatible

The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

Supported Software Applications

  • DaVinci Resolve
  • Fusion
  • Final Cut Pro
  • Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC
  • Avid Media Composer, Avid Pro Tools
  • Steinberg Cubase, Steinberg Nuendo
  • The Foundry Nuke
  • Sony Catalyst Production Suite
  • Tools On Air Just: Play & Live
  • Magix Movie Edit Pro Premium
  • Corel VideoStudio Pro
  • CyberLink Power Director
  • Grass Valley Edius
  • Softron Mreplay
  • Telestream Wirecast
  • Livestream Studio
  • Resolume Arena
  • Vegas Creative Software Vegas Pro
  • VidblasterX Studio and Broadcast
  • Unimedia Technologies UniplayOne and Uniplay-CG
  • CasparCG Server
  • Magicsoft CG
  • Xsplit Broadcaster
  • DevTek Easy Media Suite
  • Boinx Software MimoLive
  • StudioCoast vMix
  • Renewed Vision ProPresenter
  • Ventuz Director
  • Class X Liveboard and CoralCG
  • Open Broadcaster Software Studio
  • Nautilus Studio Nemo3D
  • Burst Video Webclip2Go
  • Derivative TouchDesigner
  • Assimilate Scratch and Live Assist
  • NewBlue Title Live and Titler Pro
  • SGO Mistika

Supported Codecs

  • AVC-Intra
  • AVCHD
  • Canon XF MPEG2
  • Digital SLR
  • DV-NTSC
  • DV-PAL
  • DVCPRO50
  • DVCPROHD
  • DPX
  • HDV
  • HEVC
  • XDCAM EX
  • XDCAM HD
  • XDCAM HD422
  • DNxHR & DNxHD
  • AppleProRes 4444
  • Apple ProRes 422 HQ
  • Apple ProRes 422
  • Apple ProRes 422LT
  • Apple ProRes 422 Proxy
  • Uncompressed 8-bit 4:2:2
  • Uncompressed 10-bit 4:2:2
  • Uncompressed 10-bit 4:4:4

Hardware Frame Buffer

v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)

Blackmagic Design Mini Monitor HD Specs

Inputs/Outputs

System Connection

(Length Unspecified)

Format Support

Embedded Audio

SDI: 16-Channel
HDMI: 8-Channel

Standards

HDR Support

Not Specified by Manufacturer

Hardware

OS Compatibility

macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
Linux

Power

Power Consumption

Device: 3 W

General

Dimensions

3.62" / 91.95 mm

Weight

1.98 oz / 56 g

(BDLKMINIMON3G)

SKU BDLKMINIMON3G
Barcode # 9338716007916
Brand Blackmagic Design
Shipping Weight 1.0000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
