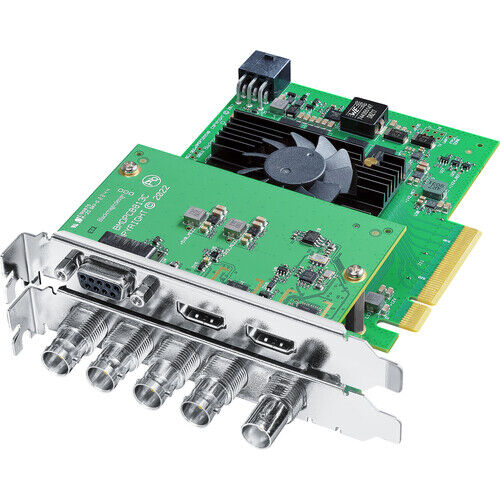

Blackmagic Design DeckLink 8K Pro G2 Capture Card

$1,275.00
Sold Out

or 4 payments of $318.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design DeckLink 8K Pro G2 Capture Card
  • HDMI 2.1 Mezzanine Card
  • Power Cable
  • Set of Spacers & Screws
  • Welcome Wallet with QR Code for Software Download
  • Limited 3-Year Manufacturer Warranty

Key Features

  • 8K PCIe Capture & Playback Card
  • Supports SD, HD, UHD, 4K & 8K Formats
  • 4 x Bidirectional 12G-SDI Ports
  • HDMI 2.1 Input & Output
  • 4:2:2/4:4:4. 2D/3D Switchable
  • RS-422 Deck Control
  • HD & 4K at up to 120 fps
  • 64 Channels Embedded in 4K/8K via SDI
  • Compatible with macOS, Windows & Linux

The DeckLink 8K Pro G2 supports 8- and 10-bit YUV 4:2:2 as well as 10- and 12-bit RGB 4:4:4 with full Rec. 2020 color. The card allows working at up to 120 fps in HD and 4K, and up to 60 fps in 8K. The four 12G-SDI connections also support up to 64 channels of embedded audio. It is compatible with 8- and 16-lane PCI Express slots on macOS, Windows, and Linux systems and requires 2 PCI slots plus connection to computer power supply. The DeckLink 8K Pro G2 is ideal for the next generation of high-resolution, high frame rate, and high dynamic range workflows.

Compatible with Various Software Applications

Including: DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Autodesk Flame, Adobe Photoshop, Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, and Zoom.

Blackmagic Design 8K Pro G2 Specs

Inputs/Outputs

Video I/O

Input/Output
4x BNC (12G-SDI) Female
Input
1x HDMI 2.1 Female
Output
1x HDMI 2.1 Female

Other I/O

Input
1x BNC (Blackburst)
Input
1x DE-9/DB-9 (RS-422)

Format Support

Video Resolution

BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps
2048 x 1080PsF at 50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps
1920 x 1080PsF at 50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps
HDMI Input/Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Audio Format

Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit

Embedded Audio

SDI Input: 64-Channel
SDI Output: 64-Channel
HDMI Input: 32-Channel
HDMI Output: 32-Channel

Standards

Video Standard Compliance

SMPTE: 259M/274M/292M/296M/372M/424M/425M/425M-A/425M-B/2048-1/ST 2081-10/ST 2082-11/ST 2082-12

HDR Support

Yes: Hybrid Log Gamma

Broadcast System Compatibility

NTSC, PAL

Hardware

OS Compatibility

macOS 13.0 or Later
Windows 10 or Later (64-Bit Only)
Linux

Power

Power Consumption

30 W

General

Operating Conditions

41 to 122°F / 5 to 50°C up to 90% Humidity

Storage Conditions

-4 to 140°F / -20 to 60°C up to 90% Humidity

Dimensions

6.41" / 16.28 cm

Weight

10.4 oz / 295 g

(BDLKHCPRO8K12GG2)

SKU BDLKHCPRO8K12GG2
Barcode # 9338716008579
Brand Blackmagic Design
Shipping Weight 1.0000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
