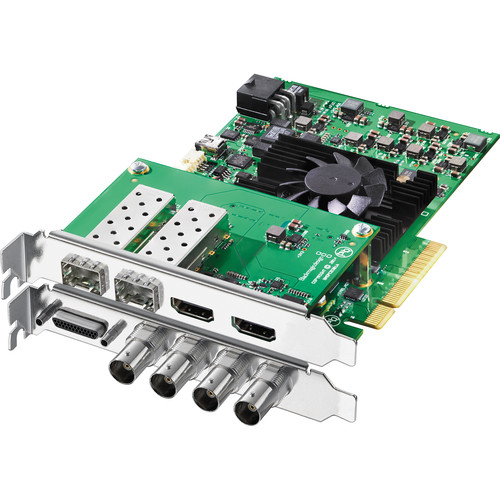

Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card

$1,705.00
Sold Out

or 4 payments of $426.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
  • HDMI Mezzanine Card
  • Breakout Cable for Analog I/O and RS-422 Control
  • SD Card with Software
  • Limited 3-Year Manufacturer Warranty

Key Features

  • 8-Lane PCIe Gen2 I/O Card
  • Multi-Rate 12G-SDI & HDMI Connections
  • Supports UHD 4K & DCI 4K up to 60 fps
  • Single & Dual-Link 4:4:4:4/4:2:2 Signals
  • 3D Stereoscopic SDI Output at 4:4:4:4
  • Up/Down/Cross Conversion
  • Optional Optical Fiber I/O Modules
  • Breakout Cable for Analog / RS-422
  • Genlock & Deck Control
  • Compatible with Mac, Windows & Linux

Flexible Format Support

The card offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 12-bit 4:4:4 uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac-, Windows-, and Linux-based workstations.

Optical Fiber Connections

Two optical fiber connections on the daughter card support optional optical fiber modules for Dual Link optical fiber SDI input and output. SMPTE compatible optical modules can be added for up to 12G-SDI speeds, allowing you to choose to connect equipment using optical fiber connections instead of regular BNC copper cables for much longer cable runs, even at 12 Gb/s speeds.

Blackmagic Design Extreme Specs

Inputs/Outputs

System Connection

PCIe 2.0 x8

Video Inputs

2x BNC (12G-SDI)
1x HDMI (2.0b)
1x 3BNC (Component/Composite/S-Video)

Audio Inputs

No

Video Outputs

2x BNC (12G-SDI)
1x HDMI (2.0b)
1x 3BNC (Component/Composite/S-Video)

Simultaneous Multi-Input Support

Yes: 2 Simultaneous Inputs

Format Support

Input Video Format

Component / Composite / SDI (8/10/12-Bit 4:4:4/4:2:2)
DCI 4K at 23.98/24 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Component
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Composite
576i / 625 lines
480i / 525 lines

Input Audio Format

AES/EBU

Output Video Format

SDI (8/10/12-Bit 4:4:4/4:2:2)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Component / Composite
480i / 525 lines at 59.94 fps
576i / 625 lines 50 fps

Output Audio Format

AES/EBU

Embedded Audio

SDI: 16-Channel
HDMI: 8-Channel

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/425M/435/2108-1/ST-2081/ST-2082/ST-2082-10
ITU -R BT.601/BT.656

HDR Support

Hardware

OS Compatibility

macOS 10.15
macOS 11.1 or Later
Linux
Windows 8.1
Windows 10

Power

Power Consumption

Device: 30 W

Environmental

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

General

Dimensions

6.69" / 169.93 mm

Weight

0.66 lb / 299 g

(BDLKHDEXTR4K12G)

SKU BDLKHDEXTR4K12G
Barcode # 9338716002881
Brand Blackmagic Design
Shipping Weight 1.0000kg
Shipping Width 0.160m
Shipping Height 0.230m
Shipping Length 0.110m
