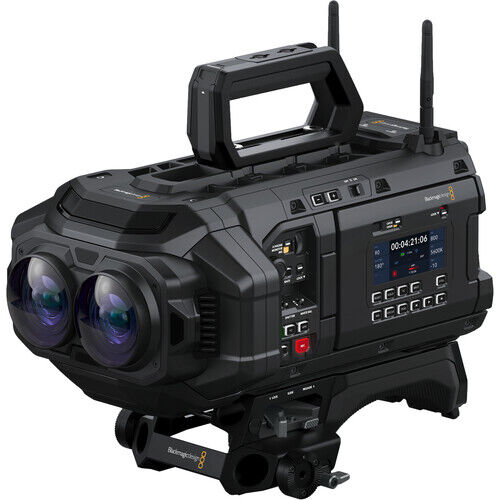

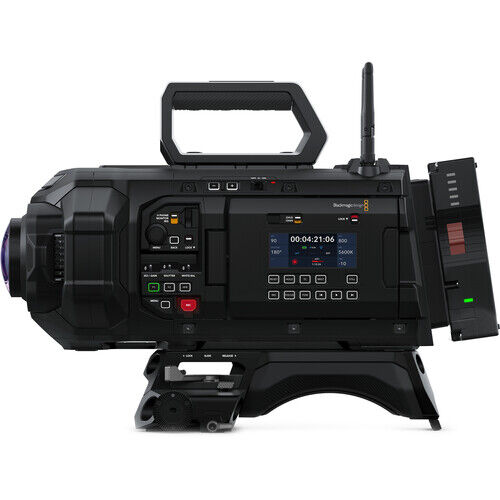

Blackmagic Design URSA Cine Immersive Camera
Items Included
- Blackmagic Design URSA Cine Immersive Camera
- Blackmagic Media Module (8TB)
- 2 x Antenna
- B-Mount Battery Plate
- 250W Power Supply
- Limited 1-Year Manufacturer Warranty
Key Features
- Apple Immersive Video Support
- Dual 8160 x 7200 58.7MP Sensors
- 180° Media Format
- 8K Captured at up to 90 fps Supported
- 16 Stops of Dynamic Range
- Fold-Out 5" HDR Touchscreen Monitor
- 12G-SDI/Ethernet/USB-C/XLR Connectivity
- Antennas for High-Speed Wi-Fi
- DaVinci Resolve Studio Software Included
- Magnesium Alloy & Carbon Fiber Build

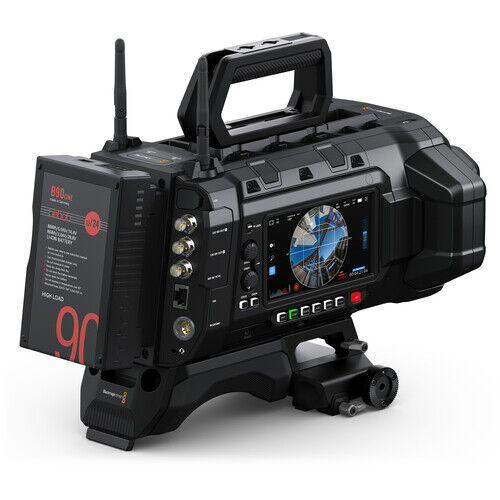

A set of antennas is included for high-speed Wi-Fi capability, along with a digital download code for DaVinci Resolve Studio editing software. Designed with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate skin, the URSA Cine Immersive provides reliability and easy mobility around the studio and on location. Power may be supplied via the integrated 8-pin LEMO connector on the rear of the camera using optional 12 and 24V power supplies or via the included B-mount battery plate when employing separately available high-voltage batteries like IDX, Blueshape, Core SWX, BEBOB, and more.
URSA Cine Immersive at a Glance
- Dual custom lenses for shooting Apple Immersive Video for Apple Vision Pro
- Dual 8160 x 7200 (58.7MP) sensors for stereoscopic 3D immersive image capture
- 16 stops of dynamic range
- Lightweight, robust camera body with industry-standard connections
- Generation 5 Color Science with new film curve
- Each sensor supports 90 fps at 8K captured to a single Blackmagic RAW file
- Includes high-performance Blackmagic Media Module 8TB for recording
- High-speed Wi-Fi, 10G Ethernet, or mobile data for network connections
DaVinci Resolve Immersive Features
- Monitoring on Apple Vision Pro from the DaVinci Resolve Studio timeline
- Edit Blackmagic RAW Immersive video shot on URSA Cine Immersive
- Immersive video viewer for pan, tilt, and roll
- Complete post-production workflow for Immersive with edit, color, audio, and graphics
- Export and deliver native files for viewing on Apple Vision Pro
Blackmagic Design URSA Cine Immersive Specs
Key Specs
| Image Sensor |
Dual Large Format |
| Effective Sensor Resolution |
58.7 Megapixel |
| Image Stabilization |
Supplies Stabilization Metadata |
| ISO/Gain Sensitivity |
Native in Manual Mode: 200 to 3200 |
| Internal Recording |
Blackmagic RAW |
| Video Output |
SDI/BNC |
| Media/Memory Card Slot |
Single Slot: Blackmagic Media Module [8 TB Maximum] |
| Video I/O |
2x BNC (12G-SDI) Output |
| Mobile App Compatible |
No |
| Battery |
B-Mount |
Imaging
| Image Sensor |
Dual 23.66 x 20.88 mm (Large Format) CMOS |
| Effective Sensor Resolution |
58.7 Megapixel |
| Image Stabilization |
Supplies Stabilization Metadata |
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 8-Stop (1/256) ND Filters |
| Capture Type |
Video Only |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter |
| Shutter Angle |
11.2 to 360° |
| ISO/Gain Sensitivity |
Native in Manual Mode: 200 to 3200 |
| Signal-to-Noise Ratio |
Not Specified by Manufacturer |
| Advertised Dynamic Range |
16 Stops |
Lens
| Maximum Aperture |
f/4.5 |
| Still Image Support |
No |
Focus
| Focus Mode |
Fixed Focus |
Video Capture
| Internal Recording |
Blackmagic RAW |
| Video Output |
SDI/BNC |
| Fast-/Slow-Motion Support |
Slow-Motion Only |
| Built-In Microphone |
Stereo |
| Audio Recording |
4-Channel |
| IP Streaming |
Yes |
Interface
| Media/Memory Card Slot |
Single Slot: Blackmagic Media Module [8 TB Maximum] |
| Internal Storage |
No |
| Video I/O |
2x BNC (12G-SDI) Output |
| Audio I/O |
2x XLR 3-Pin Input |
| Power I/O |
1x LEMO 8-Pin (24VDC) |
| Other I/O |
1x BNC (Reference, Timecode) Input |
| Wireless |
Wi-Fi |
| Mobile App Compatible |
No |
| Global Positioning (GPS, GLONASS, etc.) |
No |
Monitor
| Display Type |
Articulating 5" Touchscreen LCD |
| Resolution |
1920 x 1080 |
Viewfinder
| Type |
Optional, Not Included |
| Resolution |
1920 x 1080 |
Power
| Battery |
B-Mount |
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions |
-4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
General
| Shoe Mount |
No |
| Tripod Mount |
No |
| Lens Accessory Thread |
No |
| Accessory Mounting Thread |
4x 1/4"-20 on Camera Body |
| Dimensions (W x H x D) |
Not Specified by Manufacturer |
| Weight |
11.9 lb / 5398 g (Body Only) |
(CINEURSAA24DSIM)
| SKU | CINEURSAA24DSIM |
| Barcode # | 9338716009743 |
| Brand | Blackmagic Design |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.650m |
| Shipping Length | 0.350m |
