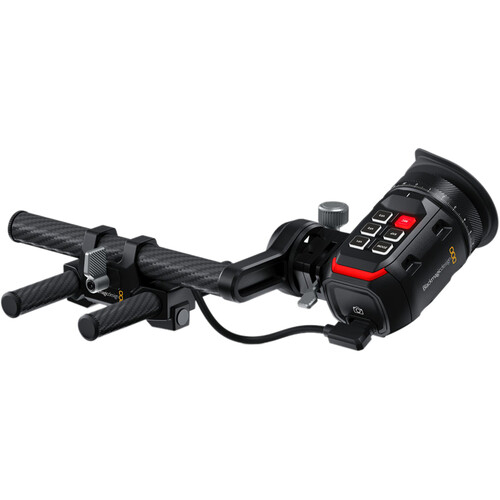

Blackmagic Design URSA Cine EVF
Items Included
- Blackmagic Design URSA Cine EVF
- Rotating Bracket
- Carbon Fiber Rod (19mm)
- 2 x Carbon Fiber Rod (15mm)
- Extension
- Right-Angle to Right-Angle USB Viewfinder Cable (Short)
- Right-Angle to Straight USB Viewfinder Cable (Short)
- Right-Angle to Straight USB Viewfinder Cable (Long)
- 2 x Rubber Eyecup
- Fabric Cloth
- Sticker
- Limited 1-Year Manufacturer Warranty
Key Features
- For URSA Cine 12K Cinema Camera
- Also Works with PYXIS 6K Cameras
- 1920 x 1080p60 Resolution OLED Display
- USB-C Connection to Camera
- Zoom, Exposure, Record Buttons
- Rotating Bracket, Tally LED
- +5/-5 Diopter, 15mm Rod Clamp
- 19 & 15mm Carbon Fiber Rods
The built-in proximity sensor switches on the EVF only when it's in use to save power, and it features a 4-element glass diopter that provides a range of adjustments. The EVF connects to the URSA Cine 12K or PYXIS 6K using a USB-C cable, which is also used for firmware updates. Also included are two different rubber eyecups to give you options for comfort and size.
NOTE: The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.
Compatibility
- Blackmagic URSA Cine 12K LF cameras
- Blackmagic PYXIS 6K cameras
- Blackmagic URSA Cine Handle
- The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports
Blackmagic Design URSA Cine EVF Specs
Key Specs
| Panel Type |
OLED |
| Screen Resolution |
1920 x 1080 |
| Diopter Correction |
-5.0 to +5.0 |
| Inputs/Outputs |
1x USB-C 3.0 / 3.1/3.2 Gen 1 Camera Input |
Display
| Panel Type |
OLED |
| Screen Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Color Support |
16.2 Million Colors (6-Bit+FRC) |
Optics
| Diopter Correction |
-5.0 to +5.0 |
Inputs / Outputs
| Inputs/Outputs |
1x USB-C 3.0 / 3.1/3.2 Gen 1 Camera Input |
| Video Format |
USB |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity |
| Tripod/Accessory Mounting |
Left |
| Dimensions |
21.13 x 7 x 3.5" / 536.7 x 177.8 x 88.9 mm |
| Weight |
3.5 lb / 1.6 kg |
(CINEURSABEVF)
| SKU | CINEURSABEVF |
| Barcode # | 9338716008661 |
| Brand | Blackmagic Design |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.650m |
| Shipping Length | 0.350m |
