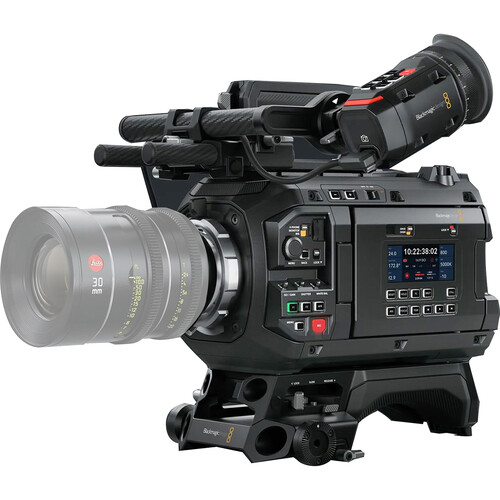

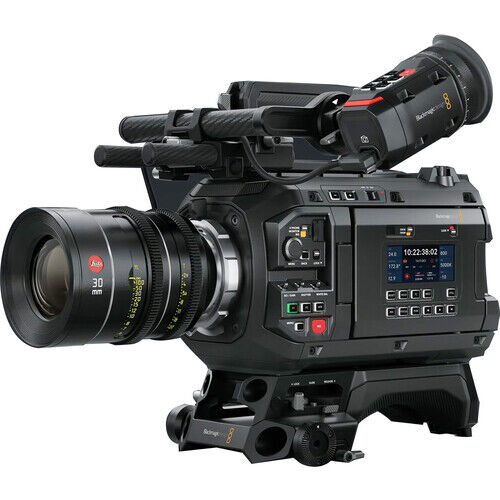

Blackmagic Design URSA Cine 17K 65 Camera and URSA Cine EVF Kit

Items Included

• Blackmagic Design URSA Cine 17K 65
  • PL Mount (Preinstalled)
  • Media Module (8TB)
  • URSA Cine Top Handle
  • URSA Cine Top Rod Mount
  • Baseplate 19
  • Antenna Set
  • URSA Cine Mount LPL Mount
  • LPL Body Cap
  • PL Body Cap
  • Folding LCD Hood
  • 24V Power Supply
  • B-Mount Battery Plate
  • Pelican Storage Case
  • Custom-Cut Foam Insert
  • DaVinci Resolve Studio License (Download)
  • Limited 1-Year Manufacturer Warranty
• Blackmagic Design URSA Cine EVF
  • Rotating Bracket
  • Carbon Fiber Rod (19mm)
  • 2 x Carbon Fiber Rod (15mm)
  • Extension
  • Right-Angle to Right-Angle USB Viewfinder Cable (Short)
  • Right-Angle to Straight USB Viewfinder Cable (Short)
  • Right-Angle to Straight USB Viewfinder Cable (Long)
  • 2 x Rubber Eyecup
  • Fabric Cloth
  • Sticker
  • Limited 1-Year Manufacturer Warranty

Key Features

• URSA Cine 17K 65 Cinema Camera
• URSA Cine EVF
• PL, LPL, EF & Hasselblad Lens Options
• 8TB Media Module, B-Mount Battery Plate

Get ready for big and bold cinema with the Blackmagic Design URSA Cine 17K 65 digital cinema camera. This 17K cinema camera provides a brand-new large-format 65mm RGBW sensor with 17,520 x 8040 resolution and numerous improvements over the URSA Cine 12K. Interchangeable lens mounts, built-in OLPF, 8TB of built-in storage, built-in live streaming, Generation 5 color science, and integration with the Blackmagic Cloud and the Blackmagic cinema ecosystem.

Quick Features

• Cinematic ultra-large format 2.2:1 aspect sensor with a massive 16 stops of dynamic range
• Lightweight camera body with industry-standard connections
• Blackmagic RAW for real-time 17K editing
• Generation 5 Color Science with new film curve
• Interchangeable lens mount with PL, LPL, EF, and Hasselblad options
• Built-in OLPF for reduced moire and aliasing
• Includes Blackmagic Media Module 8TB for recording
• Compatible with the Blackmagic Media Dock
• High-speed Wi-Fi, 10G Ethernet, or mobile data for network connections
• Built-in RTMP and SRT live streaming
• Optional Blackmagic URSA Cine EVF
• Includes DaVinci Resolve Studio for post-production

New 17K Sensor

The new URSA Cine 17K 65 camera features a new 65mm sensor designed for high-quality images at all resolutions from 4K to a massive 17K. The larger sensor builds on URSA Mini Pro 12K technology with 16 stops of dynamic range. The RGBW architecture provides equal amounts of red, green, and blue pixels to deliver rich colors at all resolutions.

Storage Options

Blackmagic Media Dock accelerates post-production workflow by making it faster and simpler to start editing and color correction. You can mount up to three Blackmagic Media Modules for high-speed access to media from multiple URSA Cine cameras, all at the same time.

The URSA Cine 17K records to the included Blackmagic Media Module 8TB, allowing customers to capture over four hours of Blackmagic RAW in 17K using the full 65mm sensor aperture or up to 20 hours in 4K. Customers can also use the optional Blackmagic Media Module CF, which has dual CFexpress slots.

Built-In Cloud Storage

The URSA Cine 17K features built-in ultra-fast Cloud Store technology, allowing customers to record at the highest resolutions and frame rates for hours and access their files directly over high-speed 10G Ethernet. It supports creating a small H.264 proxy file in addition to the camera's original media for upload to Blackmagic Cloud in seconds, so their media is available back at the studio in real time.

Lens Options

The lens mount is user-interchangeable between PL, LPL, EF, and Hasselblad mounts. A PL lens mount comes preinstalled on the camera body, and an LPL mount is included. Each mount has contact pins to read lens metadata for monitoring and post-production.

Built-In OLPF

The camera includes a high-performance, optical low-pass filter that is precisely matched to the sensor. The OLPF also incorporates updated IR filtering that improves far red color response, which, when combined with Blackmagic RAW processing for the URSA Cine 17K, preserves color and critical image detail for new levels of image fidelity.

Blackmagic Raw Capture

Blackmagic RAW is a format designed to capture and preserve the quality of the sensor data from your camera. Blackmagic RAW files store camera metadata, lens data, white balance, digital slate information, and custom LUTs to ensure consistency of image on set and through post-production. URSA Cine records to the included Blackmagic Media Module 8TB, allowing you to capture over 4 hours of Blackmagic RAW in 12K or 20 hours in 4K.

Built-In ND Filters

The URSA Cine features high-quality built-in ND filters that let you quickly reduce the amount of light entering the camera. Designed to match the colorimetry and color science of the camera, the 2, 4, and 6-stop filters provide you with additional latitude even under harsh lighting. The IR filters have been designed to filter both optical wavelengths and IR wavelengths evenly to eliminate IR contamination of the images from which many ND filters can suffer.

Monitoring Options

There is a large foldout 5" HDR touchscreen monitor on one side and an external color status LCD on the other. There is also a second 5" HDR touchscreen, allowing the crew to work around the camera without needing external monitors. There's even a dedicated focus puller mode to help customers get perfect focus. The URSA Cine 17K supports the optional Blackmagic URSA Cine EVF to make outdoor and handheld shooting accurate and easy.

Accessory and Control Ports

The 7-pin LEMO and 3-pin Fischer connectors on the front of the camera provide record start/stop and 24V power and are ideal for onboard accessories such as focus motors.

Wireless Bluetooth Control

If you're positioning the camera on the end of a jib or gimbal, you can get full control via Bluetooth from up to 30' away using Bluetooth. The Blackmagic Camera Control app for iPad or third-party apps such as Bluetooth+ or tRigger can control the camera from your iOS and Android devices. A free developer SDK with sample code is also available from the Blackmagic Design developer website, so you can create your own remote camera control and digital slate solutions.

Post-Production Workflows

There are three main post-production workflows that the URSA Cine 17K supports:

• You can record to the internal Blackmagic Media Module
• If you're offline, you can browse media and manually select which clips you want to upload later
• Live Sync your DaVinci Resolve project with Blackmagic Cloud. As the camera is recording, the media will continuously upload and sync to all DaVinci users on that project

Streaming Options

You can live stream directly from the camera using its hardware streaming engine, which supports RTMP and SRT streaming to major platforms or directly to clients. Simply connect to the internet via Ethernet, high-speed Wi-Fi, or even connect a 4G or 5G connection for mobile data.

Ample Power

An 8-pin LEMO connector on the back of the camera is compatible with 24V and 12V power supplies, so you can use new or existing ways to power your camera. The camera includes a 250W power supply and a B-mount battery plate, so customers can use a wide range of high-voltage batteries from manufacturers such as IDX, Blueshape, Core SWX, BEBOB, and more. There's also an additional 12V 2-pin LEMO output on the rear of the camera to power lower-voltage accessories.

Versatile Body Design

The evenly weighted camera body is built with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin to help customers move quickly on set.

Complete Base Package

Every camera comes in a rugged Pelican case with custom-cut foam to fit the camera and its accessories. It also includes a top handle, antennas for high-speed Wi-Fi, a baseplate, and a 24V power supply.

Localized in 13 Languages

When setting up your camera, you can choose to work in English, German, French, Spanish, Portuguese, Italian, Polish, Russian, Ukrainian, Turkish, Chinese, Japanese, or Korean. It's easy to switch to another language, and it will display that language on all on-screen overlays, setup menus, and monitoring information in the selected language.

Blackmagic Design URSA Cine EVF

Add the high-resolution URSA Cine EVF to your Blackmagic Design URSA Cine 12K or PYXIS 6K camera for crisp, clear images, making shooting easy in any environment. The EVF features a 1920 x 1080 color OLED display supporting up to 60 fps to view your image with status information, frame guides, and even a built-in focus chart to help you achieve the sharpest focus. It mounts on top of your camera using the included bracket assembly, which includes a 15mm rod clamp, a 19mm cross rod, and two carbon fiber 15mm rods. A tally light allows you to clearly see when the camera is rolling.

The built-in proximity sensor switches on the EVF only when it's in use to save power, and it features a 4-element glass diopter that provides a range of adjustments. The EVF connects to the URSA Cine 12K or PYXIS 6K using a USB-C cable, which is also used for firmware updates. Also included are two different rubber eyecups to give you options for comfort and size.

NOTE: The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.

Compatibility

• Blackmagic URSA Cine 12K LF cameras
• Blackmagic PYXIS 6K cameras
• Blackmagic URSA Cine Handle
• The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports

Blackmagic Design URSA Cine 17K 65

Key Specs

Lens Mount	Interchangeable Mount
Image Sensor	Large Format
Effective Sensor Resolution	140.8 Megapixel (17,520 x 8040)
Image Stabilization	No
Internal Recording	Blackmagic RAW Up to 17K up to 60.00 fps
Video Output	SDI/BNC Up to DCI 4K at 25/24.00/30.00/29.97/50/59.94/60.00/23.98 fps
Media/Memory Card Slot	No
Video I/O	2x BNC (12G-SDI) Output
Mobile App Compatible	Yes: Android & iOS
Battery	B-Mount

Imaging

Lens Mount	Interchangeable Mount
Lens Communication	Yes
Image Sensor	50.8 x 23.3 mm (Large Format) CMOS
Effective Sensor Resolution	140.8 Megapixel (17,520 x 8040)
Image Stabilization	No
Built-In CC Filter	No
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Advertised Dynamic Range	16 Stops

Focus

Focus Mode

Automatic, Manual Focus

Video Capture

Internal Recording	Blackmagic RAW 17520 x 8040 up to 60.00 fps 16128 x 8040 15360 x 8040 14304 x 8040 12288 x 8040 9648 x 8040 17520 x 7296 12288 x 6912 12288 x 6480 11680 x 5360 up to 100 fps 10752 x 5360 8192 x 5360 12288 x 5112 up to 90 fps 8192 x 4608 8192 x 4320 8192 x 3408 up to 170 fps 5840 x 2680 4096 x 2680 4096 x 2304 4096 x 2160 4096 x 1704
Video Output	SDI/BNC 4096 x 2160 at 25/24.00/30.00/29.97/50/59.94/60.00/23.98 fps 1920 x 1080p at 59.94/60.00/23.98/24.00/25/29.97/30.00/50 fps 1920 x 1080i at 59.94/60.00/50 fps
Fast-/Slow-Motion Support	No
Built-In Microphone	Stereo

Interface

Media/Memory Card Slot	No
Internal Storage	8 TB
Video I/O	2x BNC (12G-SDI) Output
Audio I/O	2x XLR 3-Pin Mic/Line/AES/EBU Selectable Input (+48 V Phantom Power) 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O	1x LEMO 8-Pin Input
Other I/O	1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet) 1x LEMO 7-Pin 1x Fischer 3-Pin 1x USB-C Viewfinder Output 2x USB-C Control/Data/Monitor
Wireless	Bluetooth
Mobile App Compatible	Yes: Android & iOS
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type

Primary Monitor: Articulating 5" Touchscreen OLED

Power

Battery

B-Mount

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C at 0 to 90% Humidity

General

Tripod Mount	5x 3/8"-16 Female (Bottom) 4x 1/4"-20 Female (Bottom)
Accessory Mounting Thread	3x 1/4"-20 on Camera Body 4x 3/8"-16 on Camera Body
Netflix Approved	Yes
Dimensions (W x H x D)	10.15 x 6 x 6" / 25.78 x 15.2 x 15.2 cm
Weight	8.72 lb / 3.96 kg (Body Only)
