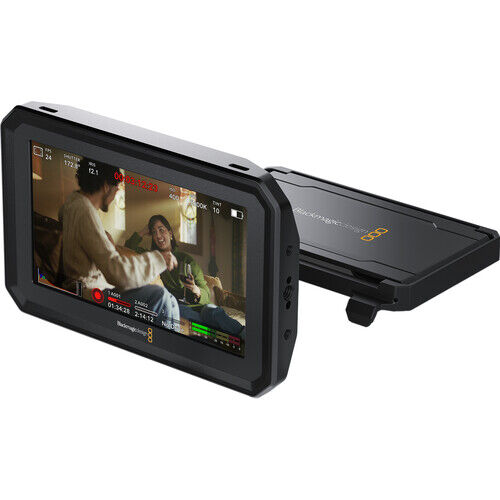

Blackmagic Design PYXIS Monitor
Items Included
- Blackmagic Design PYXIS Monitor
- Clip-On Sunshade
- Limited 1-Year Manufacturer Warranty
Key Features
- 5" HDR Touchscreen Monitor
- 1500 cd/m² Brightness, HDR Support
- Multiple 1/4"-20 & M4 Mounting Points
- 1920 x 1080 Native Resolution
- Three Assignable Function Buttons
- Clip-On Sunshade Included
Constructed from durable machined metal, the PYXIS Monitor is built for professional applications. The versatile monitor can be employed as an assist station, allowing your crew to easily monitor shots from any position on the set, even when bright sunlight surrounds your area, as the monitor's 5" LCD touchscreen features 1500 cd/m² brightness that ensures clear visibility. The removable sunshade offers added protection and convenience. A bright tally light is visible from a distance during recording, and the monitor includes three customizable buttons for quick access to features like zebra, focus assist, and false color, designed for easy tactile navigation.

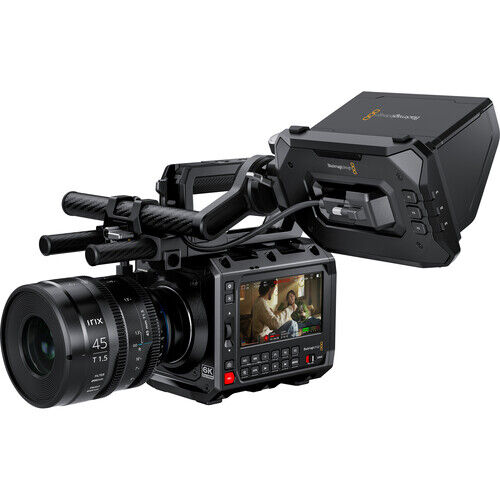

A single USB-C cable that transmits video, power, and camera control connects the monitor to your camera, while locking screws at both ends ensure a secure connection. The HDR touchscreen allows users to control all camera functions directly from the monitor, including access to Blackmagic PYXIS menus, settings, metadata, and digital slate information. Custom 3D LUTs can also be loaded for advanced cinematic workflows. Designed for flexible mounting, the Blackmagic PYXIS Monitor supports industry-standard 1/4"-20 mounting and works seamlessly with Blackmagic PYXIS cameras outfitted with accessories like rails and cages. The single USB connection allows for off-camera mounting on other accessories, such as cranes or gimbals, facilitating full monitoring and camera control even when the camera is not within reach.
NOTE: The PYXIS Monitor is also compatible with the Blackmagic Micro Studio Camera 4K G2 camera when using firmware version 9.6 and above.
Blackmagic Design PYXIS Monitor Specs
Key Specs
| Panel Type |
LCD |
| Display Size |
5.0" / 12.7 cm |
| Screen Resolution |
1920 x 1080 |
| Image Controls |
False Color, Focus Assist, Screen Markers, Zebra |
| Inputs/Outputs |
1x USB-C Camera Input |
Display
| Panel Type |
LCD |
| Display Size |
5.0" / 12.7 cm |
| Screen Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Touchscreen |
Yes |
| Maximum Brightness |
1500 nits / cd/m2 |
| Pixels Per Inch (ppi) |
440 ppi |
| Image Controls |
False Color, Focus Assist, Screen Markers, Zebra |
Inputs / Outputs
| Inputs/Outputs |
1x USB-C Camera Input |
| Video Format |
USB |
General
| Tripod/Accessory Mounting |
Bottom |
| Material of Construction |
Metal |
(CINEURSABBAM)
| SKU | CINEURSABBAM |
| Barcode # | 9338716009453 |
| Brand | Blackmagic Design |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.650m |
| Shipping Length | 0.350m |
