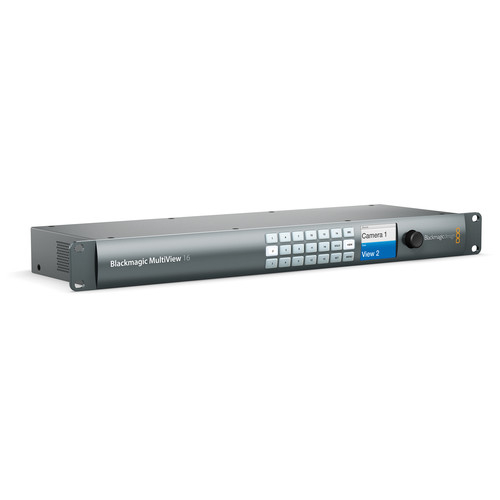

Blackmagic Design MultiView 16

$2,695.00
Sold Out

or 4 payments of $673.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design MultiView 16
  • Software QR Code
  • Limited 1-Year Manufacturer Warranty

Key Features

  • 16 x 6G-SDI Inputs with Loop Outputs
  • 1 x HDMI, 4 x SDI Multiview Outputs
  • Supports SD, HD, Ultra HD 4K, DCI 4K
  • 2 x 2, 3 x 3, 4 x 4 Multiview Grids
  • Built-In LCD with Spin Knob Control
  • Push Buttons on Front Panel
  • Ethernet for Remote Control
  • 1 RU Machined Aluminum Chassis
  • Built-In Multi-Voltage Power Supply

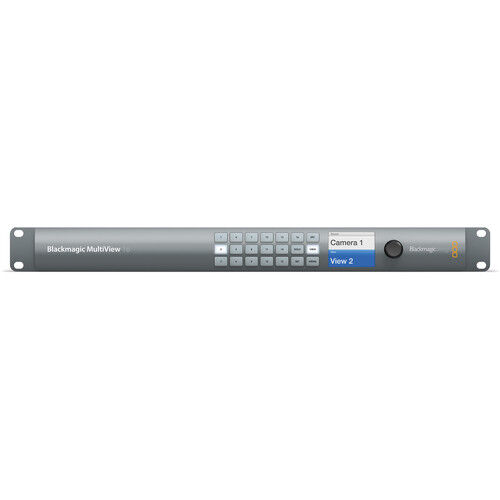

Housed in a 1 RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 100 to 240 VAC.

Blackmagic Design MultiView 16 Specs

Key Specs

Inputs

16 x BNC (3G-SDI / 6G-SDI / HD-SDI)

Embedded Audio

SDI

Outputs

16x BNC (6G-SDI / HD-SDI / SD-SDI, Looping)
2x BNC (6G-SDI)
2x BNC (HD-SDI)
1x HDMI

Video Format

SDI (10-Bit 4:2:2 YUV, RGB)
4096 x 2160: 24 fps
3840 x 2160: 24/25/23.98/29.97/30 fps
2048 x 1080PsF: 24/25/23.98 fps
2048 x 1080: 24/25/23.98 fps
1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps
1920 x 1080PsF: 24/25/23.98/29.97/30 fps
1920 x 1080i: 59.94/60/50 fps
1280 x 720p: 59.94/60/50 fps

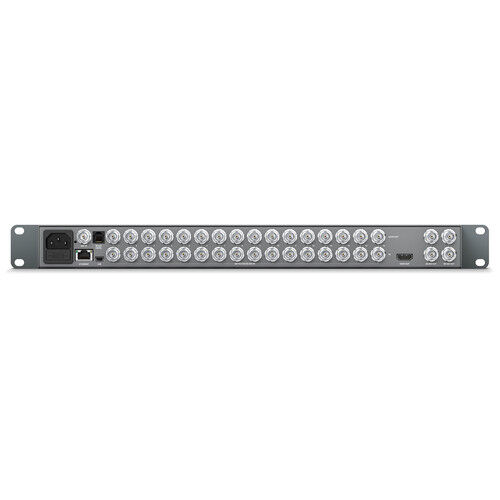

Interfaces

Inputs

16 x BNC (3G-SDI / 6G-SDI / HD-SDI)

Embedded Audio

SDI

Outputs

16x BNC (6G-SDI / HD-SDI / SD-SDI, Looping)
2x BNC (6G-SDI)
2x BNC (HD-SDI)
1x HDMI

Other I/O

1x RJ45 (RS-422)
1x RJ45 (10/100 Mbps Ethernet)
1x Mini-USB 2.0

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/425M-B
ITU -R BT.601/BT.656

Reclocking

Yes

HDR Support

No

HDCP Support

Yes

EDID Support

Yes

OS Compatibility

macOS 10.15 to 11.1 or Later
Windows 10 (64-Bit Only)

Transmission

Video Format

SDI (10-Bit 4:2:2 YUV, RGB)
4096 x 2160: 24 fps
3840 x 2160: 24/25/23.98/29.97/30 fps
2048 x 1080PsF: 24/25/23.98 fps
2048 x 1080: 24/25/23.98 fps
1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps
1920 x 1080PsF: 24/25/23.98/29.97/30 fps
1920 x 1080i: 59.94/60/50 fps
1280 x 720p: 59.94/60/50 fps

Maximum Multiple Display Configuration

4 x 4

Maximum Sampling Rate

48 kHz / 24-Bit

Maximum Data Rate

6 Gb/s

Power

Power I/O

1x IEC C14 Input

Power Consumption

90 to 240 VAC (45 W)

General

Rack Form Factor

1 U

Certifications

FCC Class A

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

Material of Construction

Metal

Dimensions

19.0 x 6.0 x 1.7" / 482.6 x 152.4 x 43.2 mm

Weight

5.07 lb / 2.3 kg

(HDL-MULTIP6G16)

SKU HDL-MULTIP6G16
Barcode # 9338716002850
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
